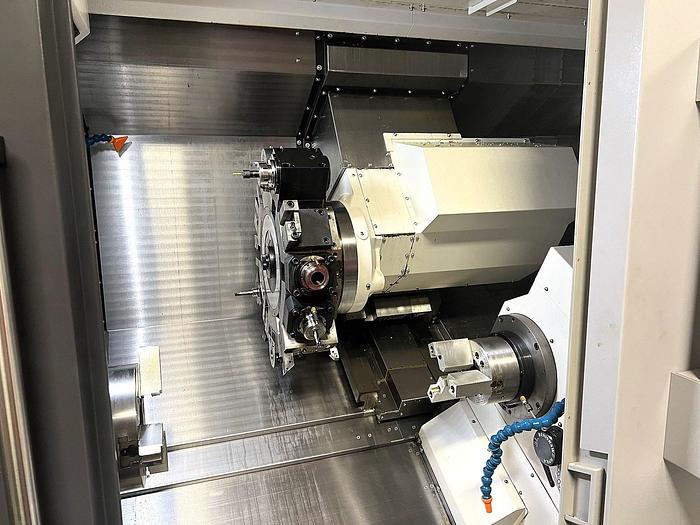

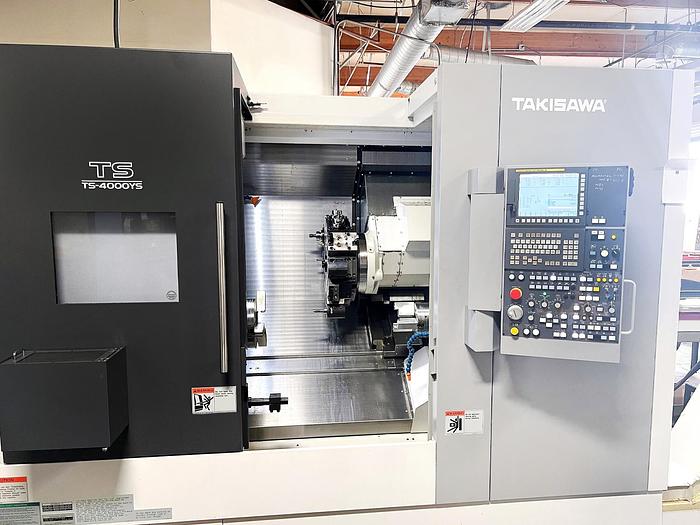

2019 TAKISAWA TS-4000YS Twin Spindle Turning Center ***Very Low Hours***

Excellent Condition Low Hours

6,000 RPM Sub Spindle with C Axis

4,200 RPM Main Spindle with C Axis

A2-8 Spindle

Flat 140MM Sub Spindle Nose

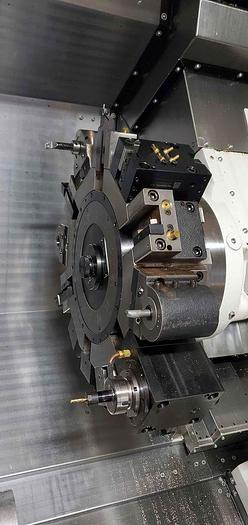

12-Station Turret

10" and 6" Chuck

Takisawa Tool Setter

Takisawa Parts Catcher

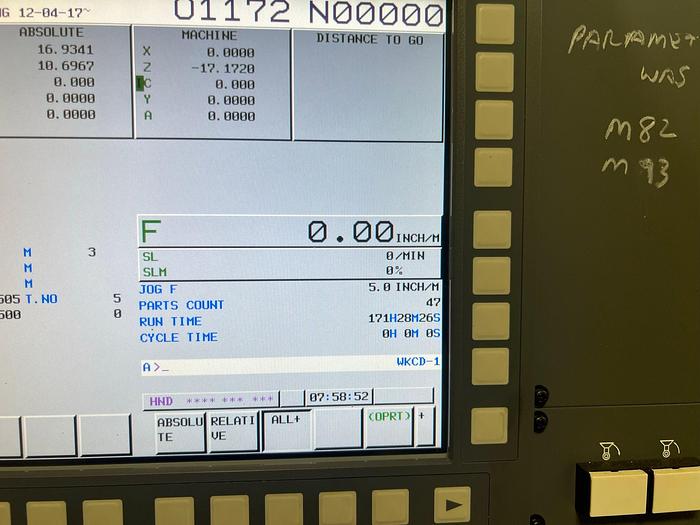

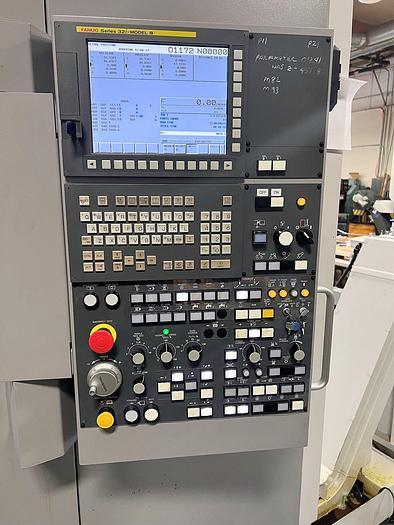

Fanuc 32i-B Control

Bar Feeder Interface

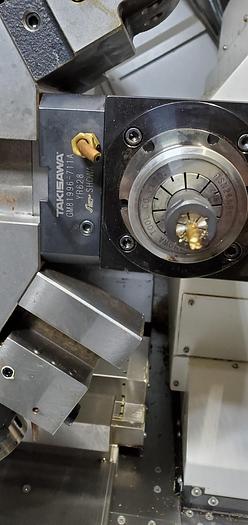

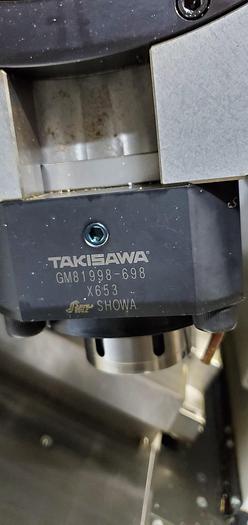

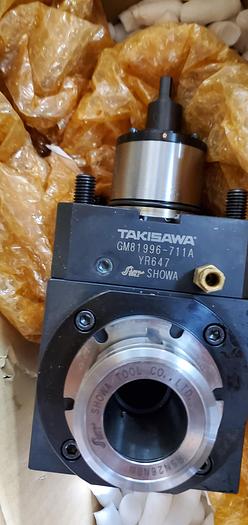

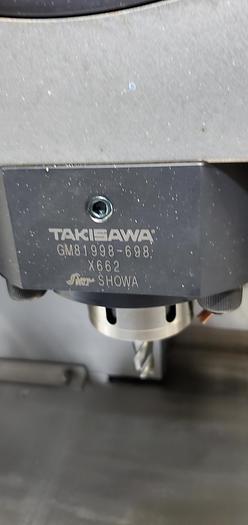

2 X Axis Milling Holder

2 Z Axis Milling Holder

Chip Conveyor

14.56" Max. Turning Diameter

29.527" Max. Turning Length

3.228" Bar Capacity

Bar Capacity: 3.22"Chuck Size: 10"Sub Spindle: 6"Main Spindle Speed: 4,200 RPMSpindle Motor: 30 HPX Axis Travel: 10.51"Z Axis Travel: 33.07"Y-Axis Travels: 50 - 70mmLive Tool: 6,000RPMRapid Rate Z Axis: 1,181 IPMTurret Tools: 12 StationRapid Rate X Axis: 1,181 IPMMax Turning Dia: 11.5"Max Turning Length: 29.53"Max Swing: 23.62"Spindle Nose: A2-8Dimensions: 118" x 85" x 91"Weight: 14,080 LBS

Options:

Fanuc 32i-B ControlChip ConveyorTool PresetterParts CatcherLive ToolingSub SpindleY AxisBar Feeder Interface(2) Cut Off Tool Holder(3) O.D. Toold Holder, (1) O.D. Double Tool Holder(4) Round Tool Holder, (4) Boring Bar Bushings(2) X-Axis Milling Holder, (2) Z-Axis Milling HolderChip Conveyor (Side Discharge/Hinge Type)
