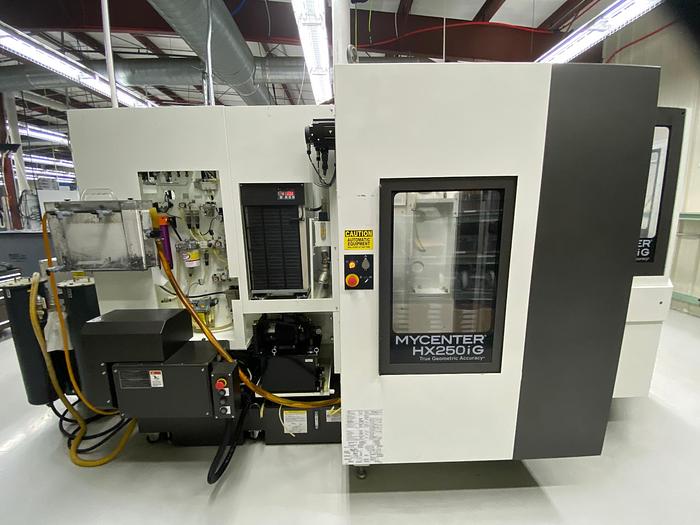

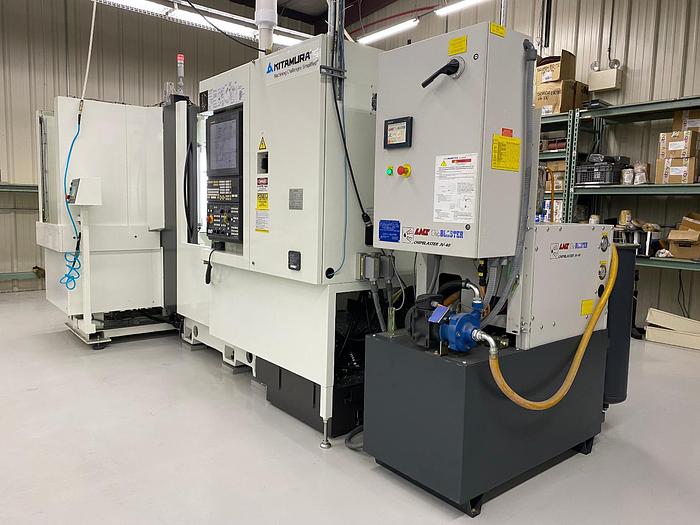

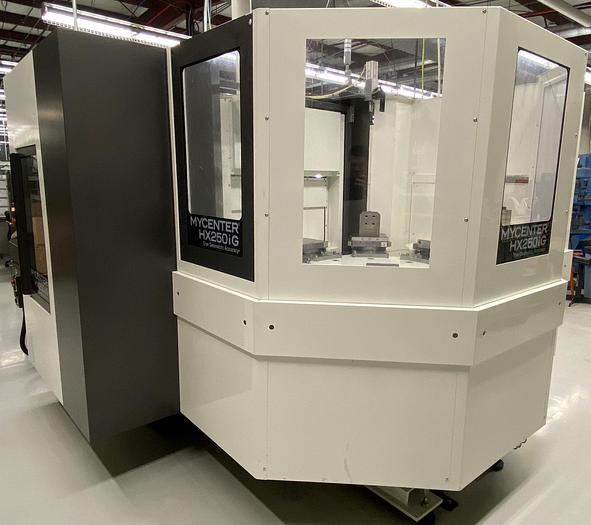

2020 KITAMURA Mycenter HX250IG 4-Axis Horizontal Machining Center With 10 Station Pallet Pool

Sold

2020 KITAMURA Mycenter HX250IG 4-Axis Horizontal Machining Center With 10 Station Pallet Pool

Description

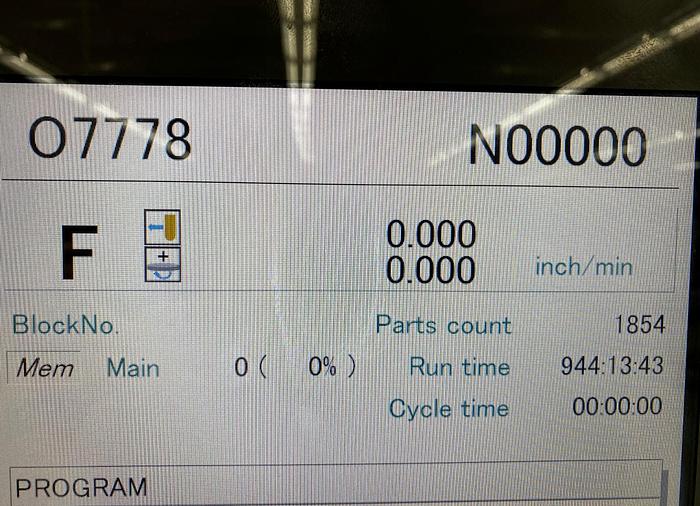

Excellent Condition 944 Hours

15,000 RPM Dual Contact Spindle

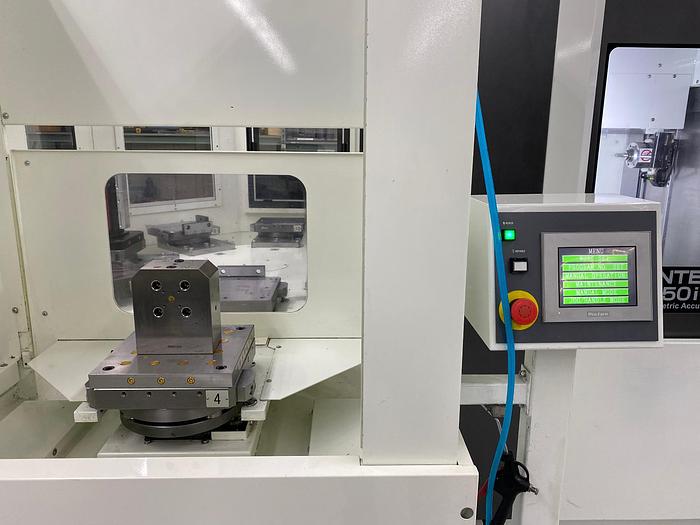

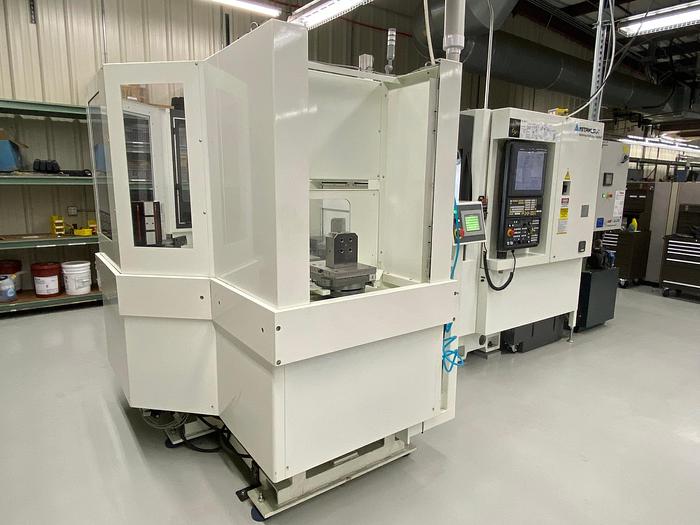

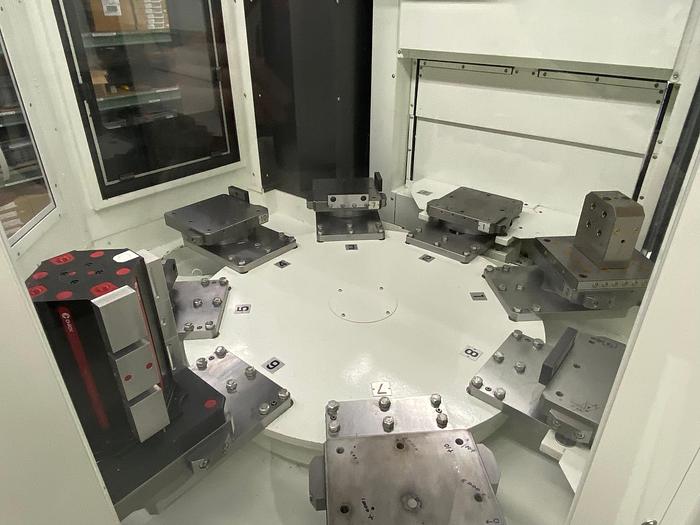

10-Station Automatic Pallet Changer System

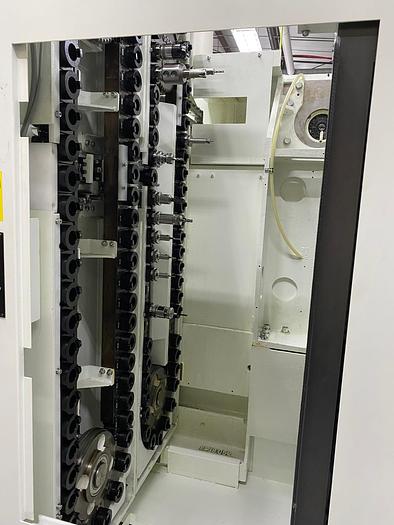

102 Tool Automatic Tool Changer

BT30 NST Spindle Taper

Through Spindle Coolant Ready

Arumatik-Mi Control

12.0" X-Axis

12.0" Y-Axis

13.0" Z-Axis

10"x10" Pallet size

13.8" Diameter, 15.7" High Work Envelope



10 Station Automatic Pallet Changer (adds 7.5KVA)

Tool Presetter Package E which includes:

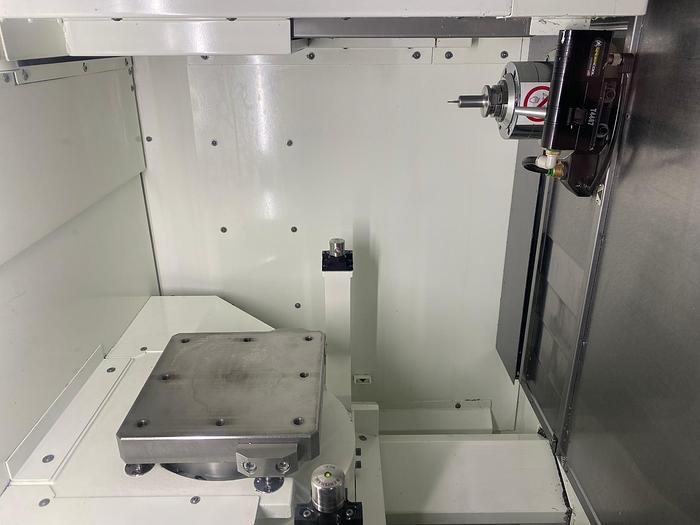

Renishaw NC-4 Laser Probe (2 Pieces Separate) with mounting bracket

Automatic Tool Length & Diameter Measurement

Automatic Tool Length & Diameter Offset Compensation

Cutter Breakage Detection

Tool Life Control (Tool Life Management)

Spare Tool Selection


Renishaw OMP400 Probe Includes:

Automatic Centering

Automatic Work Coordinate

Offset Compensation Through the Measurement Standard Software Pack

Air through the spindle installed

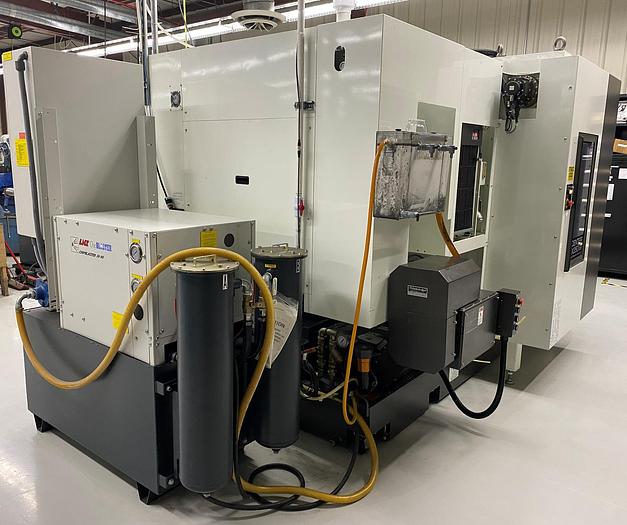

Spider Cool programmable coolant system installed

Memory, Total 2560 Meters (1MB)

Tool Offset, Total 999Pcs

Work Coordinate Offset, Total 306 Sets


Standard Features

Contact Surfaces are Extensively Hand Scraped

Highest Grade Meehanite Cast Iron Construction

Double Roller Linear Guideway System

Full 4th Axis Rotary Table with Heidenhain rotary encoder

Scraper Type Chip Conveyor with 100 Micron Filtration

3-Step Cycle Finish Lamp

Large 19" Operation Panel / Screen, Swings up to 90 degrees

Tool Monitor / Adaptive Control

Maintenance Support Function

4 Axes Simultaneous Control - Expandable to 5 axes in the field

Anywhere-Remote (E-Mail Status Updates)

SSS (Super Smooth Surface) Control

Up to 8190 Block Look-Ahead

Up to 270m/min Feed with 1 mm/block, 4,500 Blocks/sec

1280 Meters Memory (0.5MB)

8GB Data Server

USB Memory Server


Specifications

ManufacturerKITAMURA
ModelMycenter HX250IG 4-Axis Horizontal Machining Center With 10 Station Pallet Pool
Year2020
ConditionUsed
