2022 ZEISS O-Inspect 5.4.3 DotScan DCC Coordinate Measuring Machine with Rotary Table ***Brand New***

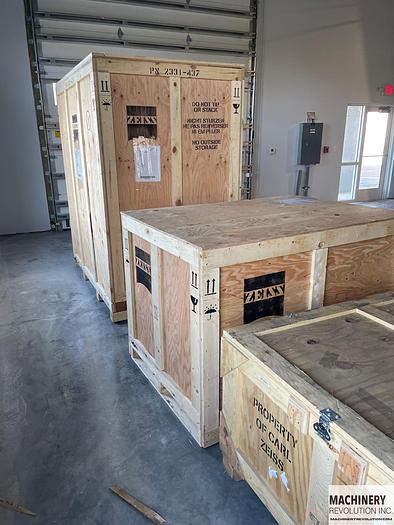

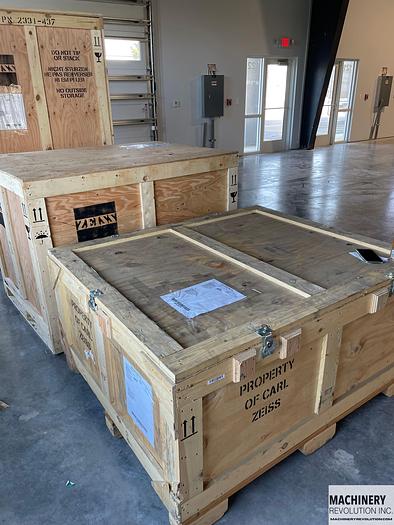

Excellent Condition Brand New Never Installed in Original Crate

 Measuring Range

19.7" X-Axis Travel

15.7" Y-Axis Travel

11.8" Z-Axis Travel

 Calypso Basis Software with CNC + CURVE + Vast Probing, BasLic, Dongle for O-Inspect

Calypso Pi Web

Measuring Room illumination

White light sensor DotScan 10mm Option

DotScan O-I 543 Option

RT-RB-10-1 Rotary Table

 Vast XXT TL3 ID 18P Probe

 MSR O-Inspect XXT threefold, H=142,5mm

 9 Piece Stylus Kit

 Performance Workstation with Windows 10, Performance Workstation Bundle, including computer, software, printer

• Linear measuring error, per ISO 10360-2:2009, with VAST XXT:

E0 XY (3D) = (1.9 + L/250) µm, MPE_P = 1.9 µm

• Scanning performance, per ISO 10360-4:2000, with VAST XXT:

MPE_THP = 2.7 µm in 55 sec

• Linear measuring error, per ISO 10360-7:2011, for DISCOVERY.V12 zoom

lens: EB XY (2D) = (1.7 + L/250)µm

• Admissible temperature range for specifications 18-22°C

• Integrated transmitted-light system

• Pre-wired for DotScan Sensor compatibility.

• Standard numerical control panel with movable support

• 25 mm diameter calibration sphere and holder

• Standard power cord (623534-3079-000)

• Acceptance documents, user manuals

Optical Sensor

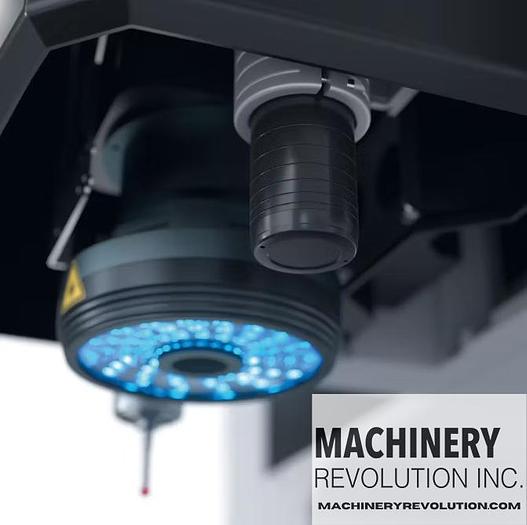

ZEISS Discovery Optical zoom sensor comprised of:

• CCD camera integrated in measuring machine

• 12x Discovery zoom lens

• 8-sector ring light, with high-power red and blue LEDs

• Dual color, coaxial transmitted-light system for zoom lens

• Calypso image analysis option

• Reference template for Discovery zoom Sensor incl. calibration of template with

certificate

Scanning Sensor

• 30mm long, 5 mm diameter reference stylus

• VAST XXT probe rack with 3 storage location
