2017 Makino A61NX-5E 5-Axis Horizontal Machining Center with FMS Cell
Sold
2017 Makino A61NX-5E 5-Axis Horizontal Machining Center with FMS Cell
Description
5-Axis
24,000 RPM HSK A63 Spindle
313 Tool Changer
15.75" x 15.75" Pallets
1,000 PSI Through Spindle Coolant
Approximately 2,400 Hours
Specifications
| Manufacturer | Makino |
| Model | A61NX-5E 5-Axis Horizontal Machining Center with FMS Cell |
| Year | 2017 |
| Condition | Used |
| Travels | X-Axis: 28.7" Y-Axis: 28.7" Z-Axis: 26.8" |

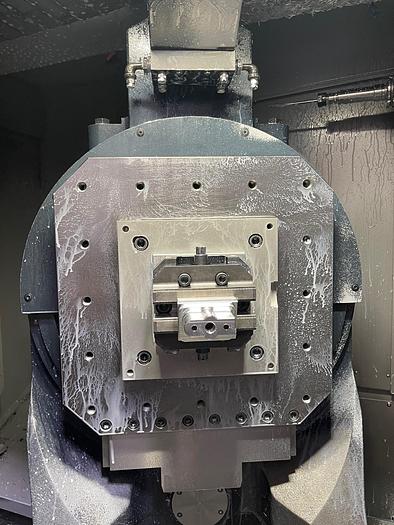

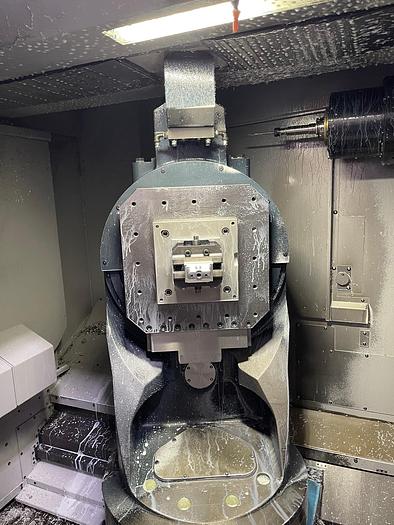

| Travels | B-Axis: 290° (-110° ~ +180°) Direct Drive C-Axis: 360° Direct Drive |

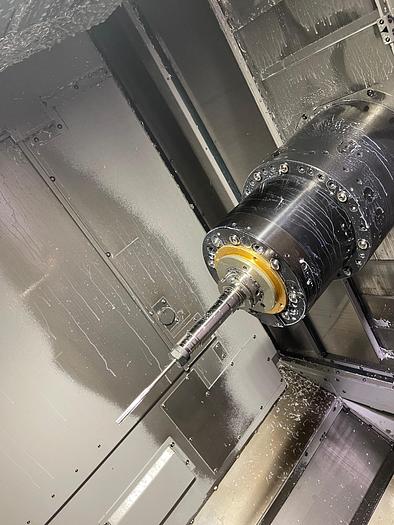

| Spindle Speed | 24,000 RPM |
| Spindle Taper | HSK A63 |
| Pallet Size | 15.75" x 15.75" |
| Tool Changer | 313 |

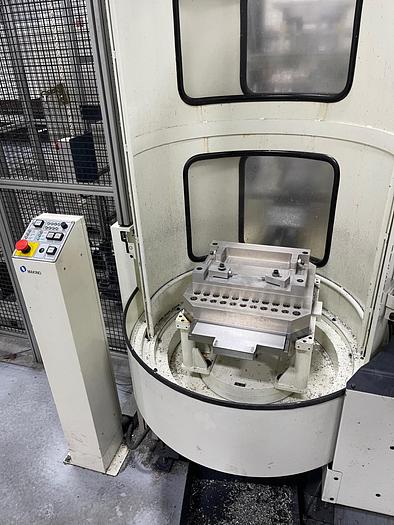

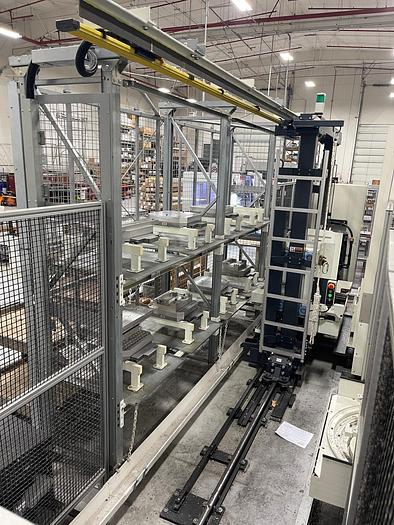

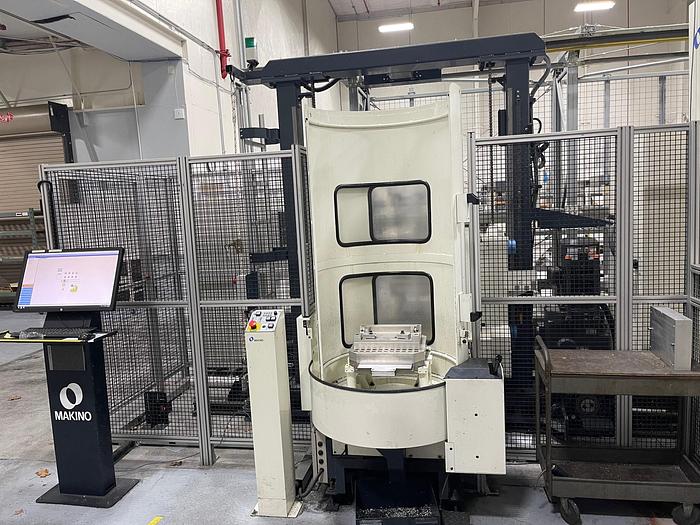

| Linear Pallet Pool System | -Rail Guided Vehicle -Pallet Stocker -Guide Rail and Trolley -Floor Rail and Optical Communications -RGV Controller -Worksetting Station -PC Based System Controller -Guard Fence -Pallet Stocker (4x2 Level) -Load/Unload Station |
| Equipped With | -Pro 5 CNC Control -MP Max Software -Linear Pallet Pool System w/ 8 Pallets and Load/Unload Station -MMC2 Upgrade to 4-Spigot Pallet Configuration (x8 Pallets) -1,000PSI High Pressure Through Spindle Coolant |
| Features and Options | -Super GI.4 Control -Structural Aerospace Package -24K RPM Spindle -HSK A63 Spindle Interface -313 Tool ATC -1000 PSI Thru SPindle Coolant & Air -Chip Conveyor BDW1030 -Center Trough Chip Conveyor -Tool Center Point Control for 5-Axis Machining -High Speed Smooth TCP -3-Dimensional Cutter Compensation -Rotary Table Dynamic Fixture Offset -60 Hz/460V |
| Features and Options | -Rigid Tap -Y-Axis Stroke 730mm Spec. High Column -B,C-Axis Rotary Table -Scale Feedback X, Y, Z-Axis 0.05 Micron -Feed Axis Acceleration X/Y = 1G/1G -Automatic Greese Supply Device -Pallet Changer -Safety Cover -APC Door Interlock -Random Pallet Selection -Pallet Clamp Confirmation Function -WHP 400mm Square (2 Pallets) -Eight Nozzle Coolant -Overhead Shower Coolant System (14 Nozzles) -Terrace Washing Coolant -Water Soluble Coolant _Automatic Splash Guard -Operator Door Lock -250mm Joint Mount for Mist Collector -Air Dryer -Automatic Fire Extinguisher Interface -Portable Manual Pulse Generator w/ Handle Enable Button -Signal Light 3-Layer -Operator Step -Splash Guard -UL Electrical Specification -Fast Ethernet Interface -Workpiece Setting Function (Including Tilting Working Plane Indexing Command) -Linear Interpolation Type Positioning -Inverse Time Function -1000 Registered Programs -Data Center Storage -Tool Offsets Pairs (99) -Tool Offset Memory Type A -Additional 48 Work Offsets -Custom Macros (600 Common Variables) -Full set of manuals |
