2013 DOOSAN MYNX 6500/50
Sold
2013 DOOSAN MYNX 6500/50
Description

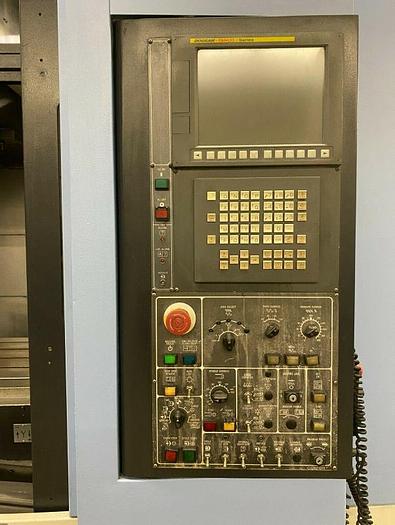

Doosan Fanuc Oi-series CNC Control
Box Way Construction
Through Spindle Coolant
USB & PCMCIA Interface
8,000 RPM Precision Spindle
1417 Inch Per Min Rapids
MPG Control
Rigid Tapping
Spindle Orientation
30 Automatic high-speed tool changer

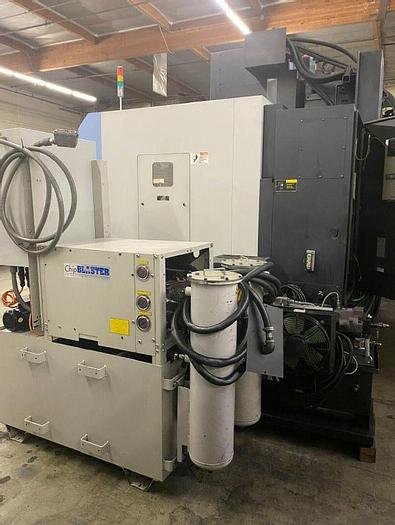

Spindle Chiller
High-Pressure Coolant System
Chip Blaster Unit
Chip Conveyor
Leveling Pads
***Machine Only Rotary Not Included***
Specifications
| Manufacturer | DOOSAN |
| Model | MYNX 6500/50 |
| Year | 2013 |
| Condition | Used |
| Serial Number | MV0049-001216 |
| Control | Doosan Fanuc Oi-series CNC Control |
| # axis | 4 |
| Table Size | 51.2″ X 26.37″ |
| Table Capacity | 2200 pounds |
| X-Axis Travel | 50.7 inches |
| Y-Axis Travel | 26.1 inches |
| Spindle Speed | 8,000 RPM |
| Spindle Taper | 50 |
| Main Motor | 35 HP |
| Tool Changer Capacity | 30 |
| Coolant Thru Spindle | yes |
| Dimensions | 140" x 100" x 110" High |
| Tool Change Time | 1.3 Seconds |
| Max Spindle Speed For Tapping (RPM) | 8000 |
| Weight | 16500 pounds |
