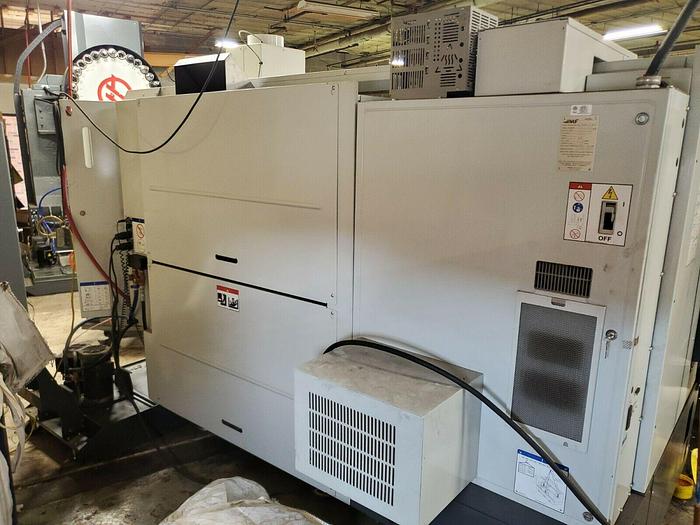

2016 HAAS ST-35 CNC Turning Center 4" Bar, 15" Chuck ***Only 500 Cutting Hours***
Sold
2016 HAAS ST-35 CNC Turning Center 4" Bar, 15" Chuck ***Only 500 Cutting Hours***
Description
Excellent Condition Low Hours
15" 3 Jaw Samchully Chuck
3,200 RPM Spindle
2 Speed Gearbox
Programmable Tailstock
High-Pressure Coolant System 300 PSI Through Tool Coolant
Tool Pre-Setter
Rigid Tapping
Macros
Visual Part Programming
Ethernet/ 1 GB Memory
Coolant Mist Exhaust System
Ac Cooler for Electrical Cabinet
40HP Motor
55 Gallon Coolant Tank and High Pressure Pump

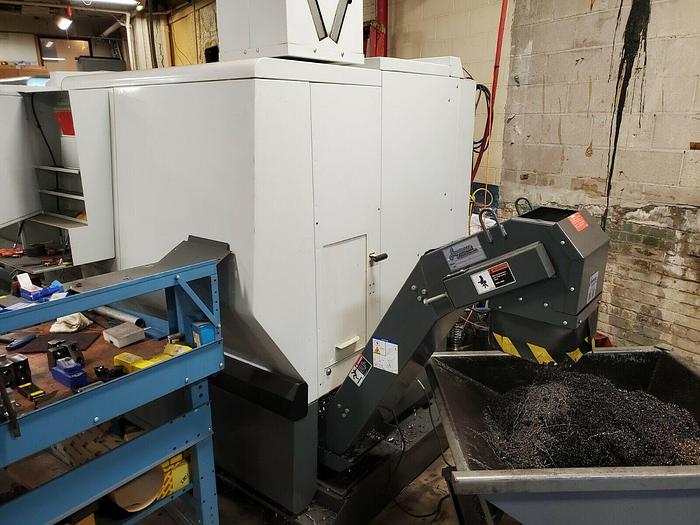

Chip Conveyor
Specifications
| Manufacturer | HAAS |
| Model | ST-35 CNC Turning Center 4" Bar, 15" Chuck ***Only 500 Cutting Hours*** |
| Year | 2016 |
| Condition | Used |
| Chuck Size | 15" |
| Spindle Speed | 3,200 RPM |
| Max Swing | 21" |
| Max Diameter | 15" |
| Max Cutting Length | 32.5" |
| Spindle Bore | 4.62" |
| Bar Capacity | 4" |
| Distance Between Centers | 32.5" |
| X-Axis Travel | 9.4" |
| Z-Axis Travel | 52.5" |
| Turret Stations | 12 Stations BOT |
| Tailstock | Programmable Tailstock |
| Equipped With: | 2 Speed Gearbox / High-Pressure Coolant System 300 PSI Through Tool Coolant / Tool Pre-Setter / Rigid Tapping / Macros / Visual Part Programming / Ethernet/ 1 GB Memory / Coolant Mist Exhaust System / Ac Cooler for Electrical Cabinet / 40HP Motor / 55 Gallon Coolant Tank and High Pressure Pump / Chip Conveyor |
