2011 KITAMURA MYCENTER HX1000i

Sold

2011 KITAMURA MYCENTER HX1000i

Description

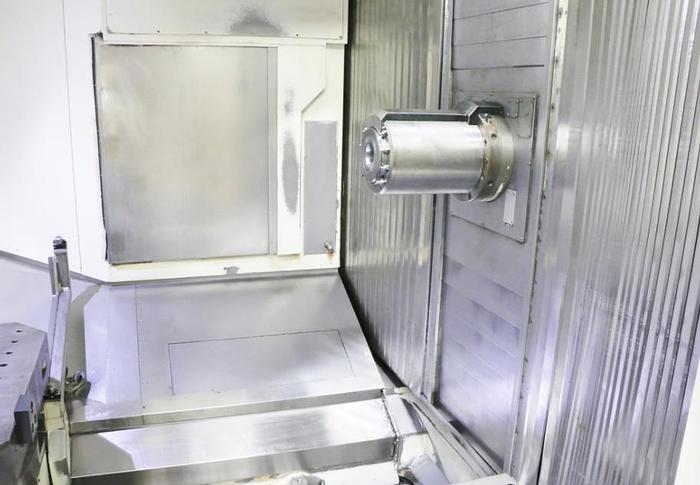

This Kitamura MyCenter HX1000i horizontal machining center features full 4th axis pallet contouring and 5th axis. This milling machine comes equipped with 150 ATC, high pressure through spindle coolant, and Renishaw probing system.


EQUIPPED WITH:

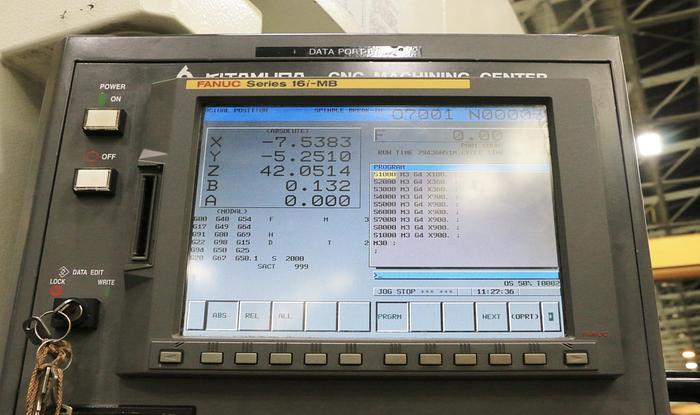

FANUC 16i-MB CONTROL

897 FOOT-POUNDS OF TORQUE

HIGH-PRESSURE THROUGH-SPINDLE COOLANT (1,000 PSI)

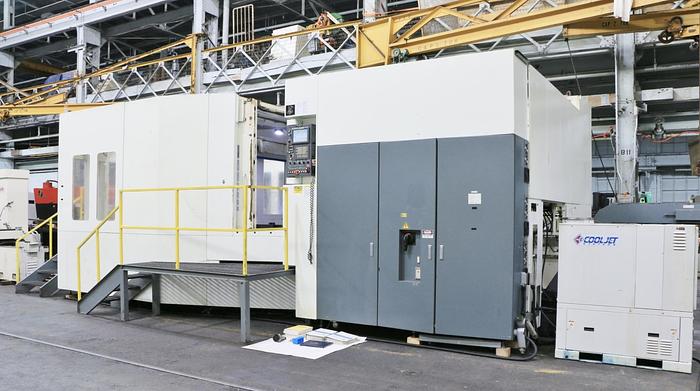

COOLJET HIGH-PRESSURE COOLANT SYSTEM

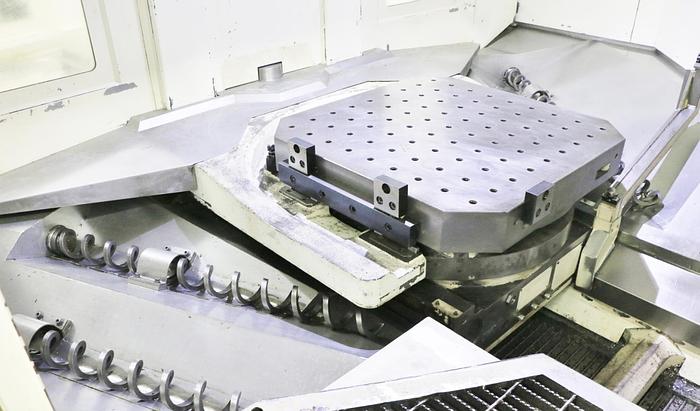

FULL 4TH AXIS PALLET CONTOURING

5TH AXIS DRIVE & WIRING

RENISHAW PROBING SYSTEM (OMP 400 SPINDLE PROBE)

150 TOOL POSITIONS

CHIP CONVEYOR

GEARBOX (4-STEP, GEAR DRIVEN)

BOX WAY

LINEAR SCALE FEEDBACK (ALL AXES)

TWIN BALL SCREWS & TWIN SERVO MOTORS

AI NANO HIGH PRECISION CONTOUR CONTROL (500 BLOCK LOOK AHEAD)

NURBS Interpolation

TOOL RETRACT & RECOVER

PROGRAM RESTART

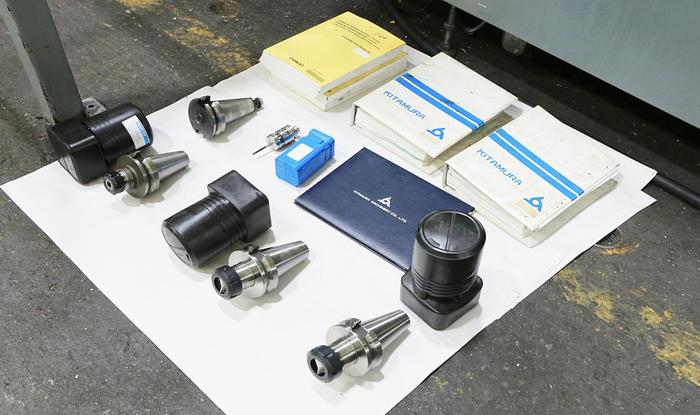

APPROX (60) BT50 TOOL HOLDERS

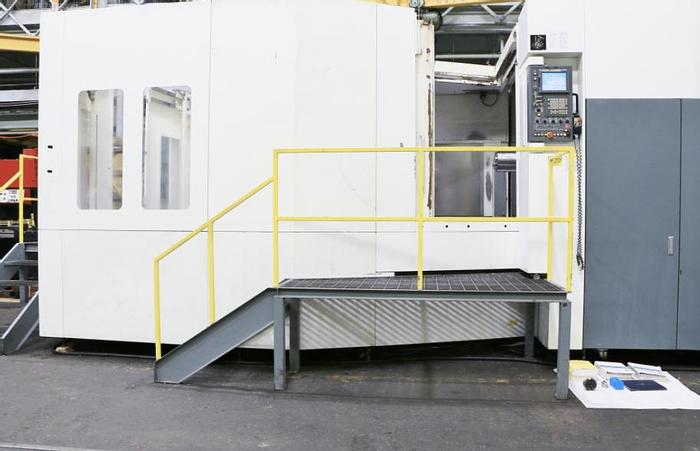

(2) HEAVY DUTY FIXED CUSTOM ENTRY PLATFORMS WITH HANDRAILS

** AS OF 02/2021, CUTTING TIME - 12,879 HOURS

** MACHINE CUT PRIMARILY ALUMINUM & STAINLESS

** REPLACEMENT COST OF SYSTEM, AS EQUIPPED - $1,500,000

** AVAILABLE FOR IMMEDIATE INSPECTION, PURCHASE & REMOVAL

** 2010 MYCENTER HX1000i ALSO AVAILABLE IN SAME FACILITY

** TSUDAKOMA RBA-500R ROTARY TABLE, TAILSTOCK & FIXTURE BASE AVAILABLE FOR A

SEPARATE OR PACKAGE PURCHASE. THIS ALLOWS FOR TABLE ON TABLE 5-AXIS

Specifications

ManufacturerKITAMURA
ModelMYCENTER HX1000i
Year2011
ConditionUsed
Pallet-w39.37"
Pallet-l39.37"
PALLET INDEXINGFULL 4TH
NUMBER OF PALLETS2
MAX WORKPIECE WEIGHT6,600 lb
X-AXIS TRAVEL80.31"
Y-AXIS TRAVEL51.97"
Z-AXIS TRAVEL53.94"
SPINDLE SPEED8,000 RPM
SPINDLE MOTOR40 hp
SPINDLE TAPERBT 50
TOOL POSITIONS (ATC)150
RAPID TRAVERSE RATE1,417 in/min.
CUTTING FEEDRATE1,417 in/min.
Dimensions20' X 35'
