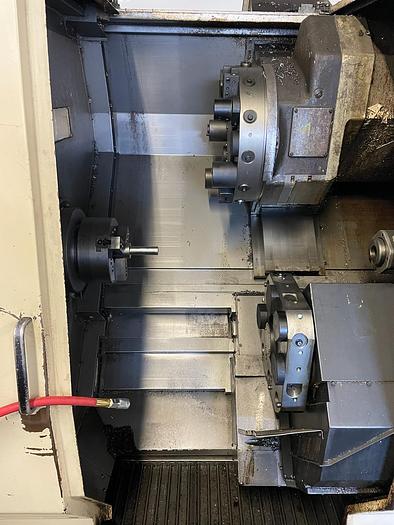

OKUMA IMPACT LU 15-M Twin Turret Live Tooling CNC Lathe
Sold
OKUMA IMPACT LU 15-M Twin Turret Live Tooling CNC Lathe
Description
Twin Turret / Live Tooling
8" 3-Jaw Chuck
Spindle Speed: 4500 RPM
Programmable Tailstock
Chip conveyor
Mist Collector
Full C-Axis
Synchronous Tapping
Spindle Orientation
M-Axis Orientation
Hi-G Control / Animation
Okuma OSP7000L CNC Control
12 Position Upper & 8 Position Lower Turret
Spindle Bore: 3.15"
Milling 4,500 RPM
Specifications
| Manufacturer | OKUMA |
| Model | IMPACT LU 15-M Twin Turret Live Tooling CNC Lathe |
| Condition | Used |
| Chuck Size | 8" 3-Jaw Chuck |
| CNC Control | Okuma OSP7000L |
| Upper Turret | 12 Position |
| Lower Turret | 8 Position |
| Spindle Speed | 4,500 RPM |
| Maximum Turning Length | 23.62" |
| Swing Over Bed | 20.87" |
| Swing Over Carriage | 14.96" |
| Swing Over Cross Slide | 12.99" |
| Maximum Turning Diameter | 10.62" |
| X-Axis Travel (Upper/Lower) | 10.24"/5.51" |
| Z-Axis Travel (Upper/Lower) | 25.20"/24.21" |
| Spindle Bore Diameter | 3.15" |
