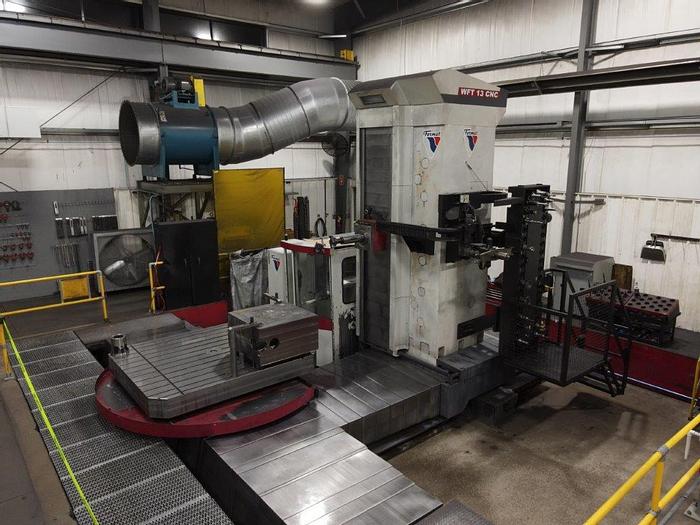

2012 FERMAT WFT 13 Horizontal Boring Mill

Sold

2012 FERMAT WFT 13 Horizontal Boring Mill

Description

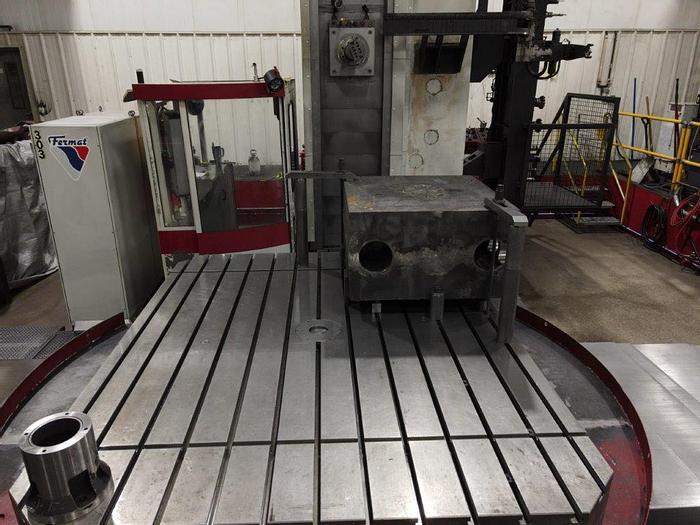

Rotary Table Size 94.4" X 78.7"

Table Capacity 40,000 LBS.

Distance From Table Center To Spindle Nose 27.6" - 106.3"

Distance From Table Top To Spindle Center 0 - 98.4"

Automatic Tool Changer Capacity 40 Tools

Spindle Diameter 6.0"

Spindle Taper CT 50

Spindle Speed 3000 RPM

Main Motor 50 HP

Table Indexing .001 N/C Rotary Table

X - Axis Travel 157.4"

Y - Axis Travel 98.4"

W - Axis Travel 28.7"

Z - Axis Travel 66.9"


Specifications

ManufacturerFERMAT
ModelWFT 13 Horizontal Boring Mill
Year2012
ConditionUsed

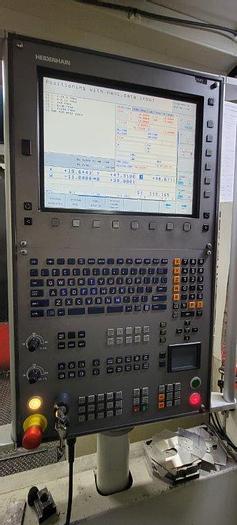

ControlHEIDENHAIN 530i 5 AXIS CNC CONTROL
Rotary Table Size94.4" X 78.7"
Table Capacity40,000 LBS.
Distance From Table Center To Spindle Nose27.6" - 106.3"
Distance From Table Top To Spindle Center0 - 98.4"
Spindle Diameter6.0"
Spindle TaperCT 50
Spindle Speed3000 RPM
Main Motor50 HP
Table Indexing.001 N/C Rotary Table
X - Axis Travel157.4"
Y - Axis Travel98.4"
Z - Axis Travel66.9"
W - Axis Travel28.7"
Automatic Tool Changer Capacity40 Tools
Max Tool Length23.6''
Max Tool Dia.10.2''
Max.tool Weight55 LBS.
Machine Weight105,600 LBS.

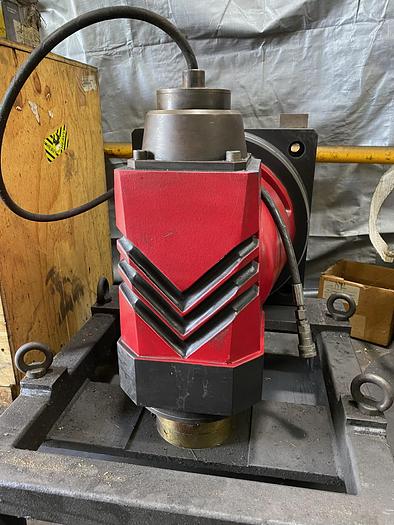

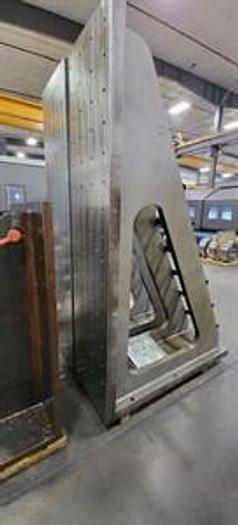

Equipped WithTHROUGH SPINDLE COOLANT AND FILTRATION SYSTEM / SPINDLE CHILLER / OPERATORS ENCLOSED WORKING AREA WITH INDEPENDENT MOTION PLATFORM / SCALES X,Y,Z, / INFARED PART PROBE / MNA / ETHERNET / SPINDLE QUILL ENTENSION / AIR BLAST WHILE MACHINING / CONVERSATIONAL CONTROL / (2) 24” X 100” ANGLE PLATES (ALUMINUM) / MANUAL INDEX RIGHT ANGLE HEAD ATTACHMENT
