Tsugami SX20 Swissturn with indexing, and sub spindle, CNC sliding head lathe
Sold
Tsugami SX20 Swissturn with indexing, and sub spindle, CNC sliding head lathe
Description
5 Axis
Maximum Bar Diameter: 20mm (3/4)
Tooling Sizes, Turning: 5/8" Square
Z2 Axis Travel, In & Out (Synch to Z1): 7.88"
Z1 Axis Travel: 8.21"
Speed Range of Main Spindle: 200 to 8000 Rpm
Cross spindle max speed 6,000 Rpm
Main Spindle Indexing: 5 Degree
FANUC AL-1

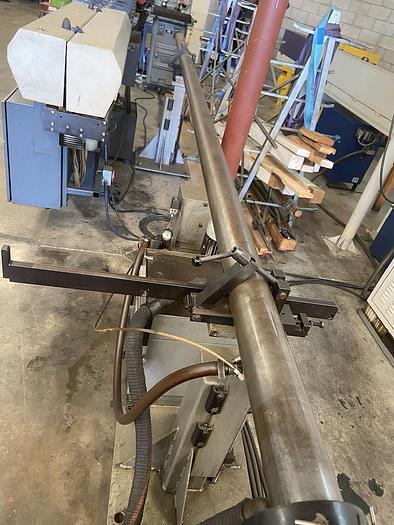

- bar feeder LNS hydro-bar
- parts catcher
- lubricating tank with pump
- Live guide-bushing
- 7 fixed and 3 live tool positions on main
- 4 positions on front working
- 3 positions on counter-operations
Specifications
| Manufacturer | Tsugami |
| Model | SX20 Swissturn with indexing, and sub spindle, CNC sliding head lathe |
| Condition | Used |
| axis | 5 |
| Maximum Bar Diameter | 20 mm (3/4) |
| Tooling Sizes, Turning | 5/8" Square |
| Z2 Axis Travel, In & Out (Synch to Z1) | 7.88" |
| Z1 Axis Travel | 8.21" |
| Speed Range of Main Spindle | 200 to 8000 Rpm |
| Cross spindle max speed | 6,000 RPM |
| Main Spindle Indexing | 5 Degree |
| Main Motor | 5 HP |
| Sub spindle max diameter | 3/4" 20 mm |
| sub spindle speed range | 200- 6,000 RPM |
| power rating | 2.0/2.9 HP |
| Approx. Dimensions | 72" x 46" x 67" H |
| approx. weight | 5,100 lbs. |
