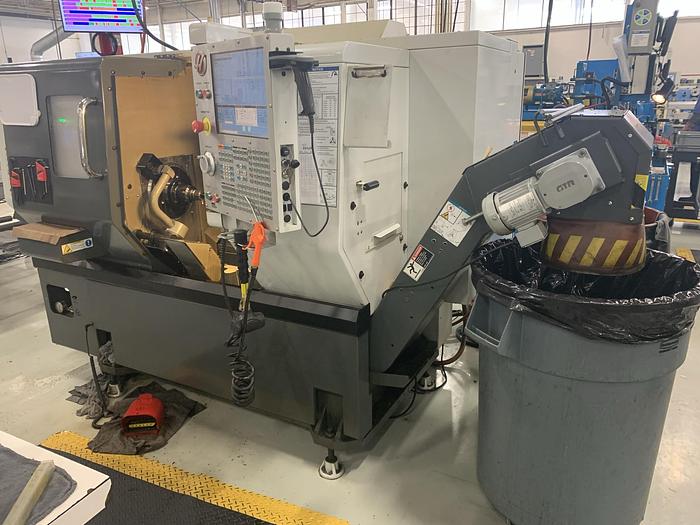

2013 HAAS ST-10Y CNC Turning Center with Live Tooling ***Only 805 Spindle Hours***

Sold

2013 HAAS ST-10Y CNC Turning Center with Live Tooling ***Only 805 Spindle Hours***

Description

6.5" Chuck

6,000 RPM

3,000 RPM Live Tooling

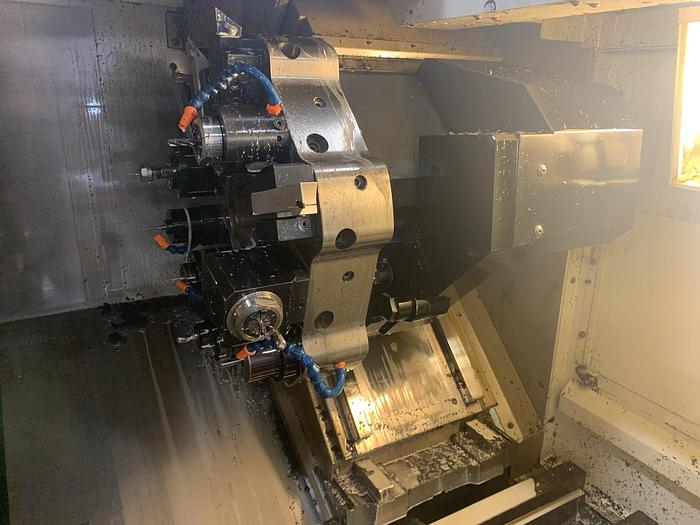

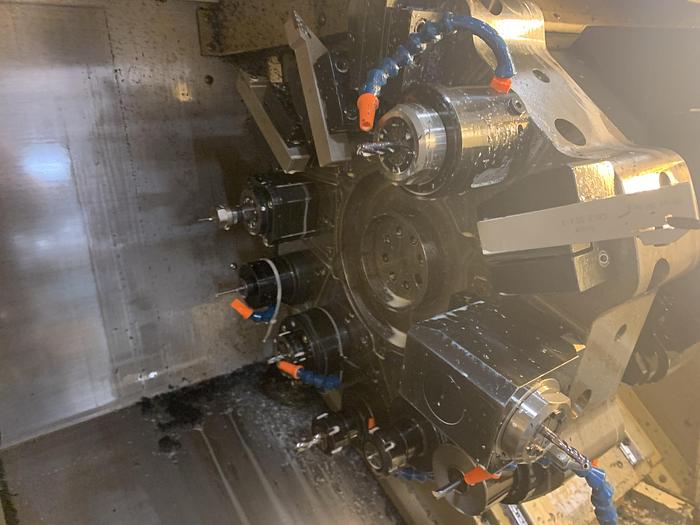

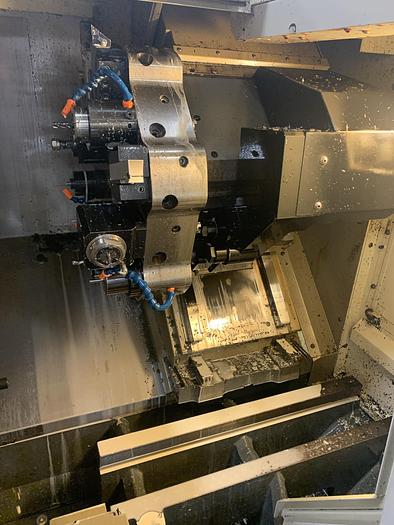

12 Station Turret

16.25" Max Swing

9" Max Cutting Diameter

14" Max Cutting Length

1.75" Bar Capacity

7.88" X Axis

± 2" Y Axis

14" Z Axis

Parts catcher

Tool Pre-Setter

3 Jaw Chuck / 5C Collet Fixture

Tooling including 1 Axial, 1 Radial

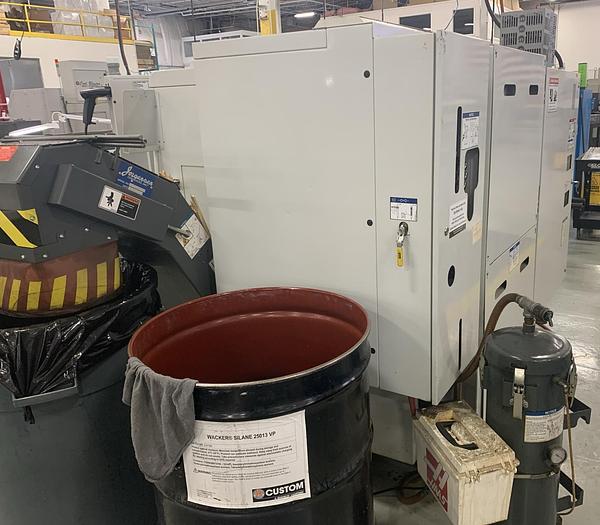

Chip Conveyor

High Pressure Coolant Tank and Pump

Specifications

ManufacturerHAAS
ModelST-10Y CNC Turning Center with Live Tooling ***Only 805 Spindle Hours***
Year2013
ConditionUsed
Chuck Size6.5"
Max Speed6000 RPM
Max Cutting Diameter9"
Bar Capacity1.75"
Max Part Swing16.25"
X Axis7.88"
Y Axis± 2"
Z Axis14"
Turret12 Stations
Max Rating15.0 HP
Equipped WithParts catcher / Tool Pre-Setter / Chip Conveyor / High Pressure Coolant Tank and Pump / 3 Jaw Chuck / 5C Collet Fixture / Tooling including 1 Axial, 1 Radial
