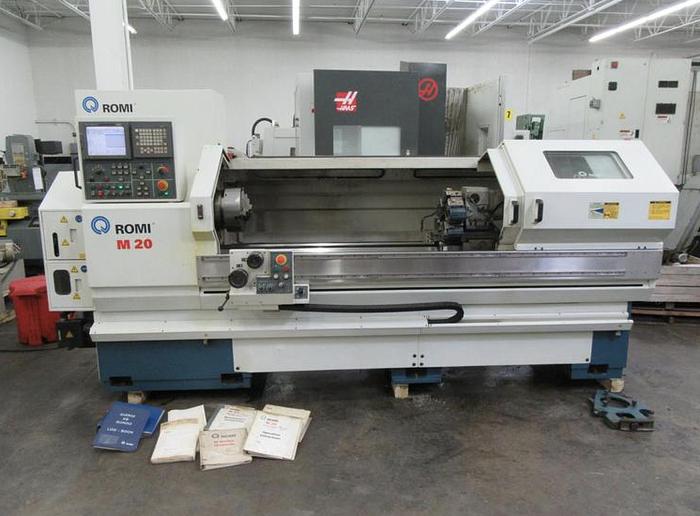

2000 Romi M20 CNC Engine Lathe
Sold
2000 Romi M20 CNC Engine Lathe
Description
Equipped With:

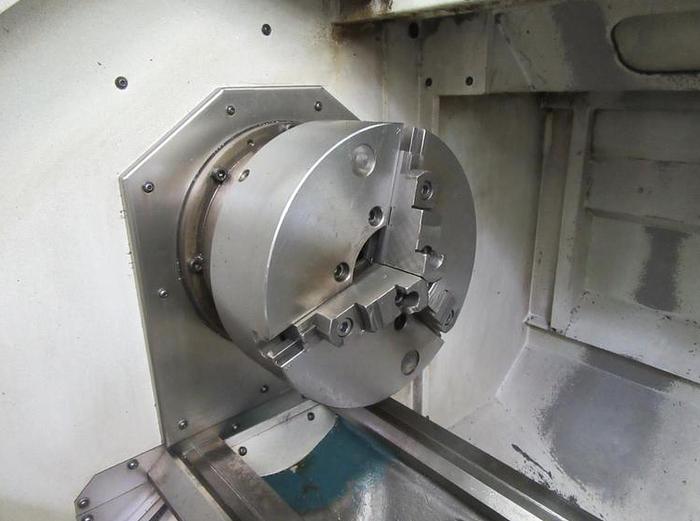

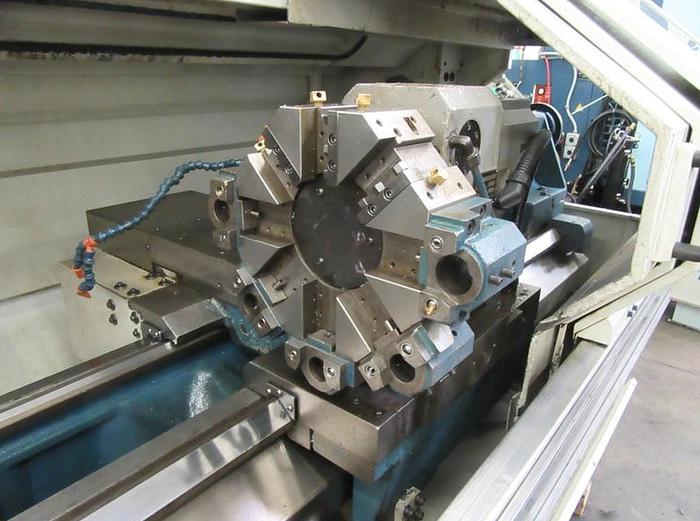

Fanuc Series 21i-T CNC Control, 12" 3-Jaw Scroll Chuck, 2200 Max RPM Variable Speed Spindle, 8-

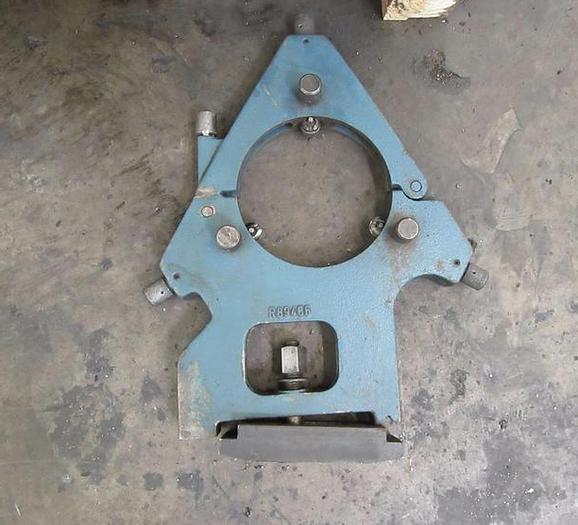

Station Programmable Turret with Bolt-On Tooling, Steady Rest, Inch/Metric Threading, Constand

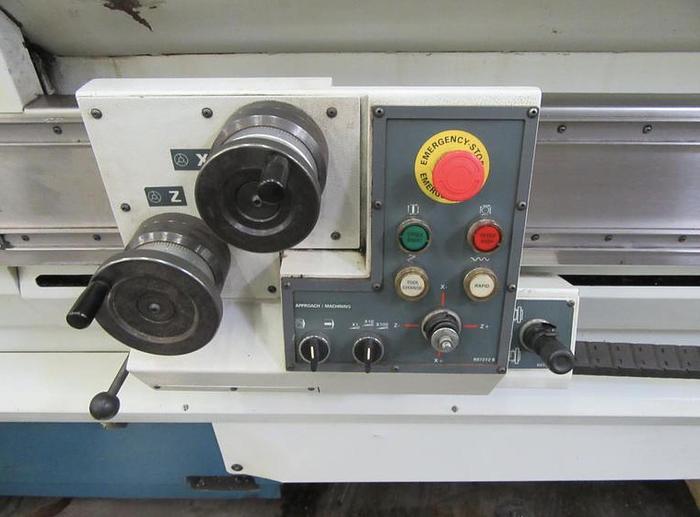

Surface Speed, Electronic Handwheels with Rapid Jog and Spindle Controls, Teach Mode Feature,

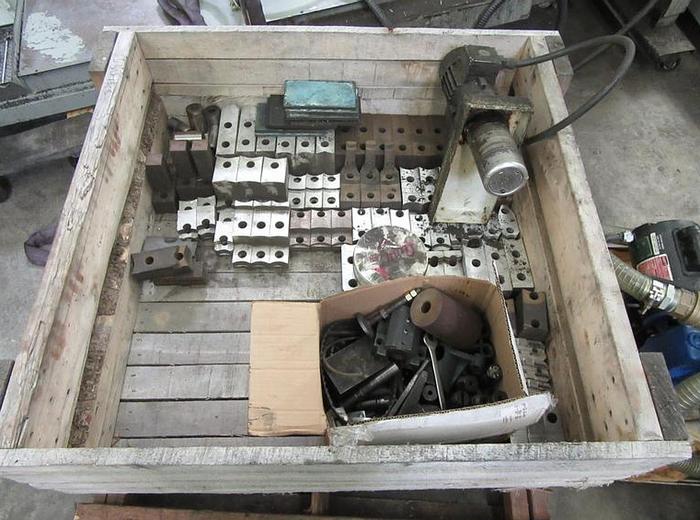

Coolant Tank & Pump, Machine Manuals, Slide-Out Chip Pans, Additional Tool Holder Blocks, Chuck Jaws
& Boring Holders.
Specifications
| Manufacturer | Romi |
| Model | M20 CNC Engine Lathe |
| Year | 2000 |
| Condition | Used |

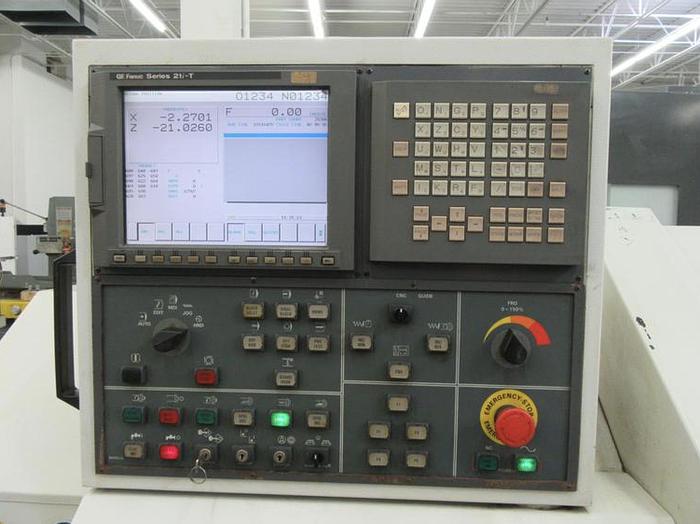

| Control | Fanuc Series 21i-T |
| Swing Over Ways | 20.5" |
| Swing Over Cross Slide | 10.2" |
| Max Center Distance | 80" |
| Center Height | Center Height |
| Hole Through Spindle | 3.0" |
| X Travels | 11" |
| Z Travels | 80" |
| Spindle Nose | A2-6 |
| Spindle Speed | 2,200 Max RPM Variable Speed |
| Rapid Traverse Rates (X/Z) | 295/395 IPM |

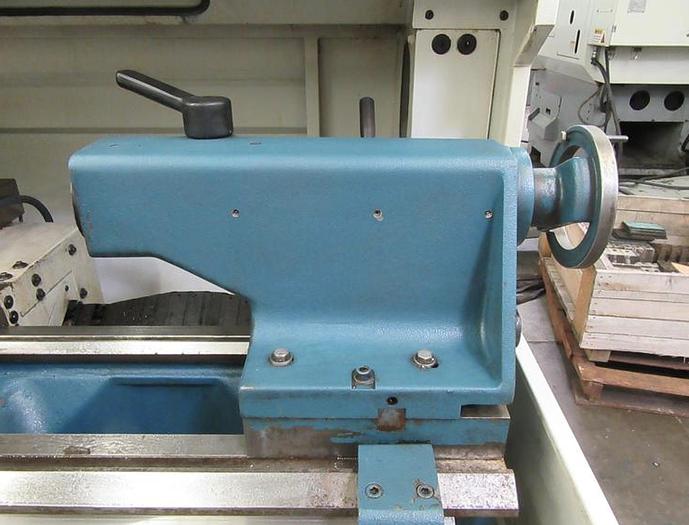

| Tailstock Quill Travel | 5.1" |
| Spindle Drive | 15 HP |
| Equipped With | Fanuc Series 21i-T CNC Control, 12" 3-Jaw Scroll Chuck, 2200 Max RPM Variable Speed Spindle, 8- Station Programmable Turret with Bolt-On Tooling, Steady Rest, Inch/Metric Threading, Constand Surface Speed, Electronic Handwheels with Rapid Jog and Spindle Controls, Teach Mode Feature, Coolant Tank & Pump, Machine Manuals, Slide-Out Chip Pans, Additional Tool Holder Blocks, Chuck Jaws & Boring Holders. |
| dimensions | 156.00"L x 56.00"W x 81.00"H |
| Weight | 8300.00 lbs. |
