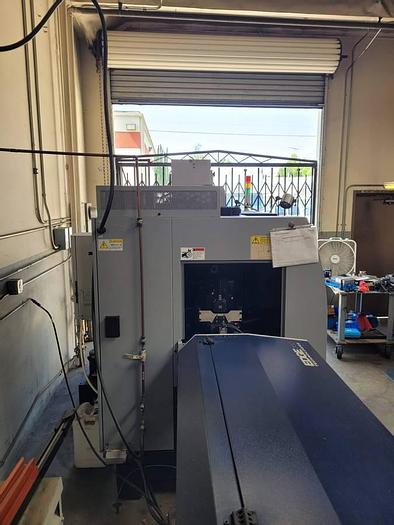

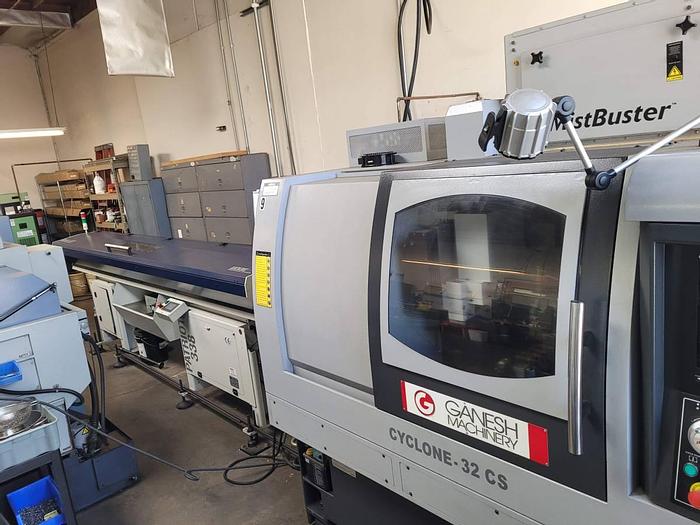

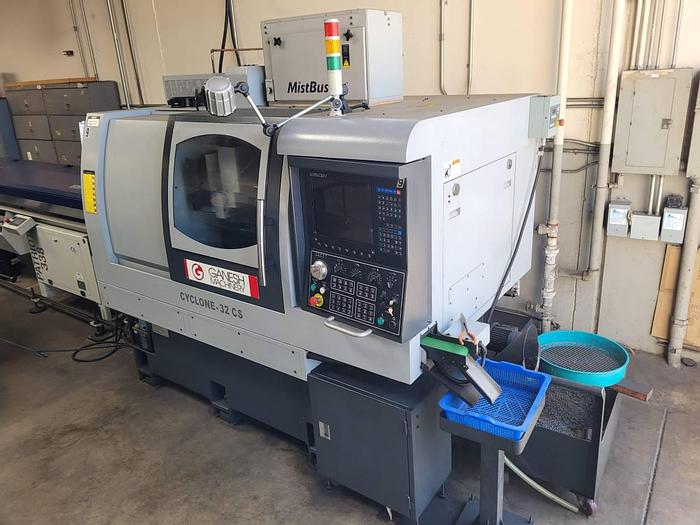

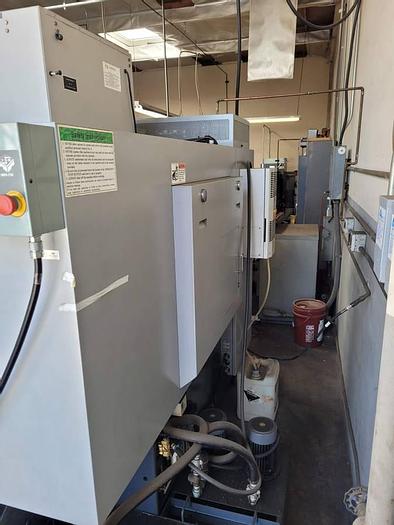

2015 Ganesh CYCLONE 32 CS

# Axis 7

Bar Capacity 1.25"

Max RPM 6,000 RPM

Turning Dia 1.25"

Machining Length 9.28"

Mitsubishi Control

Main Spindle:

Motor: 10 H

X-Axis: 7.28"

Y-Axis: 19.29"

Z-Axis: 6.50"

Rapid Travel Speed: 1180 IPM

Min. Input Unit: 0.00005"

OD Turning Tool Positions: 6 OD Tools (1/2" or 12mm)

ID Turning Tool Positions: 5 ID Tools

OD Turning Tool Size: 1/2" or 12mm

ID Turning Tool Bore Size: 25mm

Spindle Center Height: 38"

Sub Spindle:

Motor: 5 HP

Max. Barstock Diameter: 1.25"

RPM: 6000

X-Axis: 11.53:"

Z-Axis: 11.61"

Min. Input Unit: .00005"

ID Turning Tool Bore Size: 25mm

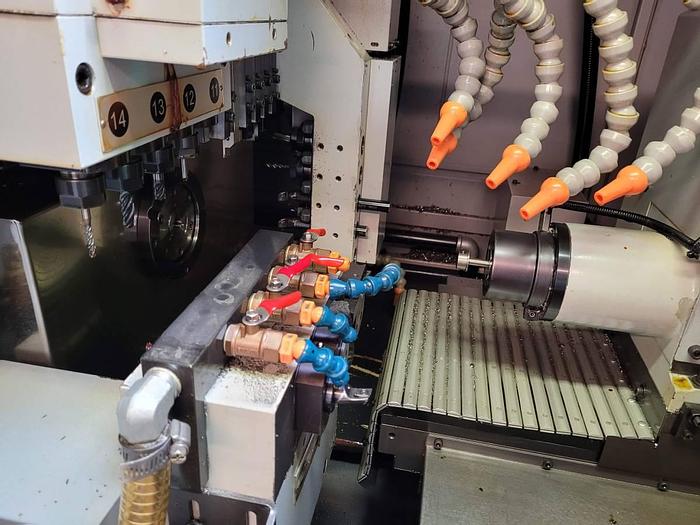

Live Tooling:

Cross Slide: 4 Cross Slide Live Tools

Front Slide: 3 Front Slide Live Tools

Live Tool Collet Size: ER-20 Collet, 1/2" (13mm) Tool Shank

Equipped With:

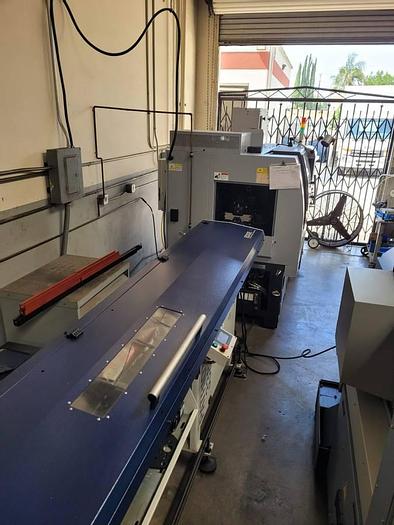

Edge Patriot 338 12' Magazine Bar Loader

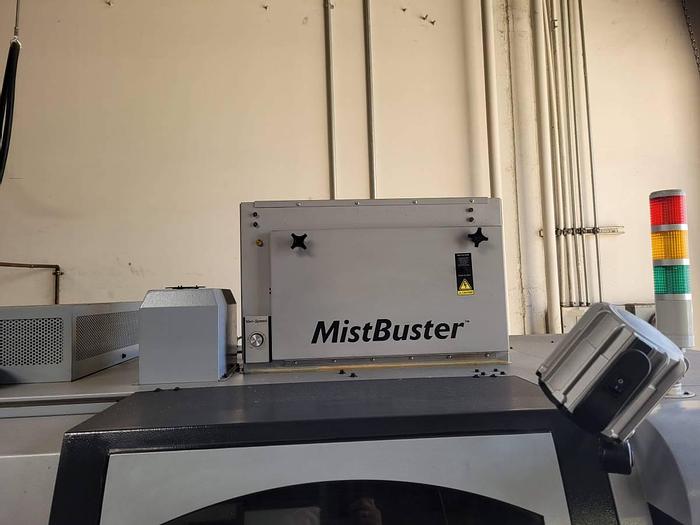

Mistbuster 850 Mist Collector

Parts Catcher & Conveyor

Sub-Spindle Programmable Air Blast & and Finished Parts Ejector

Automatic Chip Conveyor
