2013 KITAMURA MYCENTER-4XT 5-Axis Vertical Machining Center
Sold
2013 KITAMURA MYCENTER-4XT 5-Axis Vertical Machining Center
Description

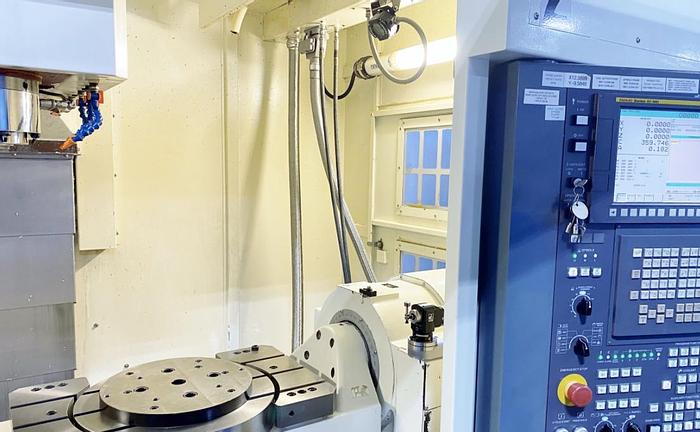

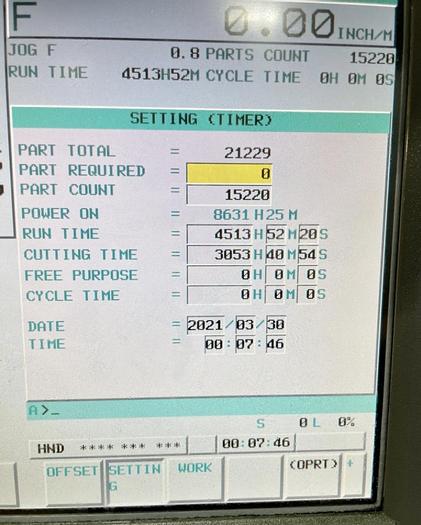

This Kitamura MyCenter-4XT vertical machining center has a built-in trunnion table for 5-axis work. This vertical mill offers high-speed rapids and solid box guideways, in addition to a Renishaw probing system and high-pressure through-spindle coolant. The machine has been lightly used, with only 3,000 cutting hours.
Equipped with:
FANUC 0i-MD CONTROL
BUILT-IN 4TH/5TH AXIS TRUNNION TABLE
4 AXES SIMULTANEOUS CONTROL (4 + 1)
HIGH-PRESSURE THROUGH-SPINDLE COOLANT (1,000 PSI)

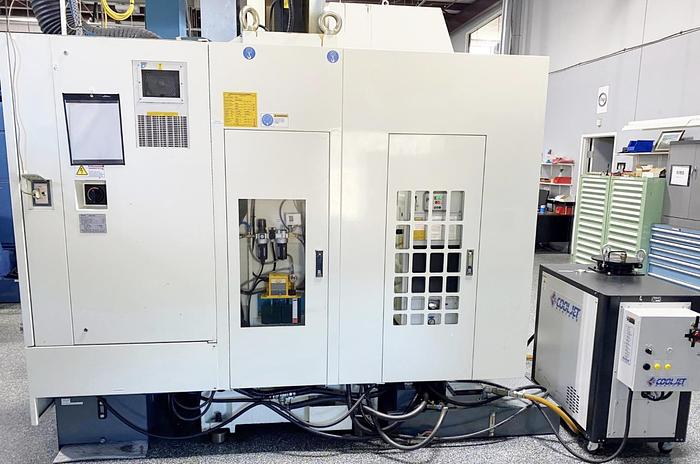

COOLJET HIGH-PRESSURE COOLANT SYSTEM
RENISHAW PROBING SYSTEM
15,000 RPM SPINDLE

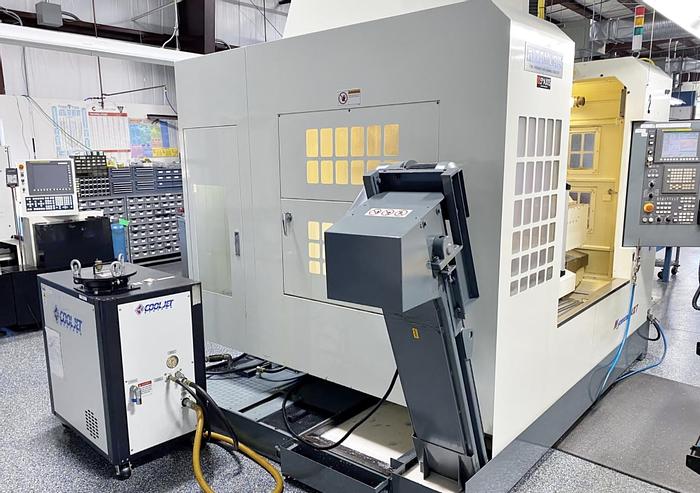

CHIP CONVEYOR

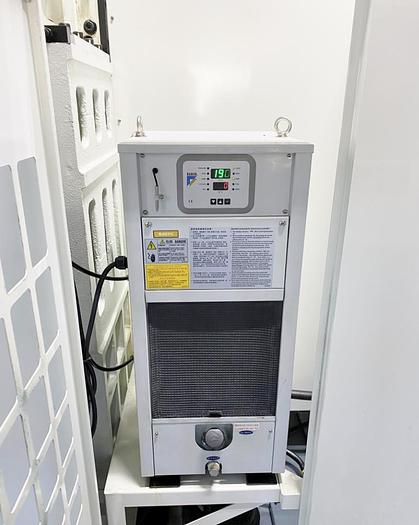

SPINDLE CHILLER
BOX WAY (4 BOX WAYS ON Y-AXIS)
AI CONTOUR CONTROL II (200 BLOCK LOOK-AHEAD)
NANO SMOOTHING
JERK CONTROL
2MB MEMORY
Specifications
| Manufacturer | KITAMURA |
| Model | MYCENTER-4XT 5-Axis Vertical Machining Center |
| Year | 2013 |
| Condition | Used |
| Table L | 23.6" |
| Table W | 14.3" |
| X-AXIS TRAVEL | 31.5" |
| Y-AXIS TRAVEL | 24" |
| Z-AXIS TRAVEL | 20" |
| Spindle Speed | 15,000 RPM |
| SPINDLE MOTOR | 35 hp |
| SPINDLE TAPER | CAT 40 (BIG PLUS) |
| TOOL CAPACITY (ATC) | 30 |
| RAPID TRAVERSE - X/Y AXIS | 1,417 in/min. |
| RAPID TRAVERSE - Z-AXIS | 1,417 in/min. |
| Equipped With | FANUC 0i-MD CONTROL BUILT-IN 4TH/5TH AXIS TRUNNION TABLE 4 AXES SIMULTANEOUS CONTROL (4 + 1) HIGH-PRESSURE THROUGH-SPINDLE COOLANT (1,000 PSI) COOLJET HIGH-PRESSURE COOLANT SYSTEM RENISHAW PROBING SYSTEM 15,000 RPM SPINDLE CHIP CONVEYOR SPINDLE CHILLER BOX WAY (4 BOX WAYS ON Y-AXIS) AI CONTOUR CONTROL II (200 BLOCK LOOK-AHEAD) NANO SMOOTHING JERK CONTROL 2MB MEMORY |
