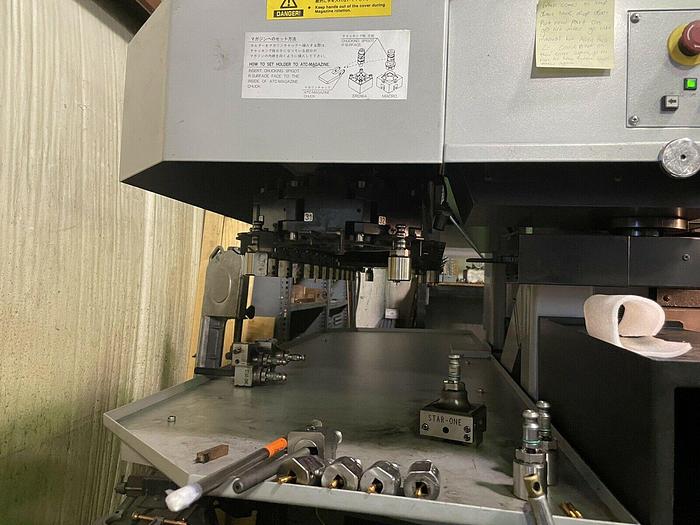

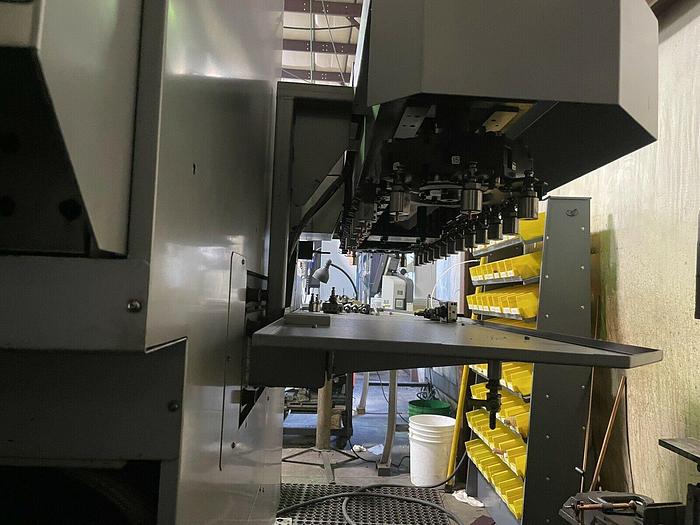

2006 SODICK AQ35l SINKER with Tool Changer

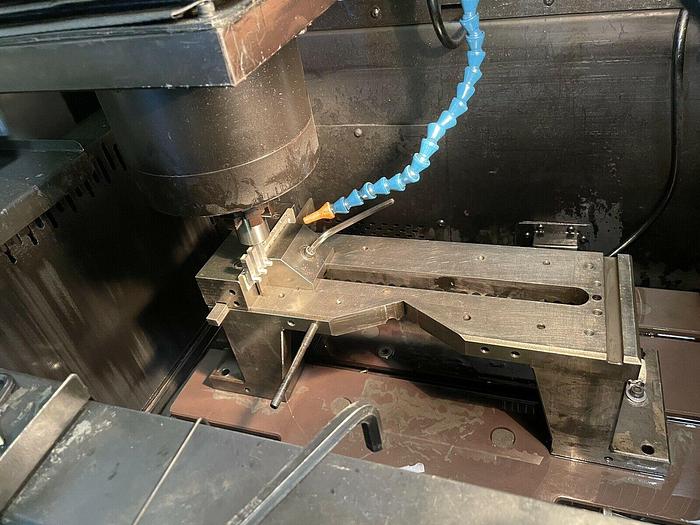

Work table size (WxD): 600×400 mm

Work tank inner dimensions (WxDxH): 750x550x320 mm

Work tank fluid level (min to max): 95-270 mm

Work tank capacity: 112 l

X axis stroke: 350 mm

y axis stroke: 250 mm

Z axis stroke: 250 mm

Max workpiece weight: 550 kg

Max electrode weight: 50 kg

Distance from floor to table top: 850 mm

Machine dimensions: 1535x2210x2395 mm

Machine weight: 3900 kg

Power input : 3X400V 50/60 Hz 8kVA

Air pressure: 0.45 MPa

Air flow: 100 N l/min
