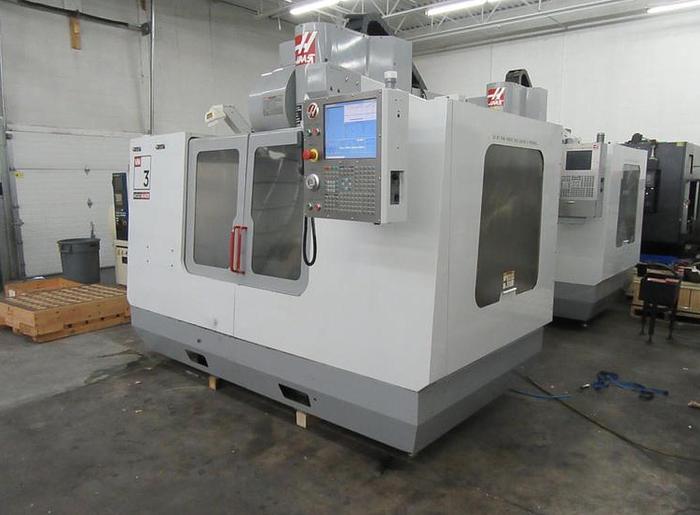

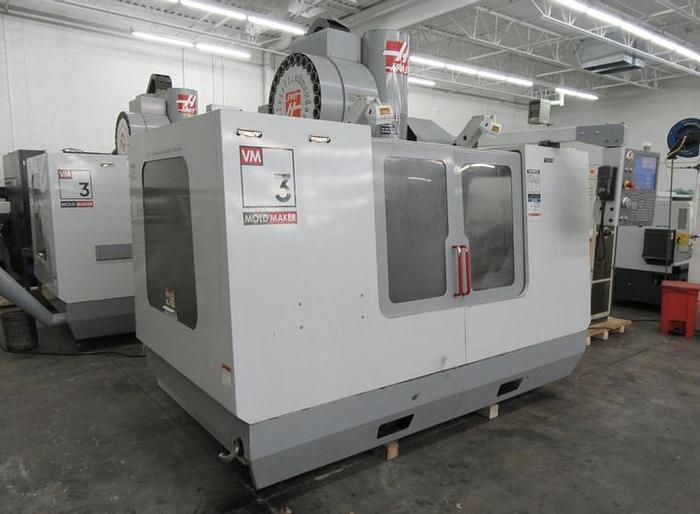

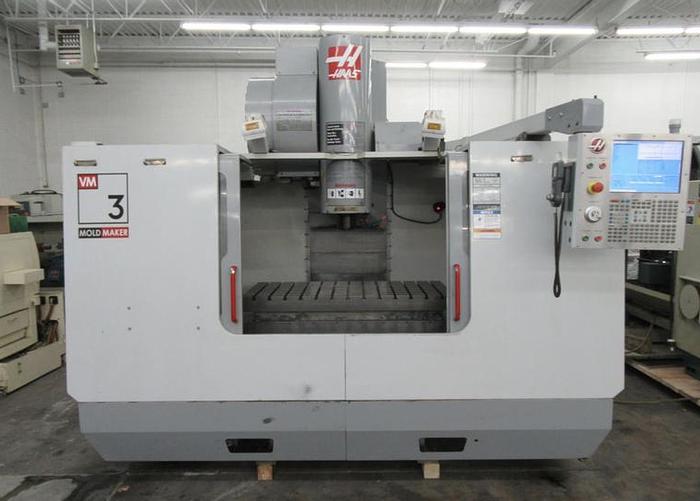

2005 HAAS VM-3 CNC Vertical Machining Center

Haas VM-3 CNC Vertical Machining Center w 4th & 5th Axis Brushless Drives, 24+1 ATC,

Chip Auger - New Haas Control Installed in 2018

Specifications:

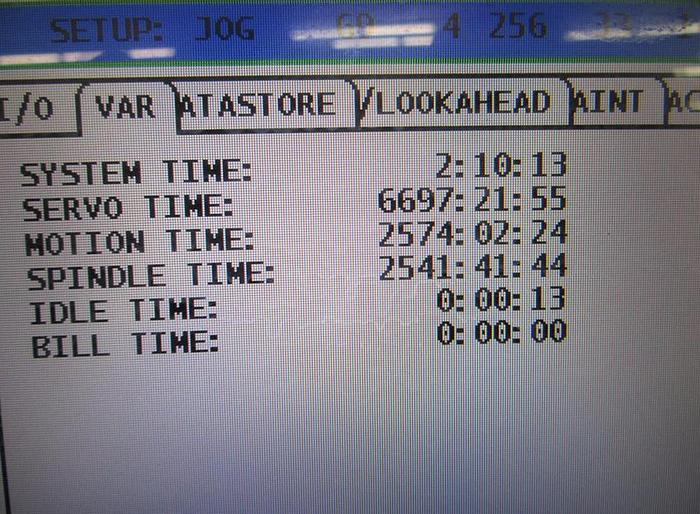

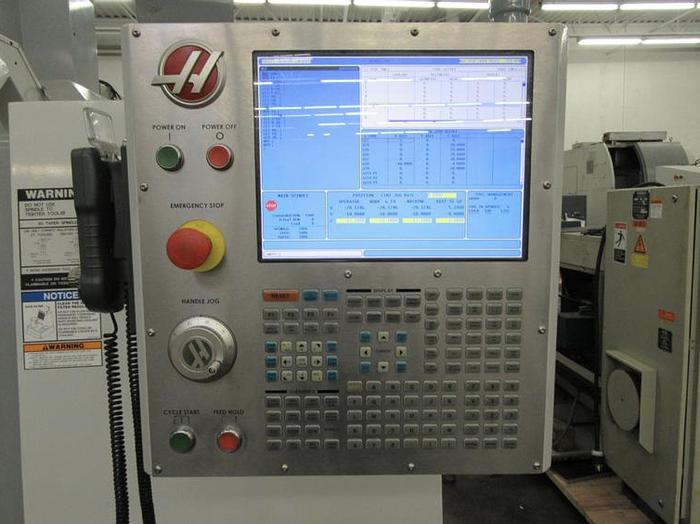

Machine Control: Haas MainCon Control Updated in 2018

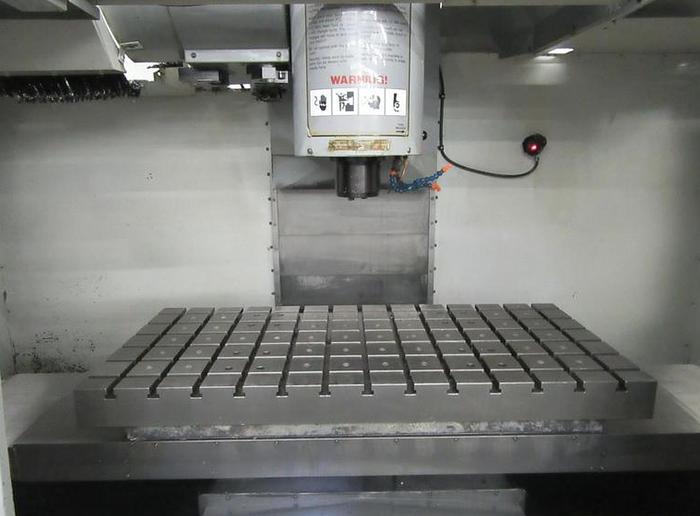

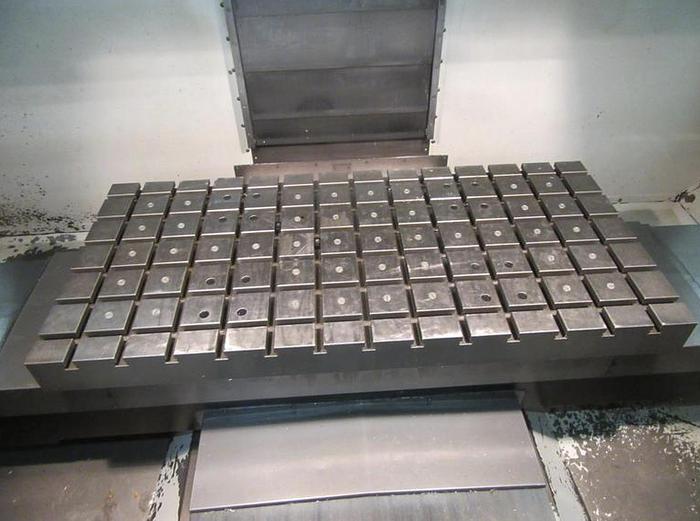

Table Size: 54" x 25"

Table Capacity: 4,000 lbs

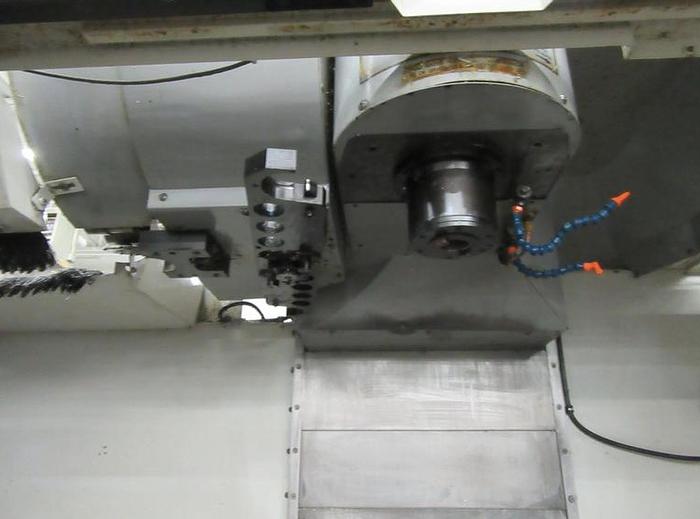

Spindle Taper: Cat 40

Machine Travels: (X/Y/Z) 40" x 26" x 25"

Spindle Speeds: 12,000 RPM Max

Transmission: Direct Drive Inline Motor

Rapid Traverse Rate: (X/Y/Z) 710 IPM

Tool Changer Style: Side Mount, Twin Arm

Tool Changer Capacity: 24 + 1 Stations

Tool Change Time: 2.8 Sec. Tool to Tool

Max Tool weight: 12 Lbs.

Spindle Drive: 30 Hp Inline Direct Drive

Spindle To Table Distance: 4" - 26"

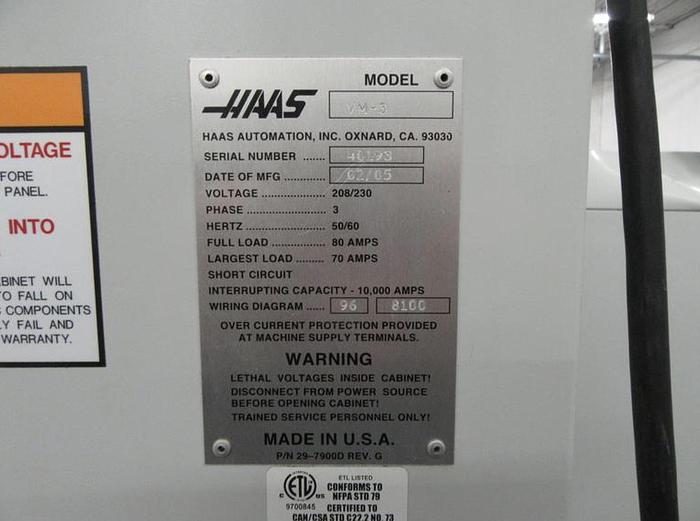

Electrics: 208/230V, 3Ph

Approximate Machine Dimensions: 120.00"L x 102.00"W x 120.00"H

Approximate Weight: 14000.00 lbs.

Equipped With:

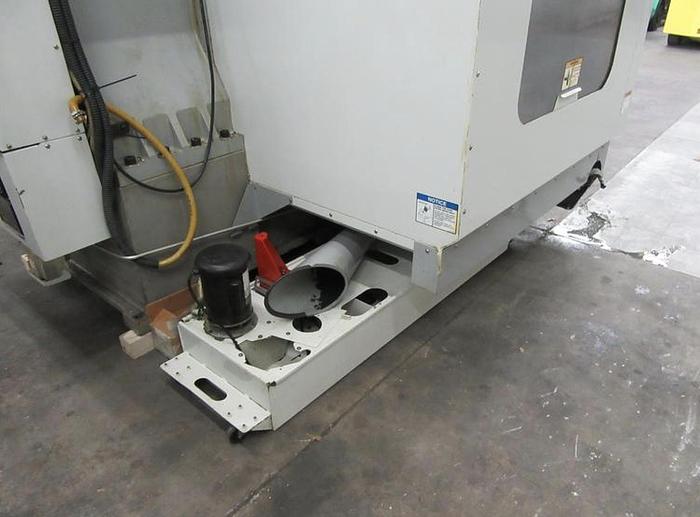

Haas MainCon CNC Control (Updated 2018), 4th & 5th Axis Brushless Drives, Chip Auger, 24+1 Side

Mount Twin Arm Tool Changer, Remote Jog Handle, USB Port, Ethernet, Standard Coolant System -

NOTE Current Probe System Does not Work with Updated Control

Coolant Tank: 30.00" L x 80.00" W x 20.00" H, 250.00 LBS
