2015 DOOSAN SMX3100S 7 Axis CNC Lathe

Description:  Doosan Puma SMX3100S 7-Axis CNC Lathe, Fanuc 31i, 12"/10" Chucks, 60.6" Centers, 4" Bar Capacity, Live Milling, 80 Position ATC, Y-Axis, C-Axis, 2015 (2) Available

# Axis 7

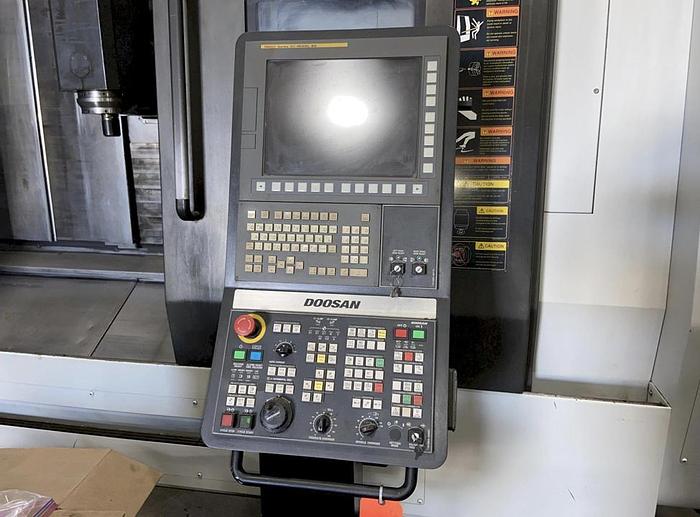

Fanuc 31i Control

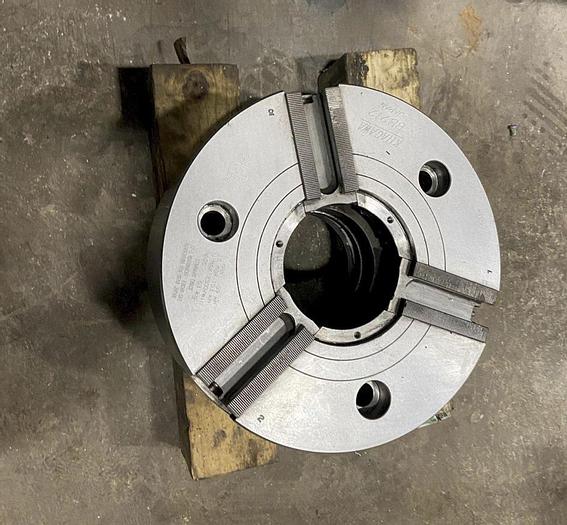

12" Chuck

A2-11 Spindle Nose

26" Swing

26" Turning Diameter

60.6" Center Distance

4" Bar Capacity

C-Axis yes

X Axis Travel: 24.8"

Y-Axis Travel: 11.8"

Z Axis Travel: 62.4"

X Axis Rapid Feedrate: 1890 inches-per-minute

Y-Axis Rapid Feedrate: 1417"

Z Axis Rapid Feedrate: 1890 inches-per-minute

3000 RPM Spindle Speed

40 Horsepower Main Motor

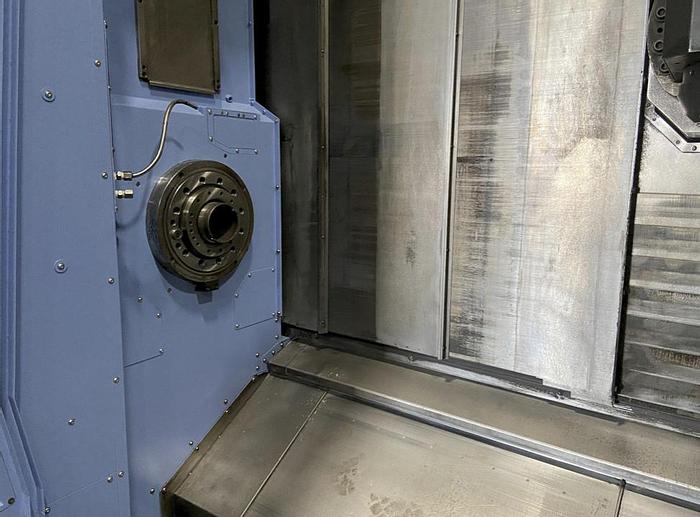

Sub Spindle Chuck Size 10"

4000 RPM Sub Spindle Speed

35 HP Sub Spindle Motor

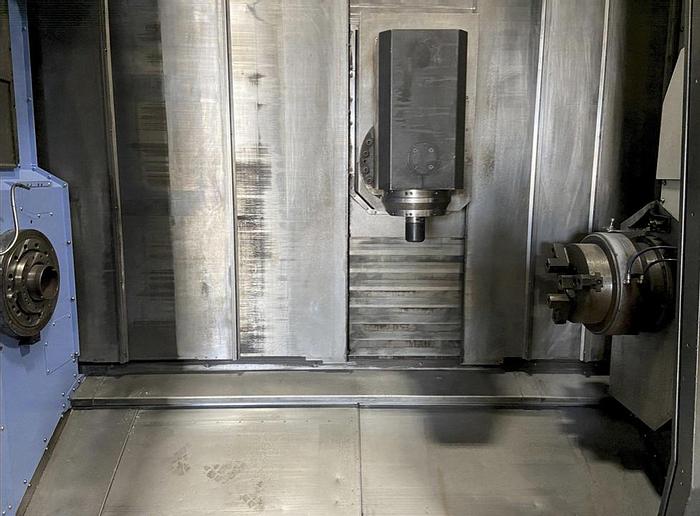

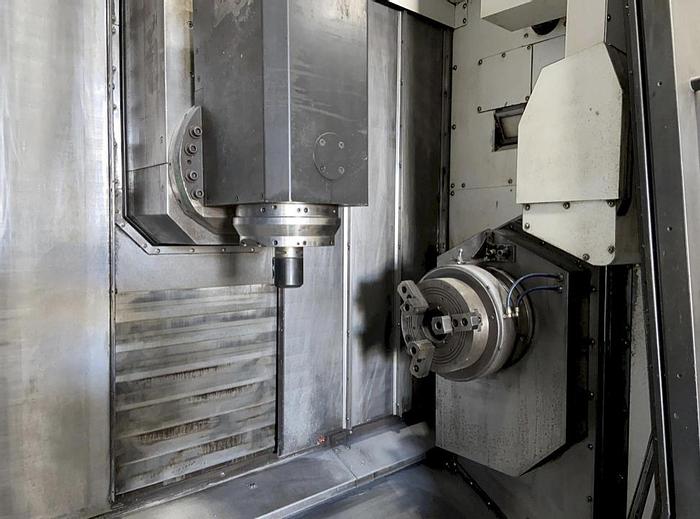

Live Milling: Yes

12000 RPM Live Milling Speed

30 HP Live Milling Motor

Number Of Turrets: 1

Turret Capacity (Upper/Lower) 80

Tailstock: No

Dimensions: 193" x 119" x 113"

Weight: 36850 lb

Equipped With:

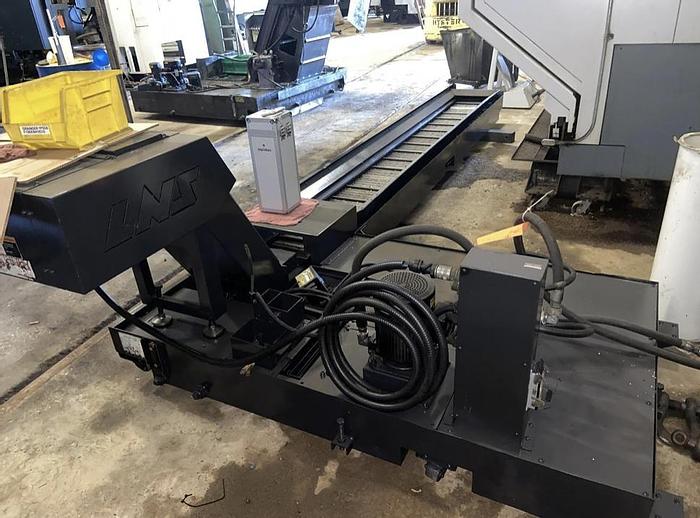

Mill/Turn Center, CAPTO C6,12" Main Chuck/10" Sub Spindle Chuck, A2-11 Main/A2-8 Sub, Chip Conveyor, Coolant Tank & Pumps
