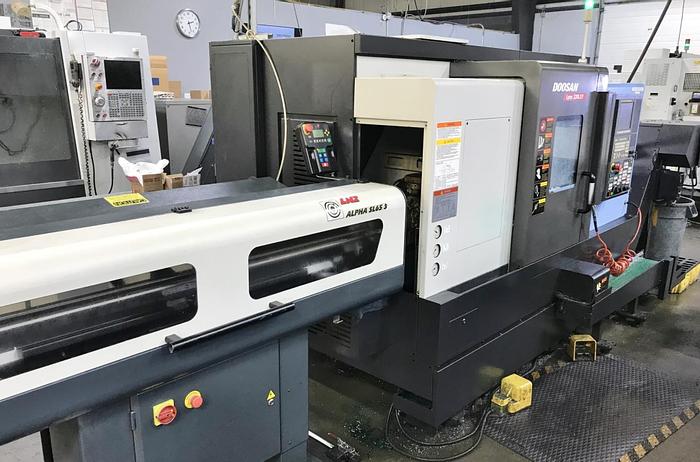

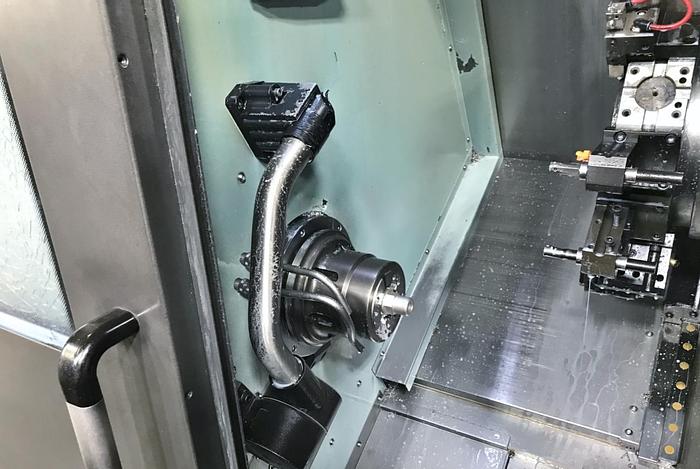

2015 DOOSAN LYNX 220LSYC & LNS BARFEEDER

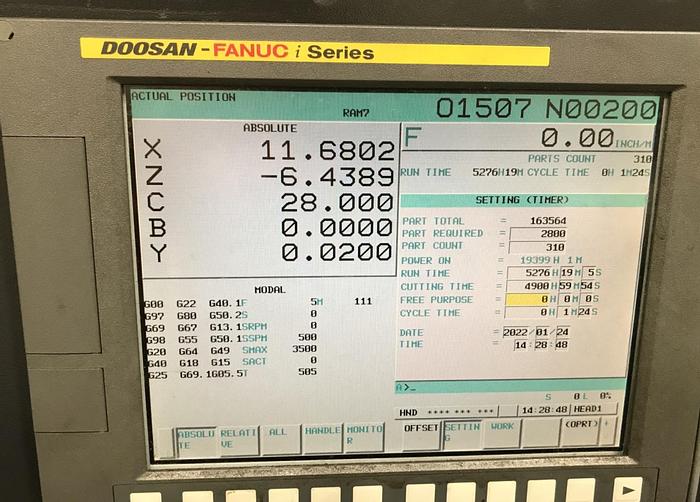

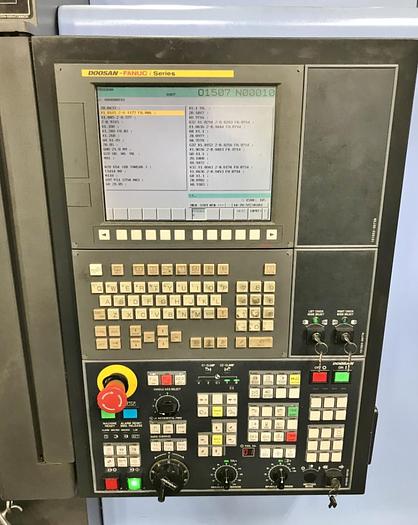

FANUC i SERIES CONTROL

8" Hydraulic Chuck Main Spindle

2.6" BAR CAPACITY

2.99" SPINDLE BORE

4,500 RPM SPINDLE SPEED

23.6" SWING OVER BED

11.8"MAX CUTTING DIAMETER

20" MAX CUTTING LENGTH

8.1" X-AXIS TRAVEL

4" (+/- 2") Y-AXIS TRAVEL

22" Z-AXIS TRAVEL

C-AXIS INDEXING FULL C-AXIS

5", 3-JAW HYDRAULIC CHUCK (SUB SPINDLE)

1.7" SUB SPINDLE - BAR CAPACITY

7.5 HP SUB SPINDLE - SPINDLE MOTOR

6,000 RPM SUB SPINDLE - SPINDLE SPEED

24 TURRET CAPACITY (STATIONS)

BMT TURRET

6,000 RPM LIVE MILLING SPEED

Y-AXIS

TOOL PRESETTER

PARTS CATCHER

PARTS CONVEYOR

CHIP CONVEYOR

(4) LIVE TOOL HOLDERS (EPPINGER)

AN ASSORTMENT OF STATIC TOOLING

A2-6 SPINDLE NOSE

20 HP SPINDLE MOTOR

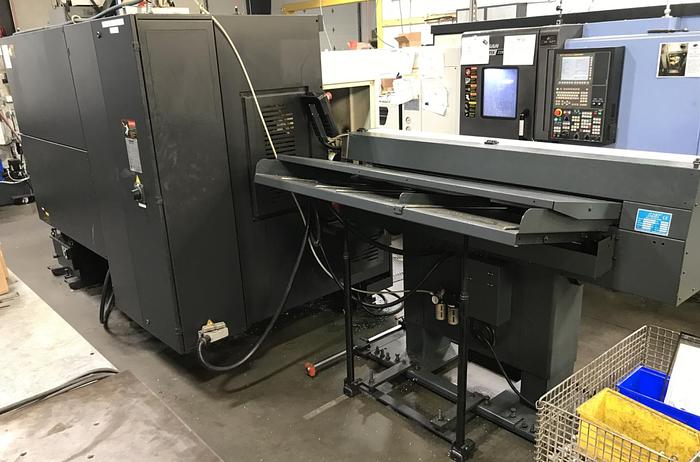

LNS ALPHA SL65 MAGAZINE BARFEEDER

4,900 HOURS & UNDER POWER
