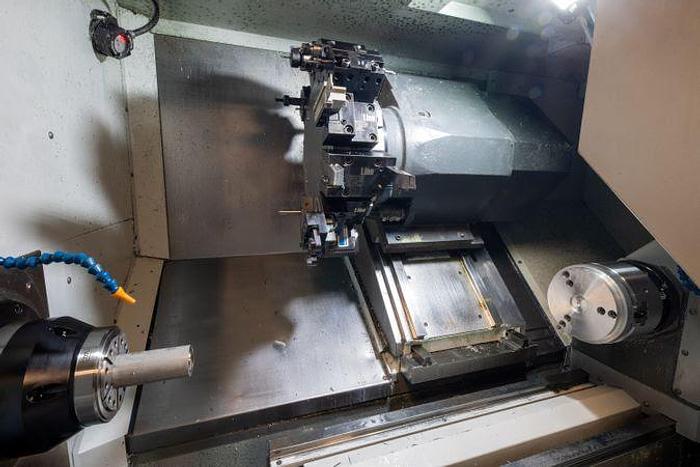

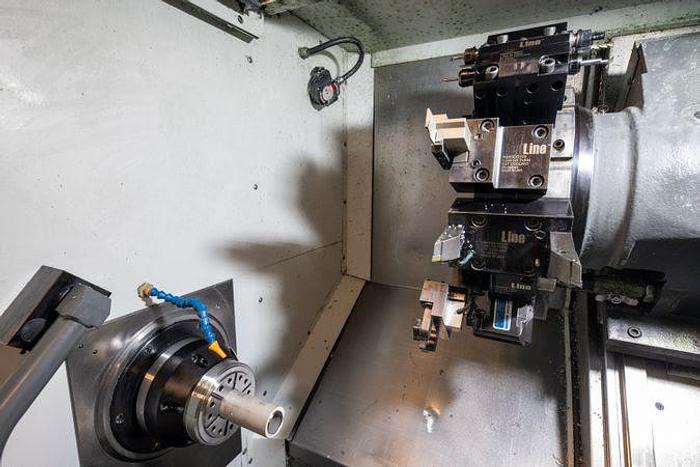

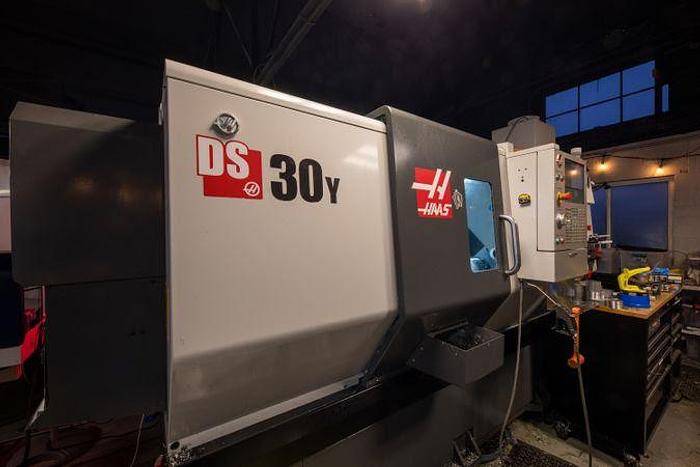

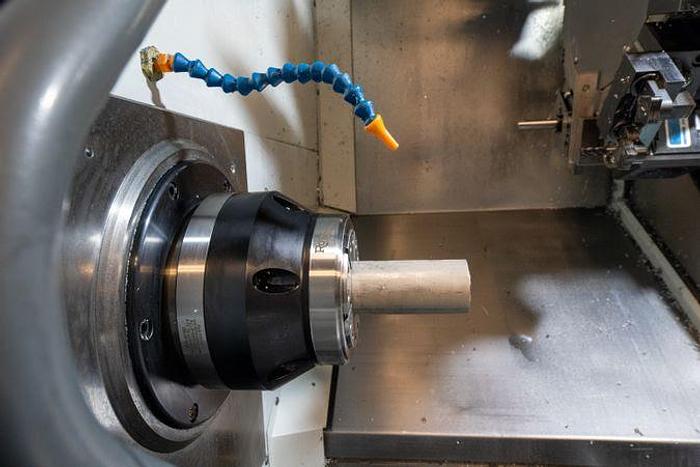

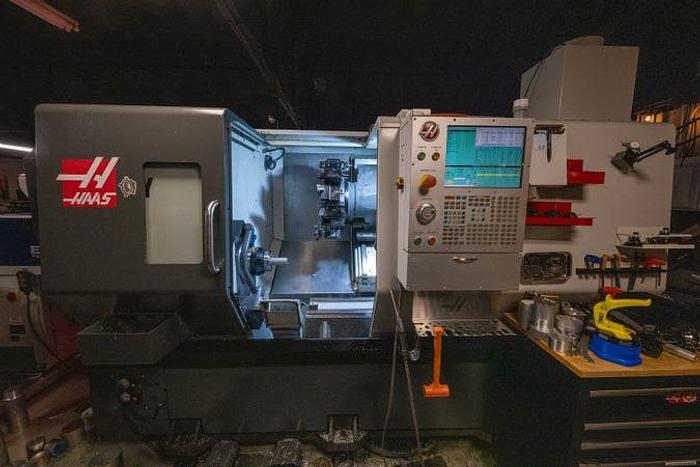

2018 HAAS DS30Y CNC Turning Center With Live Tooling ***Low Hours***

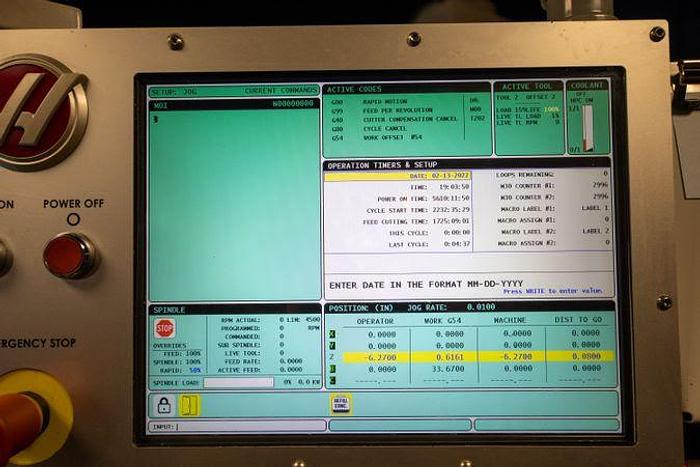

Haas Next Gen CNC Control

Chip Conveyor

Tool Presetter

Parts Catcher

Live Tooling

Sub Spindle

Y Axis

5 Axis

ROYAL CHUCK + 3X COLLETS

HP COOLANT

AUTO-REFILL

Bar Capacity: 3"

Chuck Size: 10"

Spindle Speed: 4,500 RPM

Spindle Motor: 30 HP

X Axis Travel: 12.5"

Z Axis Travel: 23"

Rapid Rate Z Axis: 945 IPM

Turret Tools: 24 Station

Rapid Rate X Axis: 472 IPM

Max Turning Dia: 18"

Max Turning Length: 23"

Max Swing: 31.8"

Swing Front Apron 31.8"

Swing Over Cross Slide 20.8"

Swing Second Spindle 21.8"

Max Thrust X 4100 lbf

Max Thrust Y 2300 lbf

Max Thrust Z 5100 lbf

Spindle Nose A2-6

Drive System Direct Speed

Max Torque 275 ft-lbf

Spindle Bore ø 3.50"

Main Spindle C Axis

Max Rating 5 hp

Positioning (±) 0.01 °

Brake Clamp Force 1000 lbf

Brake Diameter 14.4"

Interpolated Motion and Positioning

SUB SPINDLE:

Chuck Size 8"

Spindle Nose A2-5

Drive System Direct Speed

Max Rating 20 hp

Max Speed 4800 rpm

Max Torque 110 ft-lbf

Spindle Bore 2"

Bar Capacity 2"

Boring Bar Rear Clearance 4"

LIVE TOOLING:

Y Axis ± 2.0"

Max Speed 6000 rpm

Drive Ratio 1:1

Tooling BMT65

Coolant Capacity 65gal

Dimensions: 171" x 90" x 92"

Weight: 16,000 LBS
