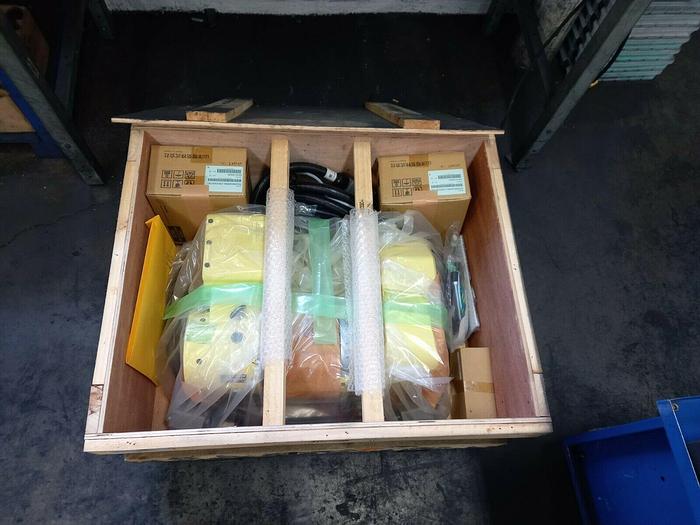

Nikken 5AX-130 Trunnion Table

Only Used about 5 Hours

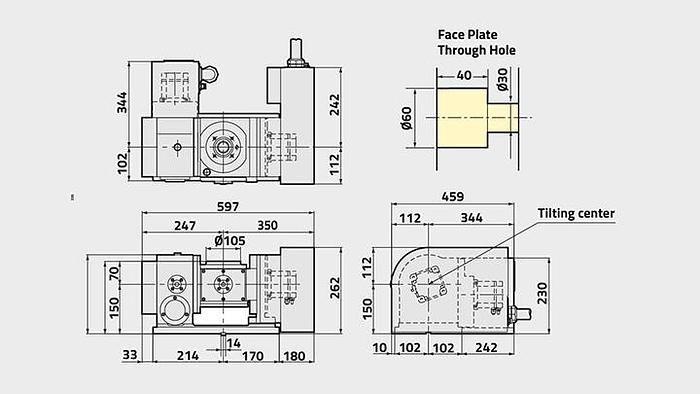

Face Plate Diameter [Ømm]105 (130 Sub-Plate)

Table Range/Type COMPACT

Diameter of Spindle Hole [Ømm H7]60

Number of Spindles x Pitch [mm] 1

Centre Height (90°) [mm] 150

Table Height in Horizontal Position (0°) [mm ] 235

Width of T Slot [mm] 10H7 Pin

AXIS Rotary Tilting (0°-105°)

Clamping System AIR

Clamping Torque [Nm]205 303
