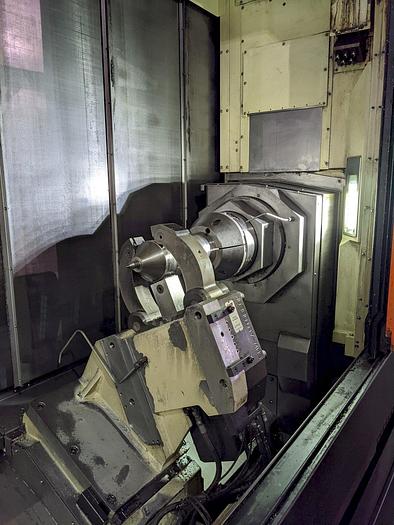

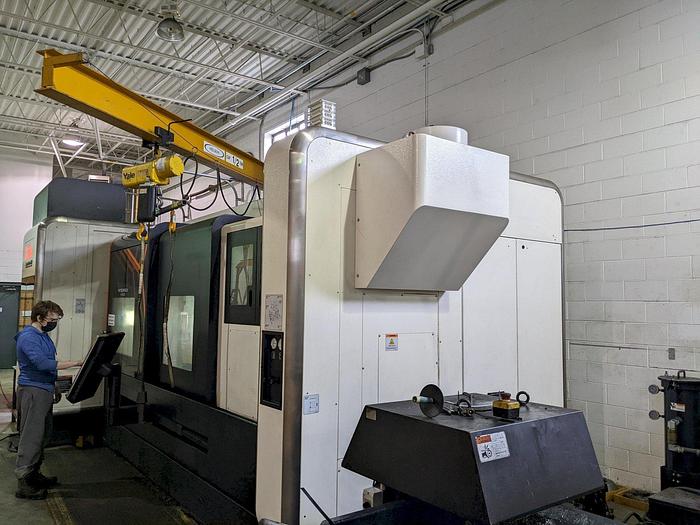

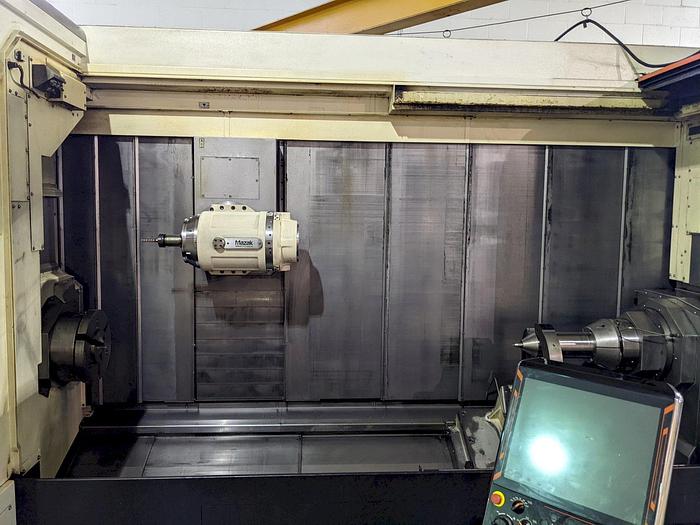

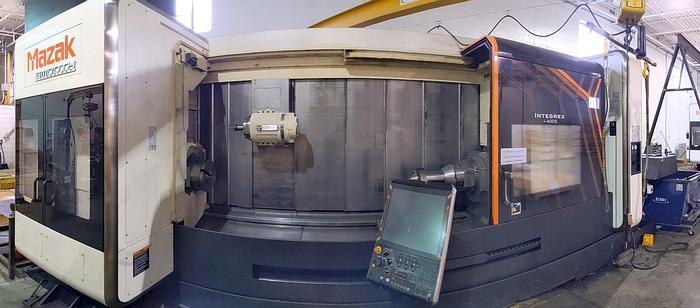

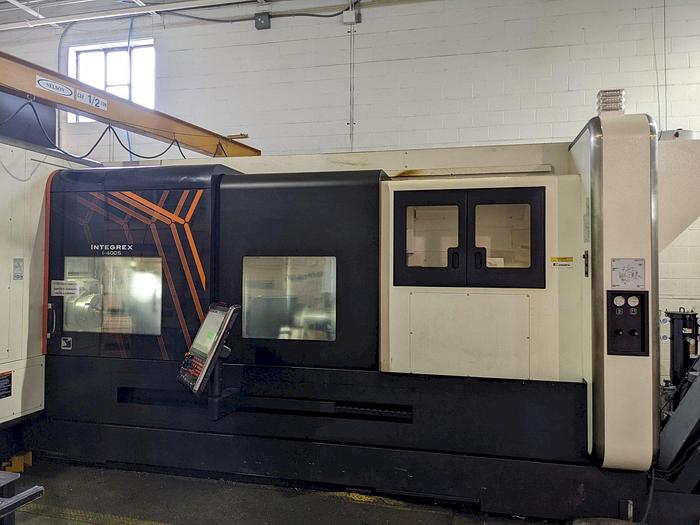

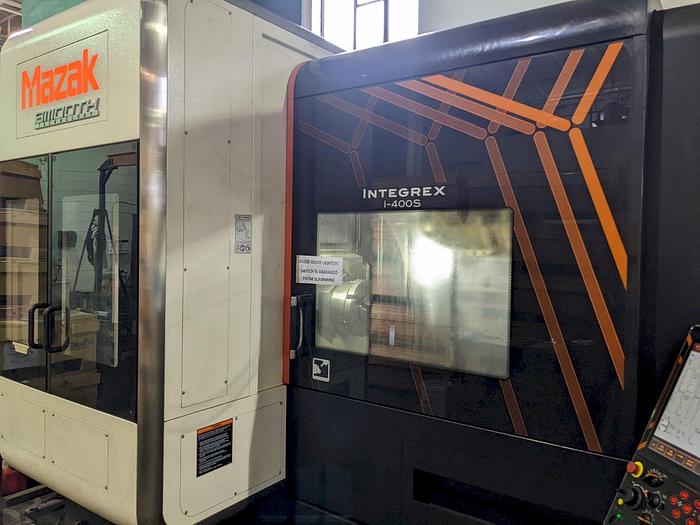

2017 MAZAK Integrex I-400SLW/2500 CNC Mill-Turn Center

Excellent Condition

SPECIFICATIONS:

SWING OVER BED         30"

TURNING DIAMETER        26" - 30" USING Y AXIS

TURNING LENGTH         98.5"

DISTANCE BETWEEN SPINDLES   100.75"

CHUCK SIZE 1, 2        10", 10"

SPINDLE NOSE 1, 2       A2-8, A2-8

BAR CAPACITY 1, 2       4", 3.46"

SPINDLE SPEEDS 1, 2      3300, 4000 RPM

SPINDLE HORSEPOWER 1, 2    40, 35 HP

B - AXIS HEAD INDEXING     .0001 INDEXING

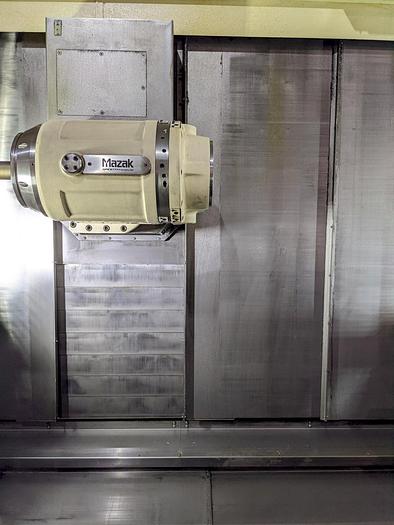

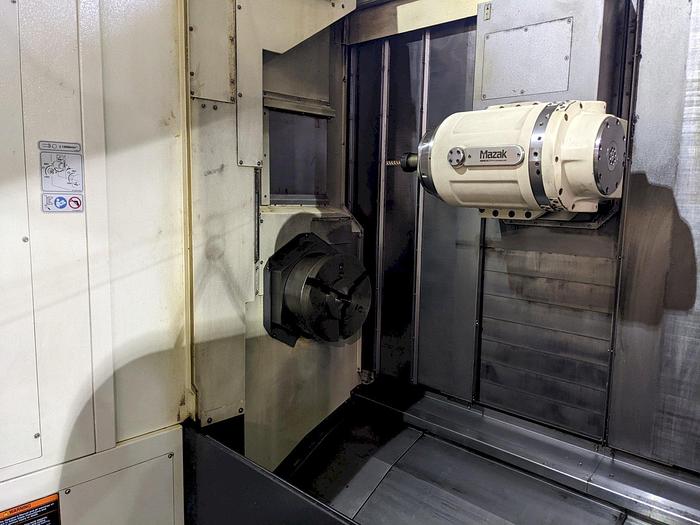

B - AXIS MILLING SPINDLE SPEED 12000 RPM

B - AXIS MILLING SPINDLE TAPER CAPTO C6

B - AXIS MILLING SPINDLE HP  25 HP

ATC FOR MILLING SPINDLE    110 ATC

TOOL DIAMETER         3.54" / 4.92"

TOOL LENGTH          15.75"

TOOL WEIGHT          22 LBS.

X - AXIS TRAVEL X1, X2, X3   24.8"

Z - AXIS TRAVEL Z1, Z2, Z3   100.75"

Y - AXIS TRAVEL Y1, Y2, Y3   9.06"

C - AXIS INDEXING 1, 2 .0001, .0001

W - AXIS TRAVEL SUB SPINDLE  85.3"

MAZATROL SMOOTH X CNC COLOR CONTROL W/19" TOUCH SCREEN

OVERLOAD DETECTION SYSTEM

EIA/ISO FUNCTION SIMUTANEOUS 5 AXES

TOOL TIP CONTROL/ SIMULTANEOUS 5 AXIS

TOOL RADIUS COMPENSATION 5-AXIS

RE-THREADING FUNCTION

THREAD START POINT COMP.

CHIP CONVEYOR SIDE HINGE TYPE

HOBBING FUNCTION

MILLING SPINDLE SYNCHRONOUS TAPPING

AUTOMATIC TOOL EYE

MAIN AND SECOND SPINDLE CHUCK AIR BLAST

3 D COORDINATE CONVERSION, GOO SLOPE CONSTANT, CYLINDRICAL

POLAR COORDINATE, PITCH ERROR COMP, INCH/METRIC

EIA 1ST SPINDLE & MILL SPINDLE, IDEPENDENT ROTATION

SD MEMORY I/F, + USB, LAN PORT

Y AXIS CONTROL

1ST SPINDLE BORE 4.

C-AXIS .0001 DEGREE

12" THRU HOLE CHUCK B212

2ND SPINDLE C-AXIS .0001 DEGREE

CHUCK AIRBLAST

10" NON THRU HOLE CHUCK

5 AXIS MACHINING MACHINING PACKAGE FOR SMOOTH X

B - AXIS .0001 DEGREE CONTOURING EIA/ISO

AUTO CHUCK JAWS OPEN/CLOSE CONFIRMATION 1ST & 2ND SPINDLE

AUTO PWER ON/OFF + WARM UP

DOOR INTERLOCK & HYDRAULIC PRESSURE INTERLOCK BALLSCREW COOLERS X AXIS

POWER 480 V 3 PHASE MIST COLLECTOR (2) UNITS

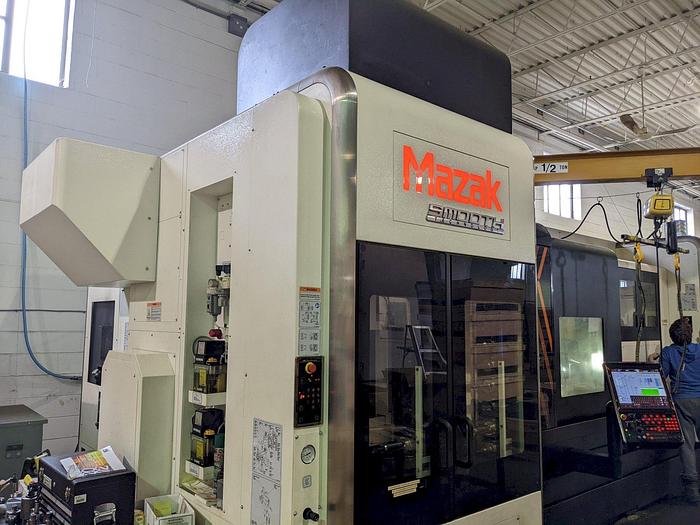

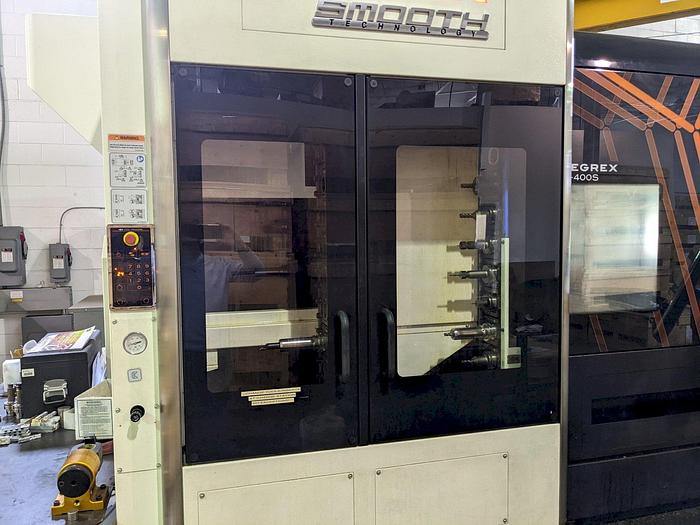

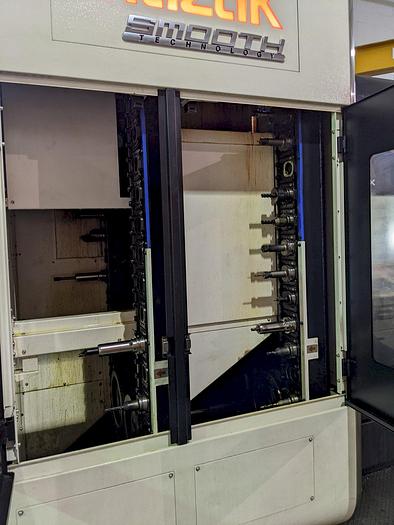

110 AUTO TOOL CHANGE MAGAZINE

HIGH HP ROTARY 12,000 RPM SPINDLE

(3) TOOL LONG DRILL SYSTEM

MAZAK SUPERFLOW 1000 PSI HIGH PRESSURE COOLANT THRU SPINDLE SYSTEM

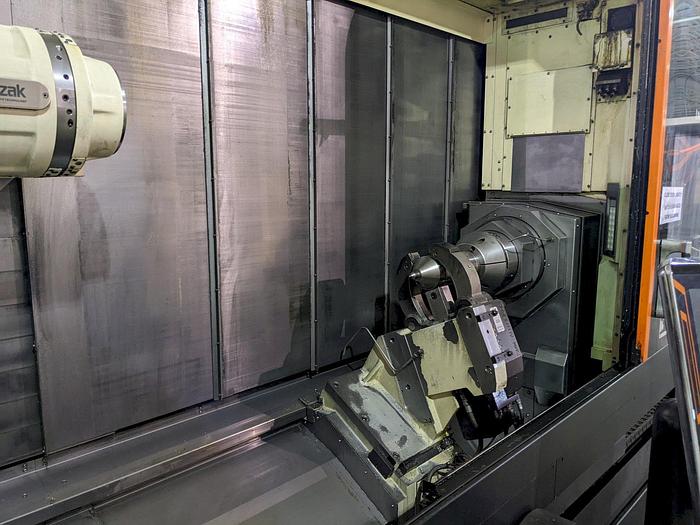

SMW K4-1Z PROGRAMMABLE HYDRAULIC STEADY REST 3.5"~12.99" CAPACITY

RENISHAW RMP 600 PROBE

ATLM SPECIAL TOOL SETTER RPI PROBE

WORK SETTING ERROR COMP G54.4

SPINDLE SHAPING FUNCTION G54.1
