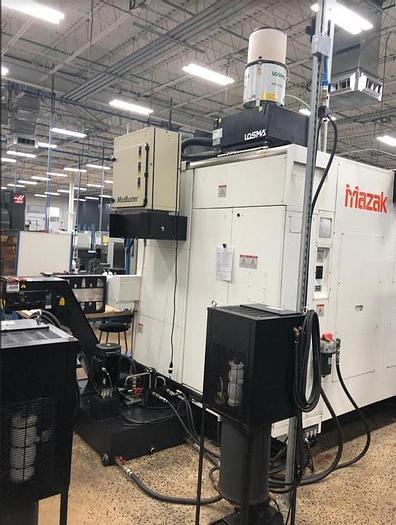

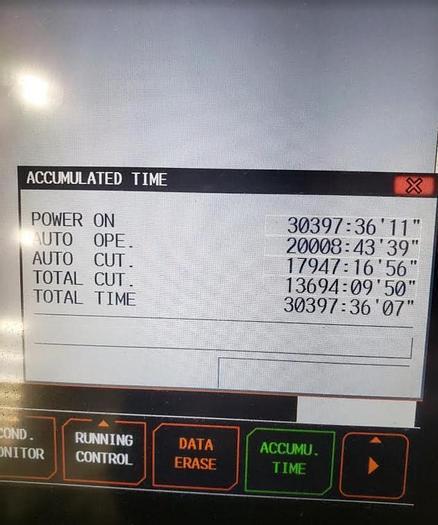

2015 MAZAK Integrex i100S Mill-Turn Center

Specifications:

Max Swing Over Carriage: 20.9"

Max Machining Diameter: 19.7"

Max Cutting Length: 33.6"

Max Distance Between Chuck Jaws: 35.55"

X-Axis Stroke: 17.72"

X-Axis Below Spindle Center Line: 1.96"

Z-Axis Stroke: 35.59"

W-Axis Stroke (Second Spindle): 35.55"

Y-Axis Stroke: 8.27", +/- 4.13"

B-Axis Stroke: (0.0001 Degree incr.) 240 Degrees

B-Axis Travel: -30 to 210 Degrees

C-Axis Control - Main/Second Spindle: True C-Axis

Main Spindle Chuck Size: 6" Diameter

Main Spindle Bar Capacity: 1.65"

Main Spindle Speed: 6,000 RPM

Main Spindle Index - Prog True C: 0.0001 Degree

Main Spindle Motor: 10/15 HP

Main Spindle Power: 105 Ft Lbs

Main Spindle C-Axis Clamping Torque: 1,315 Ft Lbs

Second Spindle Chuck Size: 6" Diameter

Second Spindle Speed: 6,000 RPM

Second Spindle Index - Prog True C: 0.0001 Degree

Second Spindle Motor: 10/15 HP

Second Spindle Power: 105 Ft Lbs

Second Spindle C-Axis Clamping Torque: 1,315 Ft Lbs

Type of Turret: 1 Position

Turret Positioning: 0.0001 Degree (B-Axis)

Rotary Tool Spindle Motor: 7.5/10/12 HP

Rotary Tool Spindle Speed: 12,000 RPM

Tool Magazine Capacity: 36 Tools

Tool Selection Method: Random

Tool-Tool Time: 1.3 Sec

Maximum Tool Diameter (full) 3.54"

Maximum Tool Diameter (adjacent empty) 5.12"

Maximum Tool Length: 9.84"

Maximum Tool Weight: 11 Lbs

Rapid Traverse:

X/Y/Z-Axes: 1575 IPM

W-Axis: 1181 IPM

C-Axis: 555 IPM

B-Axis: 40 IPM

Equipped With:

Mazak Smooth HX Control

Kitagawa BB-206 A5 Chucks

Dual Spindle, Dual Chuck

36 ATC Capto Tool Magazine

Tool Holders

Collet Chucks with Collets

Chip Conveyor

Additional Options:

19" Color CRT

EIA/ISO, Additional EIA/ISO Functions

3-D Coordinate Conversion

G00 Slope Constant

Cylindrical (G12) (EIA)

Independent Rotation

C Axis 0.0001 Increment (1st spindle)

15 HP A2-05 Spindle Nose 1st Spindle

15 HP Second Spindle C Axis 0.0001 Increment

Chuck Air Blast 1st and 2nd Spindle

Rotary Tool Speed 12,000 RPM

B Axis Contouring 0.0001 Degree

36 ATC Capto Tool Magazine

6” Dia. Through Hole Chuck for Second Spindle

Kitagawa BB-206 Chuck

Automatic Tool Eye

Coolers for Ball Screws X, Z-Axes

Automatic Parts Catcher with Ejector

5-Axis Machining Package For Smooth hx

Tool Radius Comp 5 Axis (G41.5/G42.5)

Signal Tower (3) Lights

Software Upgrade To Support Windows 8

Standard 230 Volt Electrics

Re-Threading Function

ATS System True Length Collet

Error Compensation G54.4

EIA Dynamic, Compensation 1, Work Setting

Draw Bar Adaptor For Optional 2” Bar Capacity Package

Fire Suppressant System

Turret Air Blast

Flood Coolant Nozzle

213 PSI Through Coolant

X,Y,Z Pitch Error Compensation
