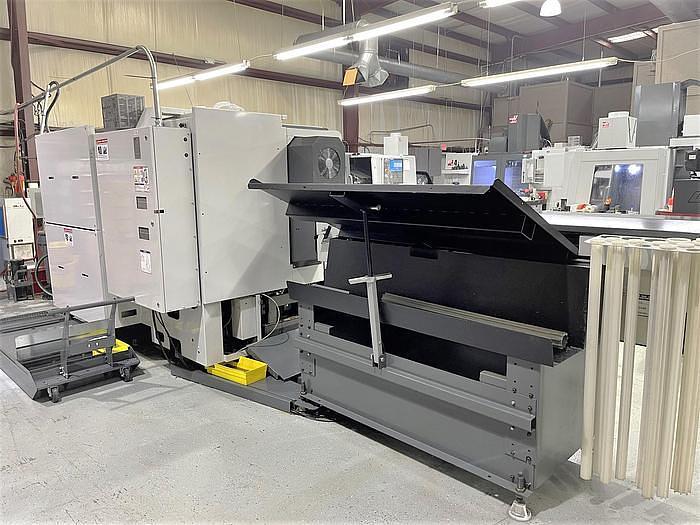

2013 HAAS DS 30Y CNC Turning Center with Bar Feeder

Excellent Condition

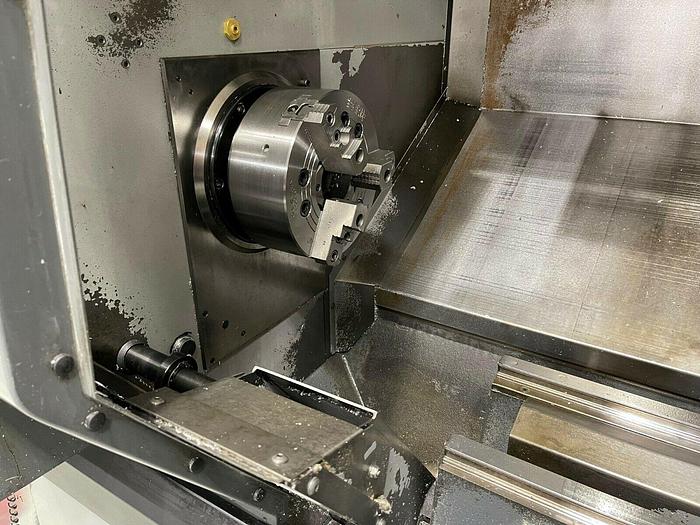

10" Hydraulic 3 Jaw Chuck on Main Spindle

8.3" Hydraulic 3 Jaw Chuck on Sub-spindle

3,400 RPM Spindle A2-6

3.5" Spindle Bore

3" Bar Capacity

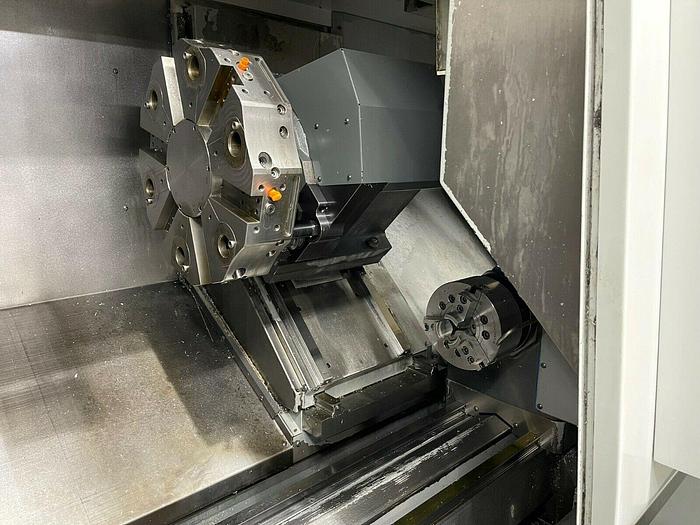

12 Station Hybrid VDI/BOT Type Turret

Parts Catcher

Rigid Tapping

Spindle Orientation

X-axis travel 12.5”

Z-Axis Travel 23”

Y-Axis Travel +/- 2.0"

3,000 RPM Full C Axis Live Milling

High Torque Live Tooling w/C-Axis

31.75" Maximum Swing

20.75" Maximum Swing Over Cross Slide

16" Maximum Cutting Diameter

23" Distance Between Spindles

3,400 RPM Sub-Spindle A2-5

2.44" Sub-spindle Bore

High Intensity Lighting

Auto Jet Air Blast

Internal High Voltage Transformer 380V - 480V

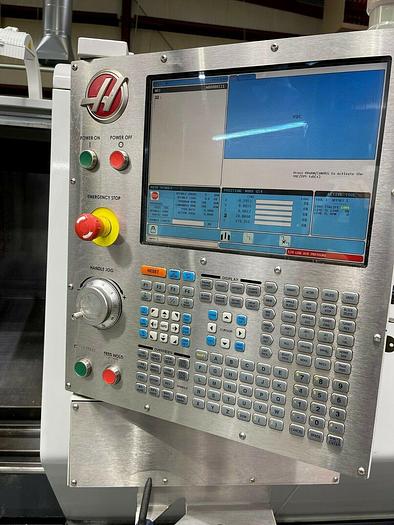

USB Port Interface

RS 232 Port Interface

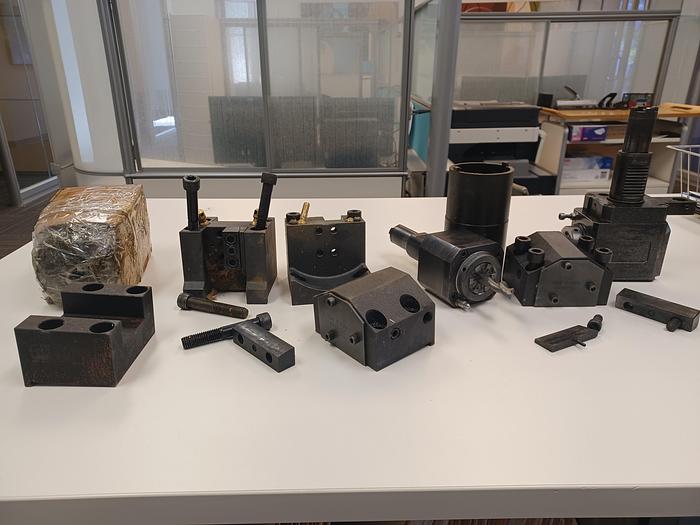

Includes (2) Live Holders, (1) Axial and (1) Radial

Coolant Tank

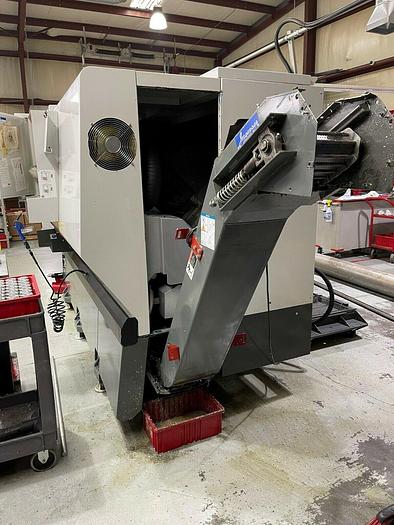

Chip Conveyor

All Available Static Tool Holders

All Available Manuals
