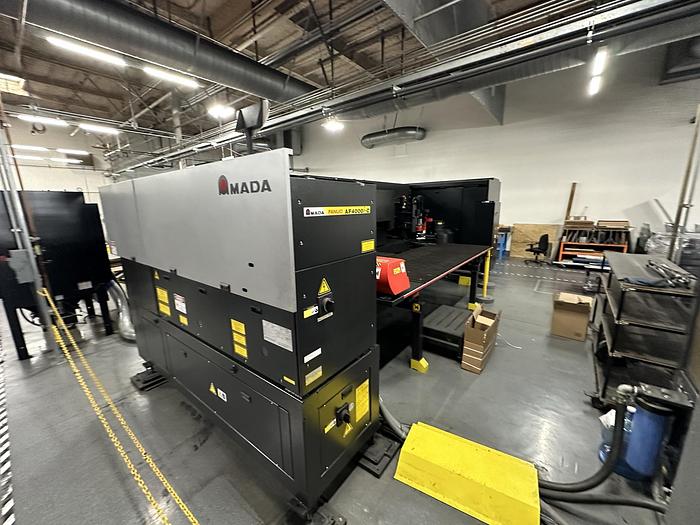

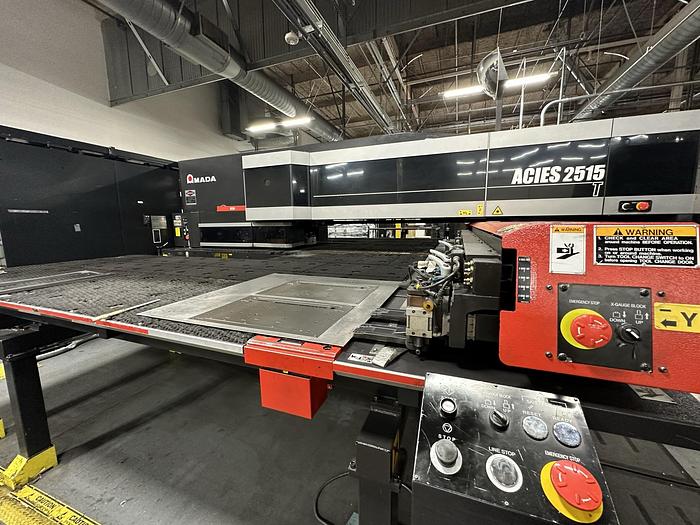

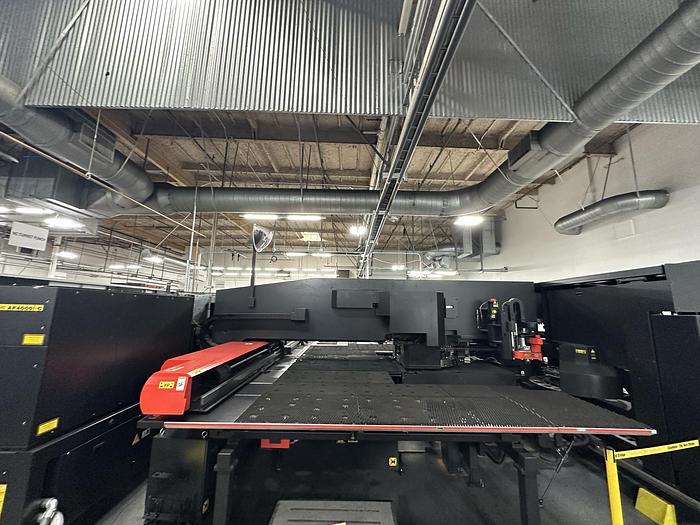

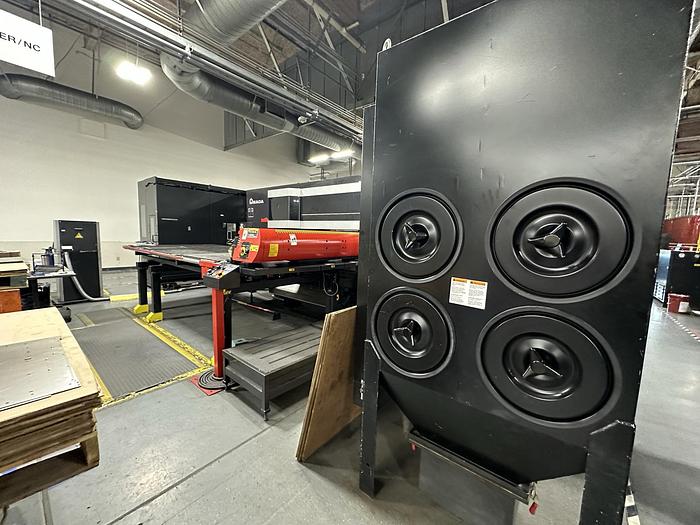

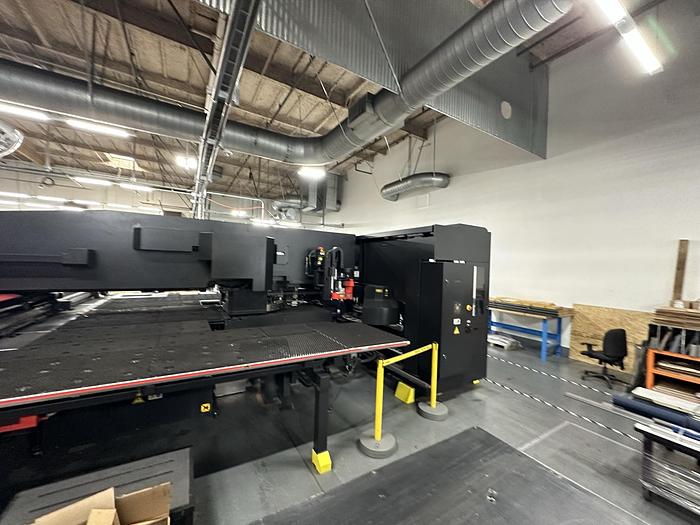

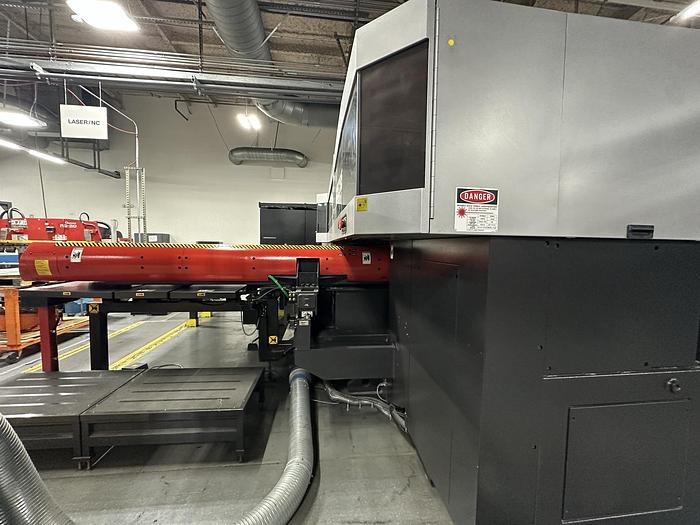

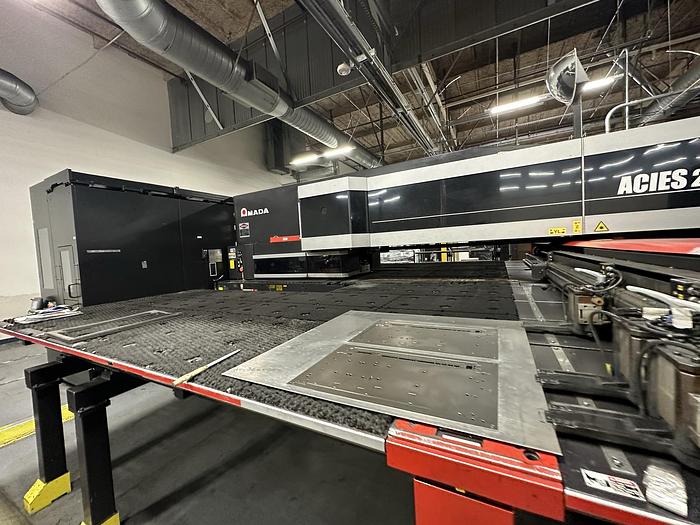

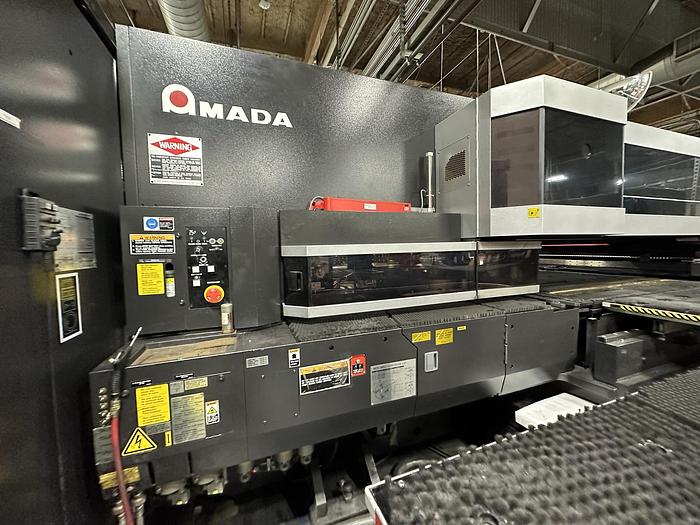

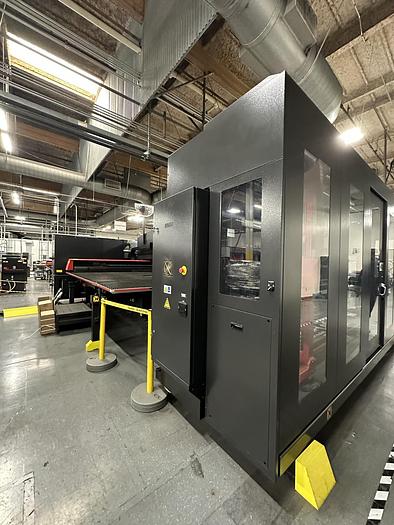

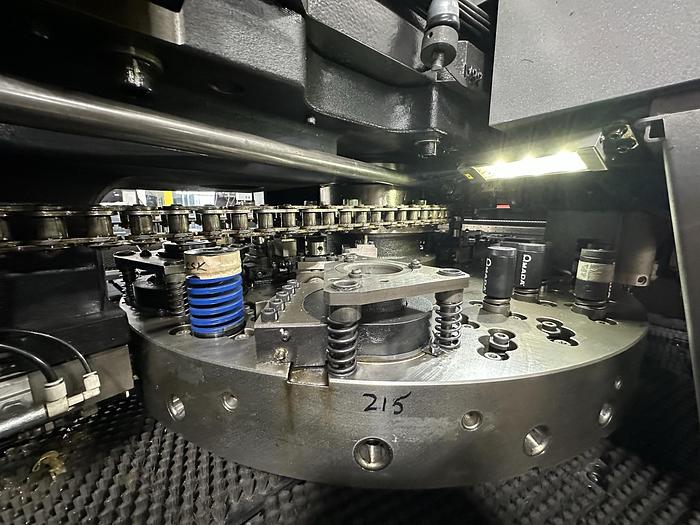

2013 Amada Acies 2515T Punch/CO2 LASER WITH TOOL LOADER, TOOLING, SPINDLE

Excellent Condition

7202 Cutting Hours

Punching Operation (x,y): 60" x 120"

Laser Operation (x,y): 60" x 98"

Combined Work Area With Repositioning: 60" x 120"

Z-Axis Laser: 3.937"

Maximum Material Thickness: 0.250"

Table Loading Weight: 330 Lbs

Traverse Speed (x/yp): 3,937/3,149 ipm

Laser Axis (yl): 3,149 ipm

Axis Simultaneously: 5,039 ipm

Z-axis Simultaneously: 2,362 ipm

Processing Accuracy (Amada's Punching Pattern): +/- ).0027"

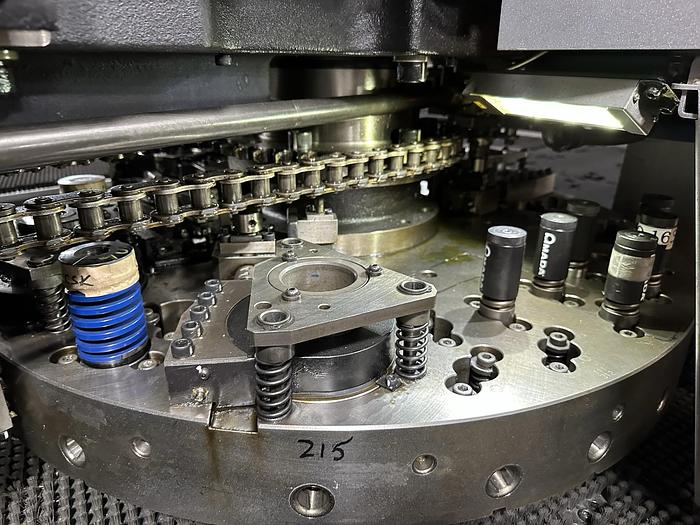

Z-Turret: 32 Stations (max. 4.5")

Included Rotation Stations: 4

Buffer Turret: 33 Stations

Punching Force: 33 Tons

Eco-friendly energy saving system

The flexible position of an independent control

Maintenance-free electric drive

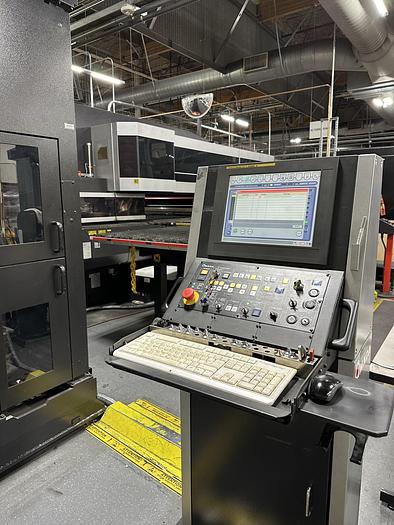

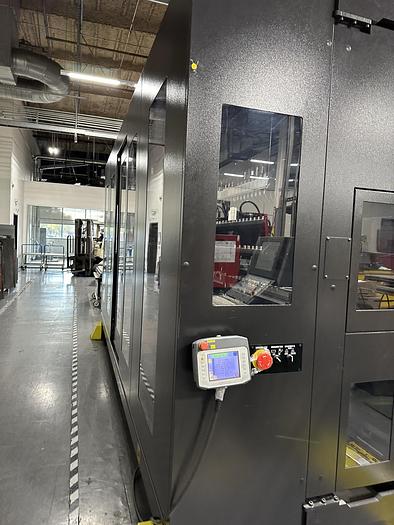

AMNC touch screen control

Extensive laser cutting database

No dies required

Quick change lens and nozzle system

Tool Identification System (with QR codes)

ZR Turret - Flat brush table ensures scratch-free parts

High speed drilling and marking

Higher processing speeds to form

Independent laser head axis

Multi-Purpose Turret (MPT)

Different turret configuration options

The air blowing tool lubrication system

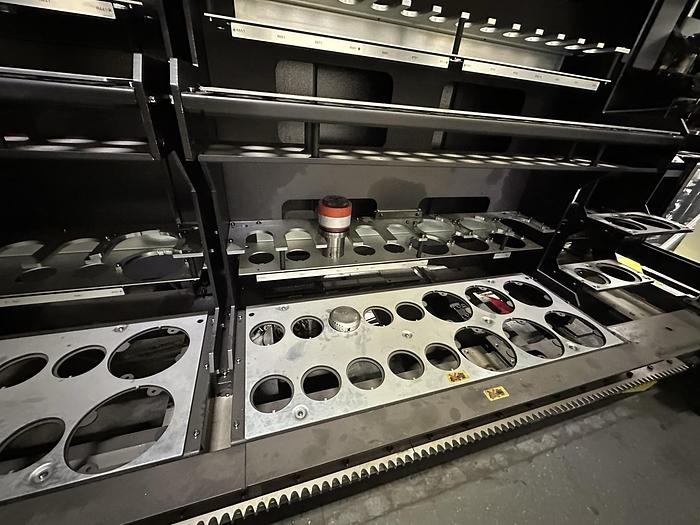

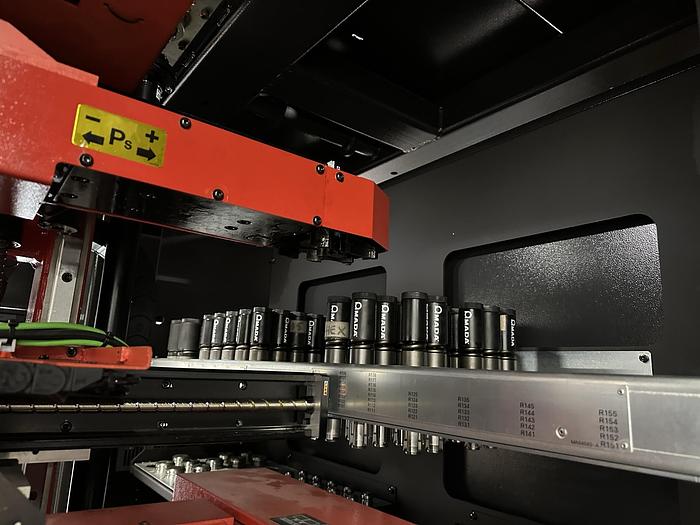

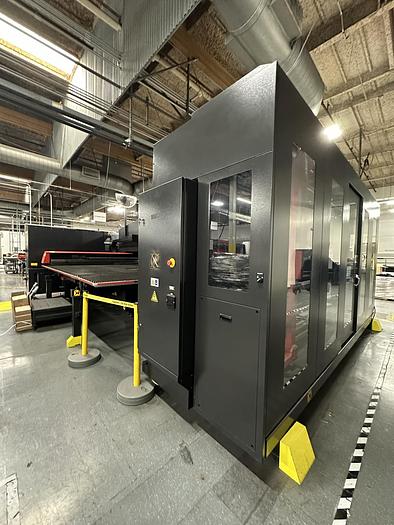

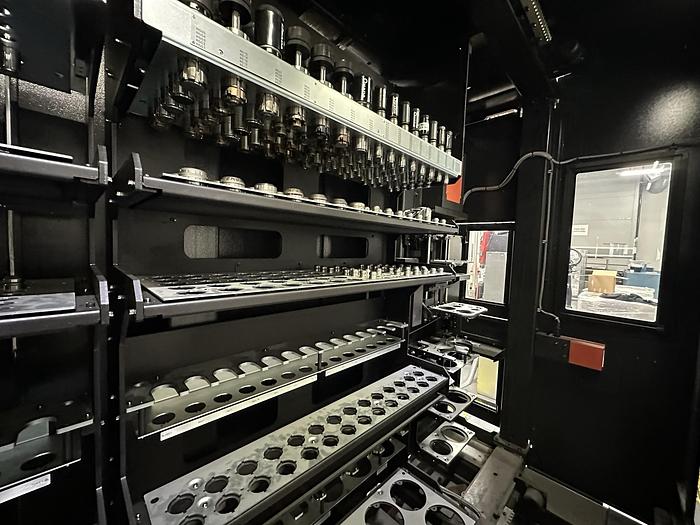

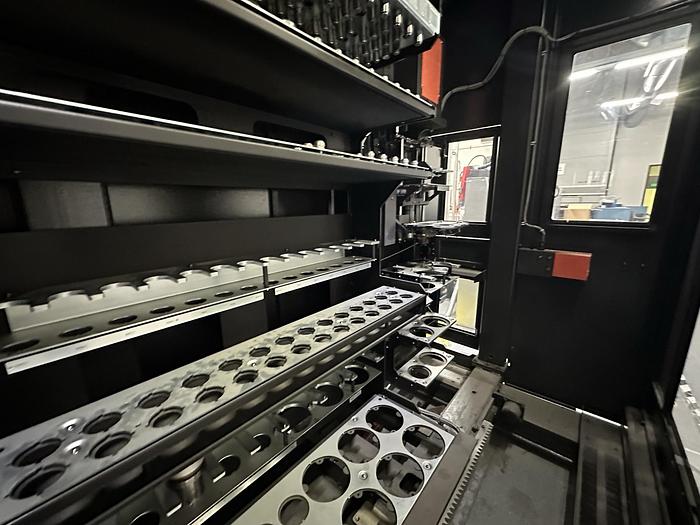

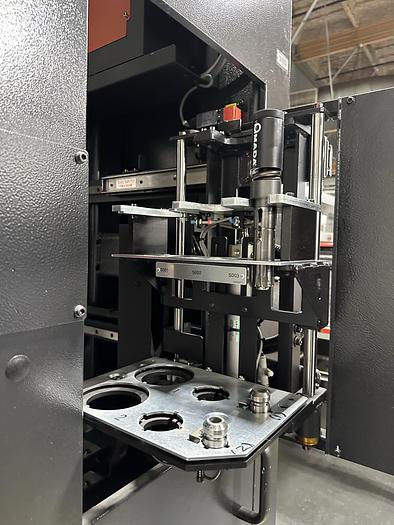

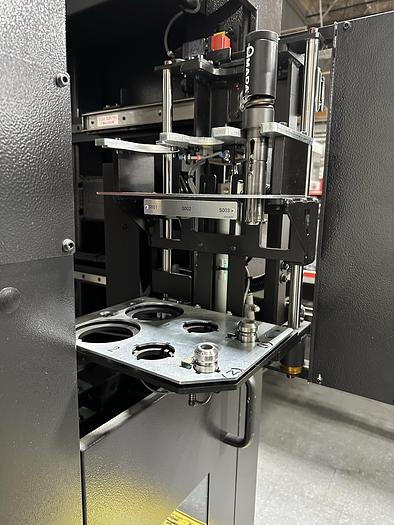

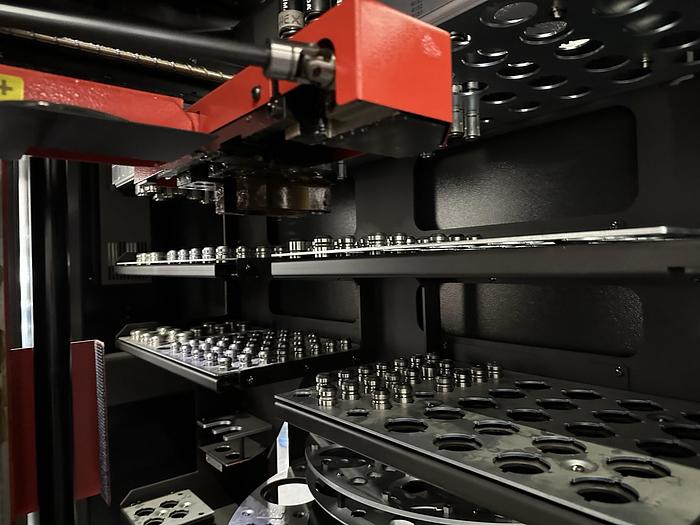

Loader Turret - To park and load tools

Die vacuum system eliminates waste pull

Door to remove small parts or debris

Machinery options for loading/unloading parts

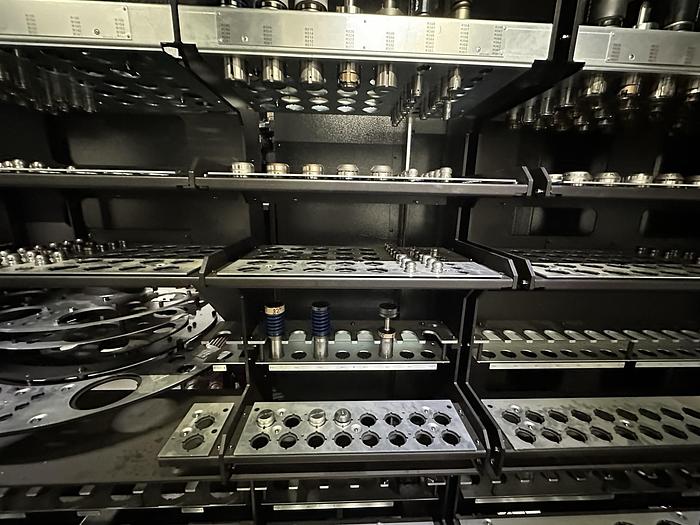

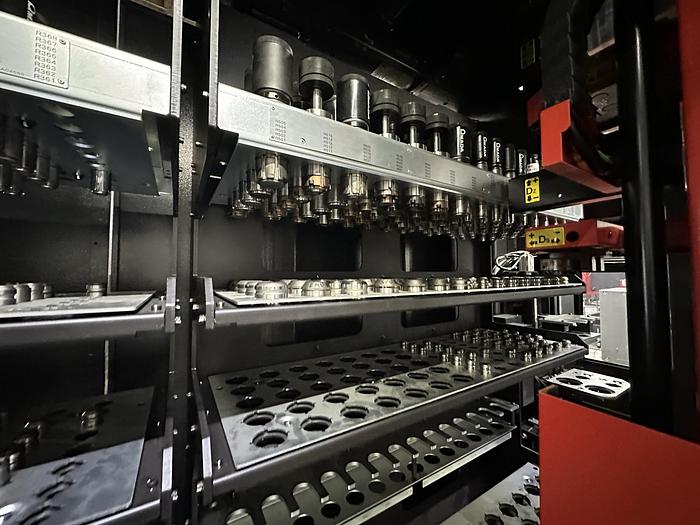

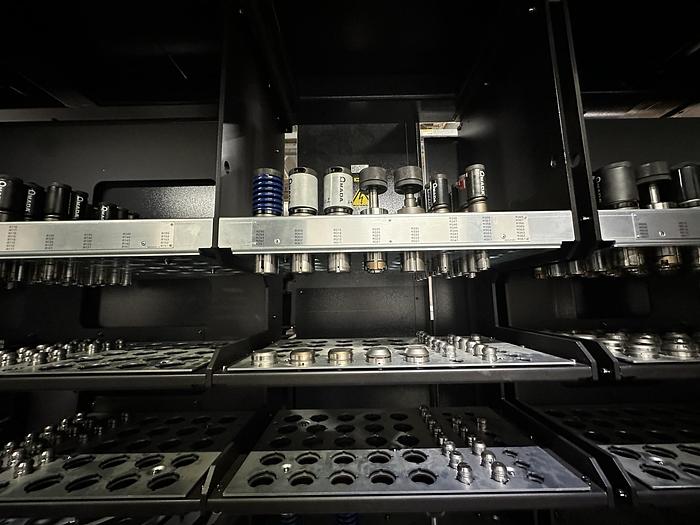

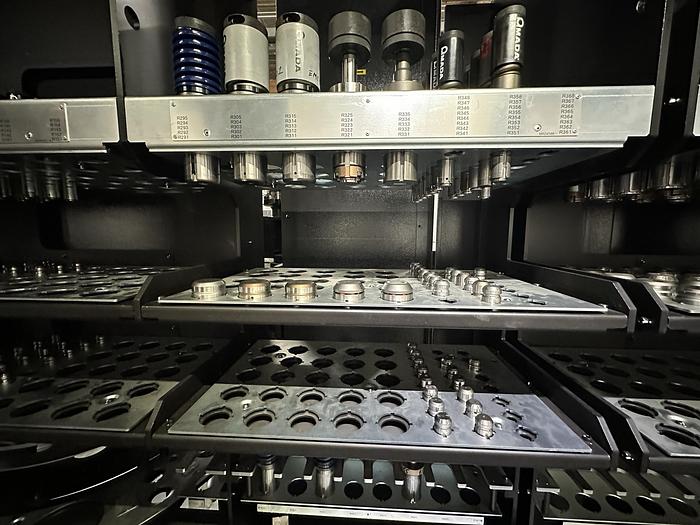

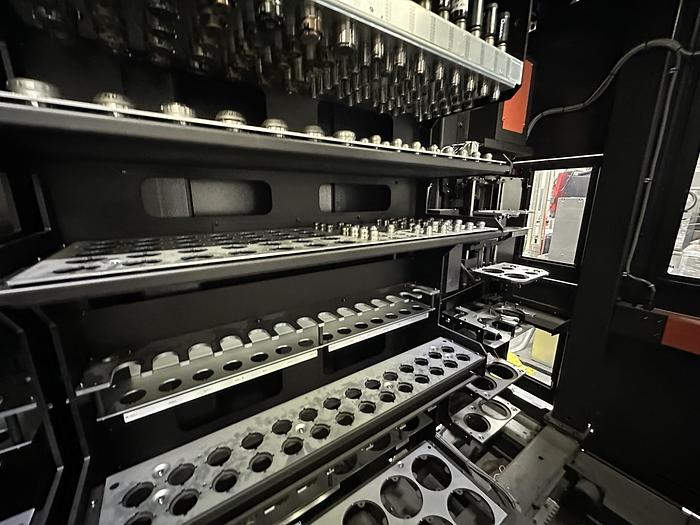

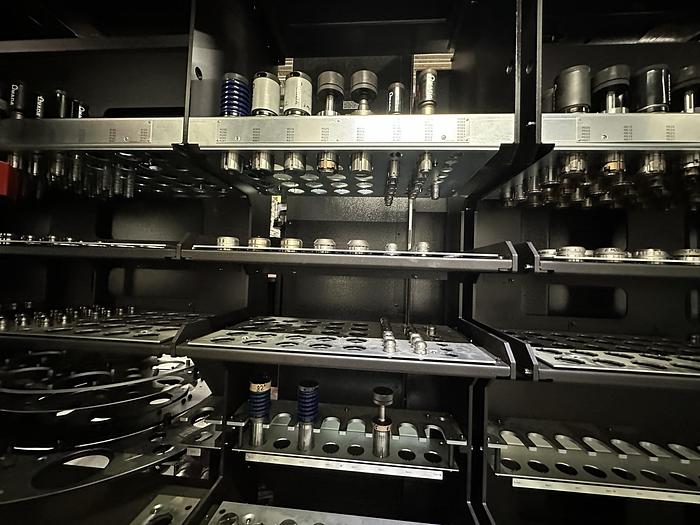

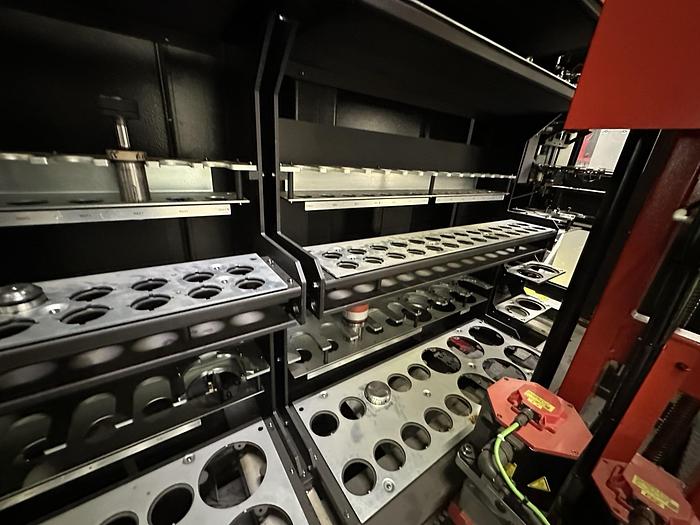

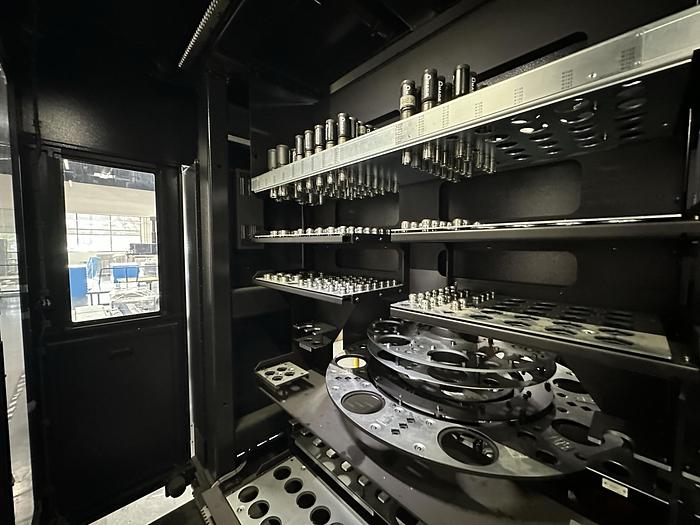

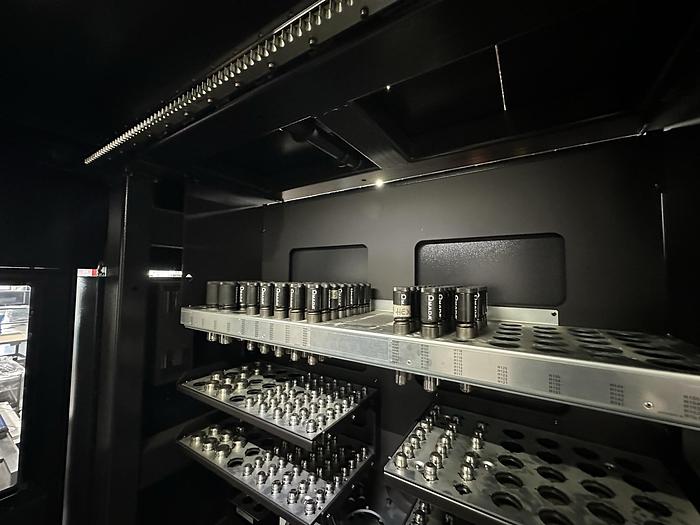

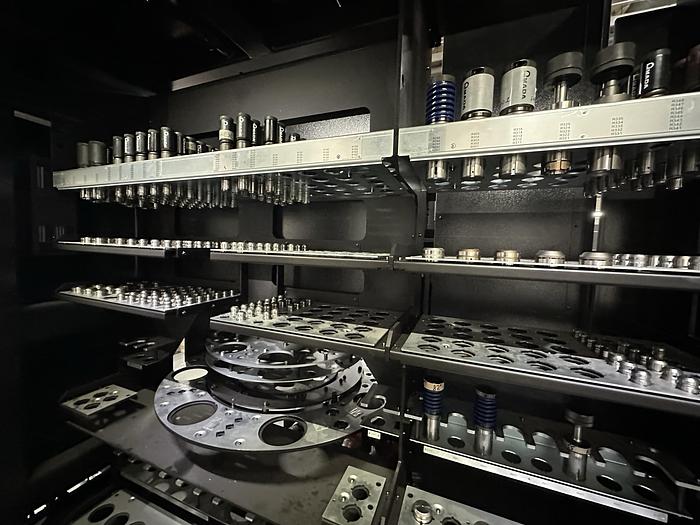

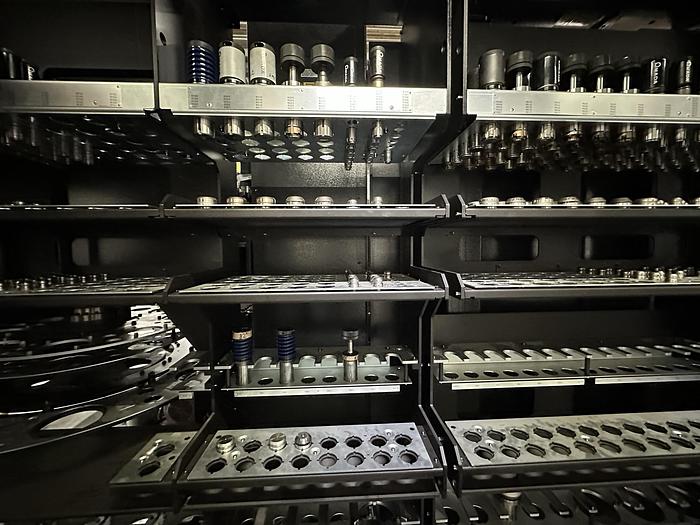

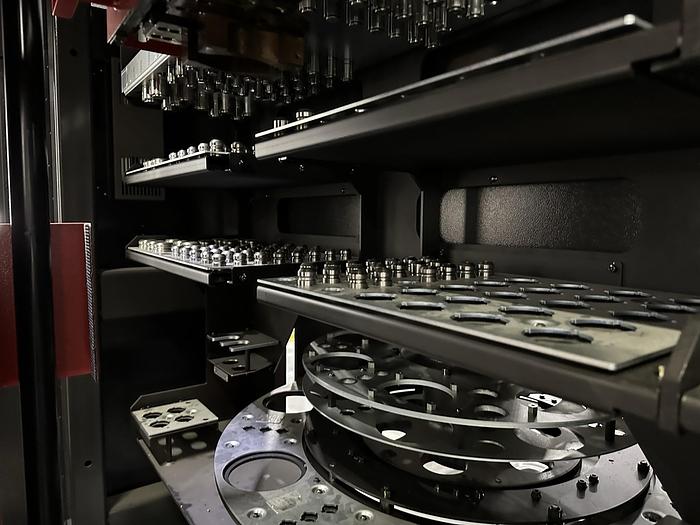

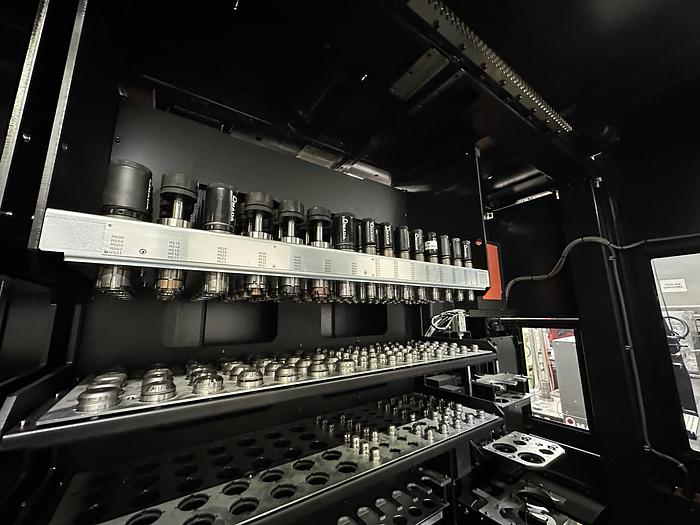

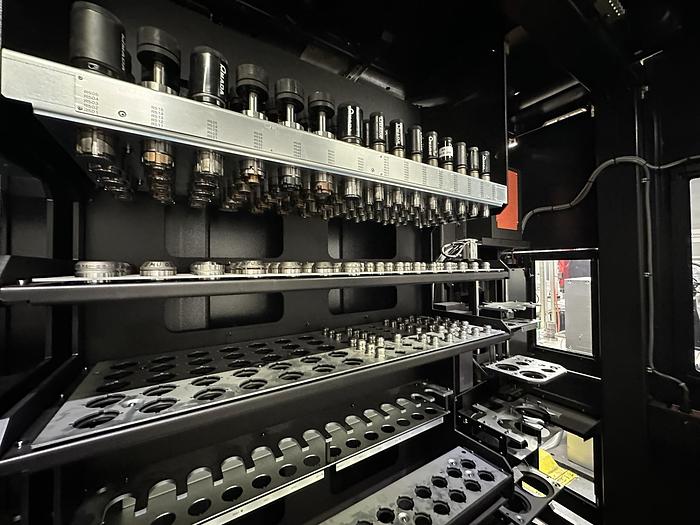

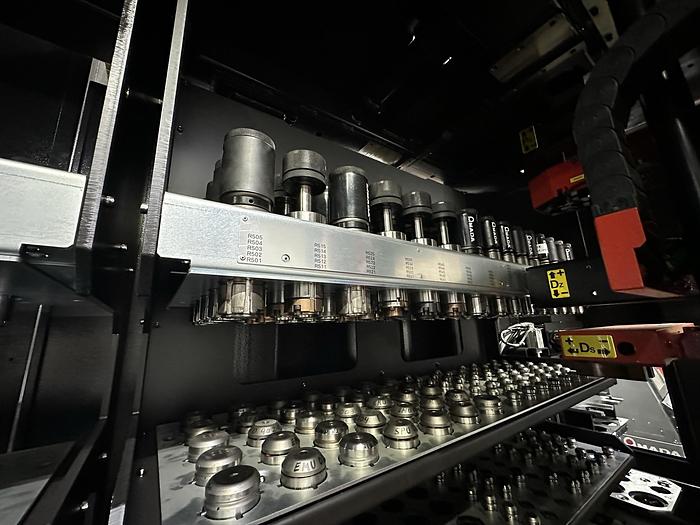

TSU - Tool storage options: up to 404 punches and 808 dies

Number of Punching Strokes

0.197" Stroke/0.039" Feed: 630/min.

0.197" Stroke/0.039" / I" feed: 400/min.

In Marking Mode: 1850/min.

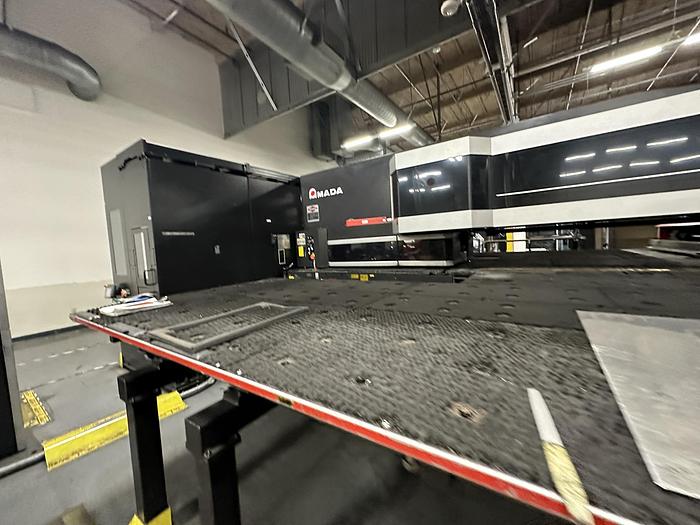

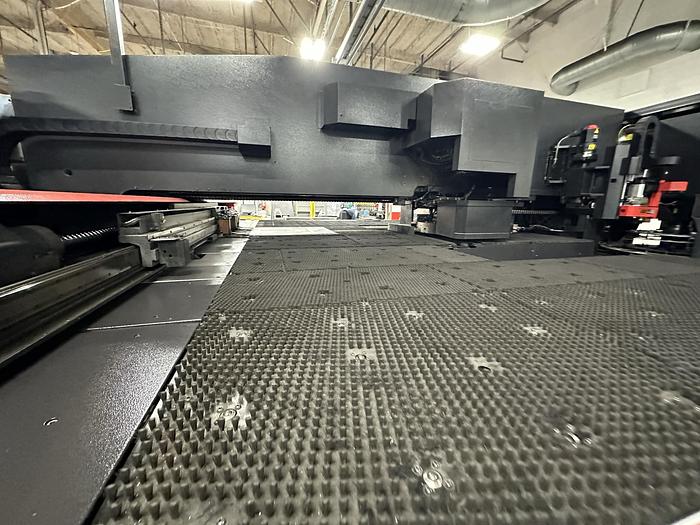

Table Design: Brush Table

Parts Chute: 15.75 x 60"

Machne Frame: Bridge Frame

Press Drive: Servo-Electric Drive

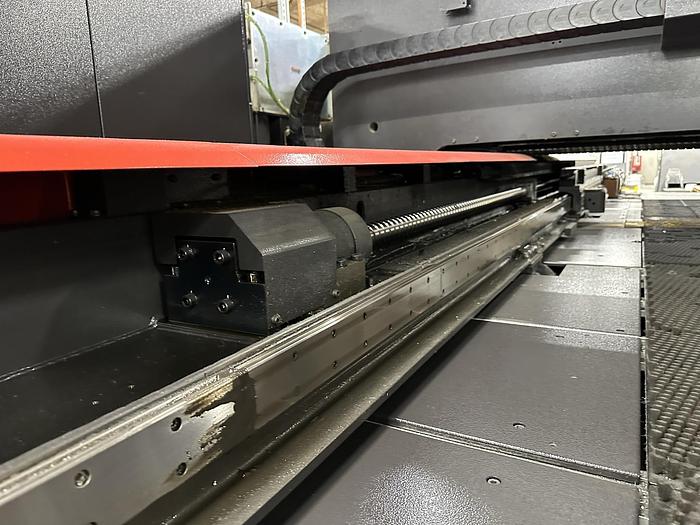

Turret/Table Drive: AC-Servo Motors

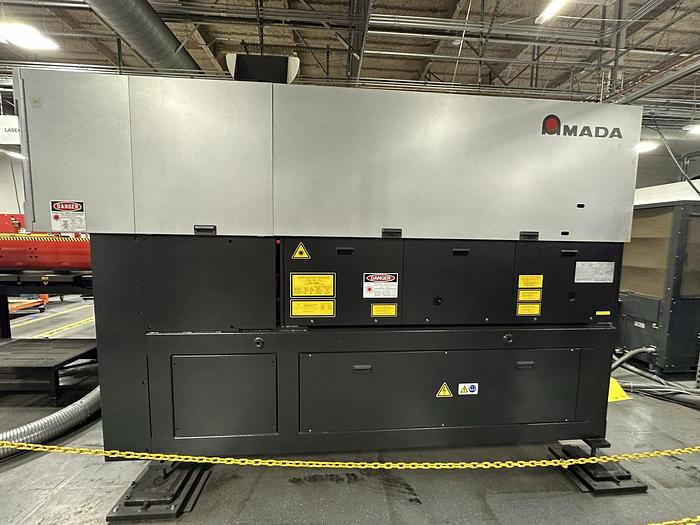

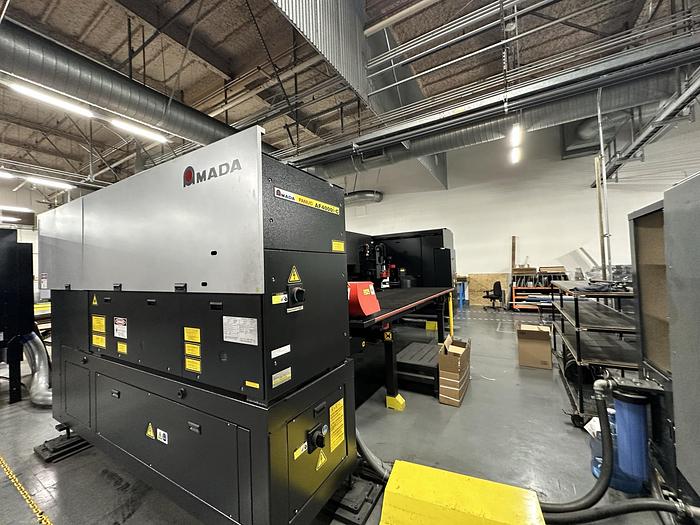

Oscillator

Continuous Laser output: 4 KW

Fanuc 4000 i-c

Multimedia CNC Control

Model: Fanuc 31i

Storage Capacity: 440 kB

Number of Controlled Axes: 6 (not including tool changer)
