2021 DOOSAN LYNX 2100LSYA Live Tooling / Y-Axis / SubSpindle/ Bar Feeder CNC Lathe ***Low Hours***

Excellent Condition Low Hours

6,000 RPM Main Spindle

6,000 RPM Live Tool Holders

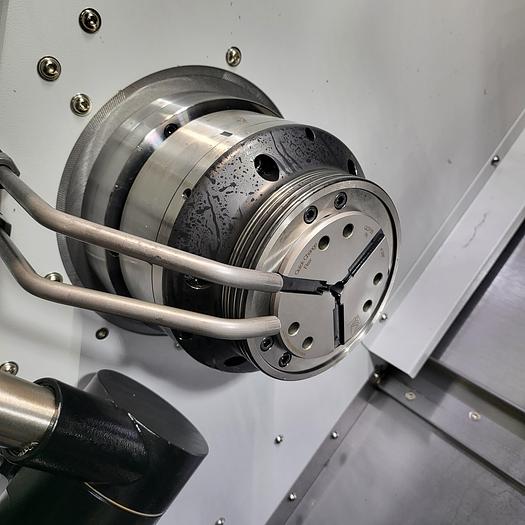

6" Chuck

2" Bar Capacity

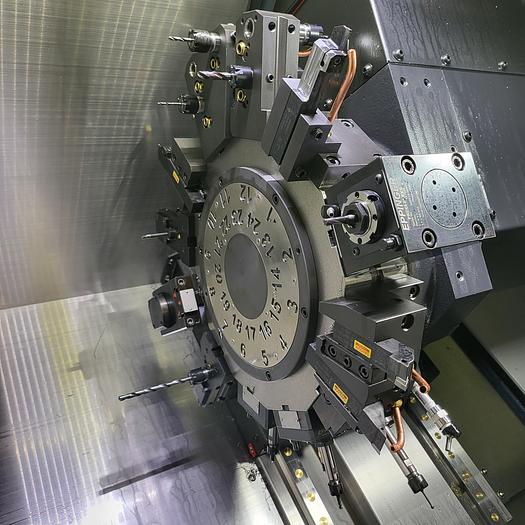

12 Station Turret

BMT-45

Y axis

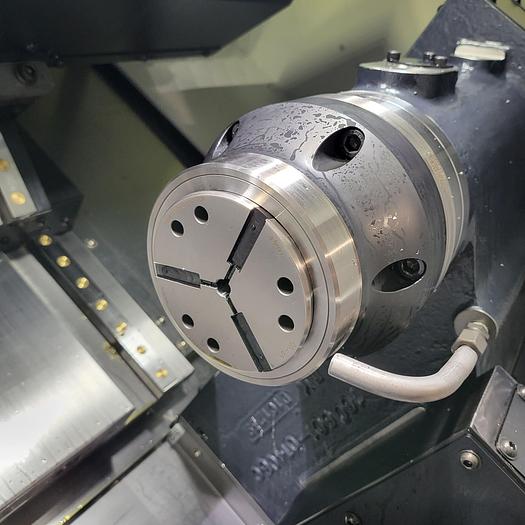

SubSpindle

23.6" Swing over bed

15.7" Swing over carriage

11.8" Maximum turning diameter

20.0" Maximum turning length

30.4" Distance between main and sub spindle nose

8.07" X axis travel

±2.065” Y-axis travel

22.0" Z axis travel

48" LNS Bar Feeder

Programmable part catcher and part conveyor

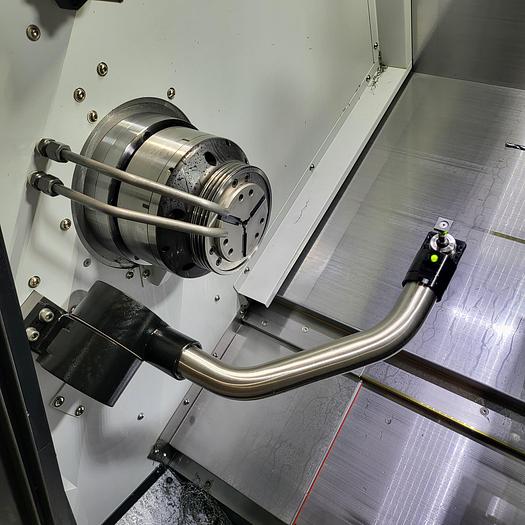

Automatic Tool setter

Sub spindle part ejector with coolant flush

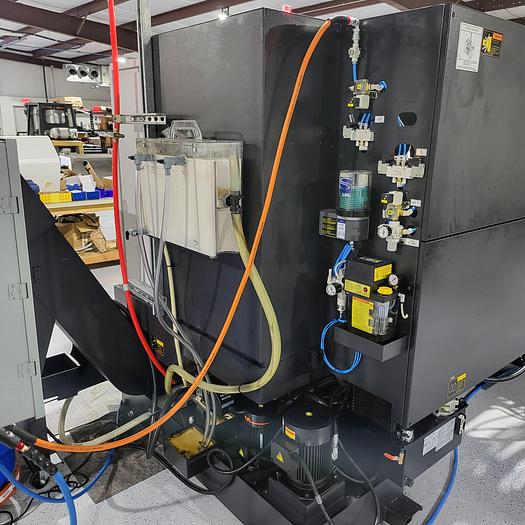

65 psi multi-stage coolant pumps

Separate coolant tank with way lube oil skimmer

Automated metered lubrication system with oil skimmer

580 psi Hydraulic Unit

Air Blast System

12 Station Turret / 24 Position Indexing

1,417 ipm Z axis rapid traverse

Full contouring C-Axis on main and sub spindle

Rigid Tapping

FANUC 0i-T control
