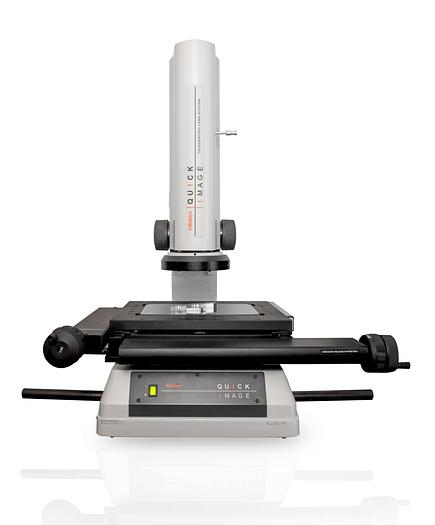

Mitutoyo QI-A2010C Vision Measuring System

8" X-Axis

4" Y-Axis

4" Z-Axis

High-resolution Measuring Mode and Normal mode

Accuracy(on monitor): QI-A models 2µm (high-resolution mode), ±4µm (normal mode)

Measuring accuracy (U1XY): ±(3.5+0.02L)µm L = measuring length (mm)

Repeatability: QI-A models 1µm (high-resolution mode), ±2µm (normal mode)

CCD Camera: 3 Megapixels,1/2 inch color CCD camera

Optical system: Magnification- 0.2X, double telecentric system

Working distance-90mm

Depth of focus-±0.6mm (high-resolution mode), ±11mm (normal mode)

Illumination: Contour Surface 4-quadrant LED

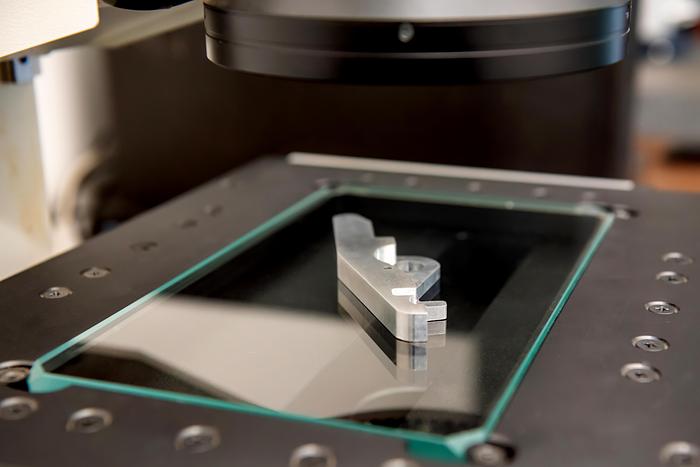

Stage glass size: 9.5x5.5in 242x140mm

Max.loading: 10kg 22lbs

Mass: 163lbs 74kg
