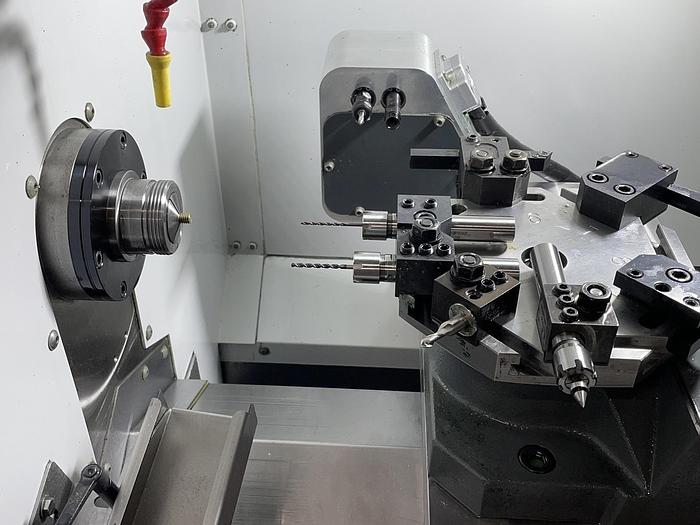

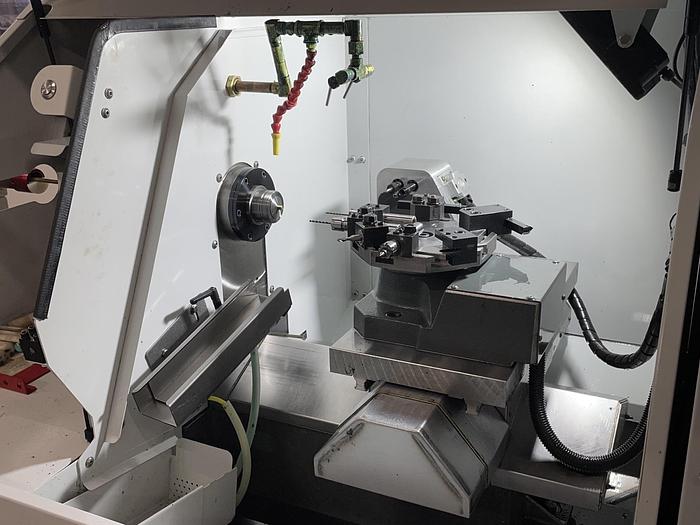

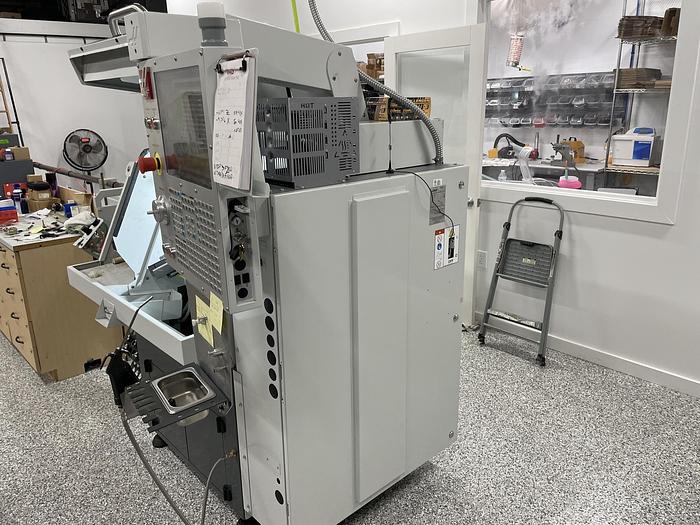

2019 HAAS CL-1 LIVE TOOLING COMPACT LATHE

200 Cutting Hours

6,000 RPM Spindle

5C Spindle Nose

1" bar capacity

Live Tooling with C axis

Dual ER-11 spindles

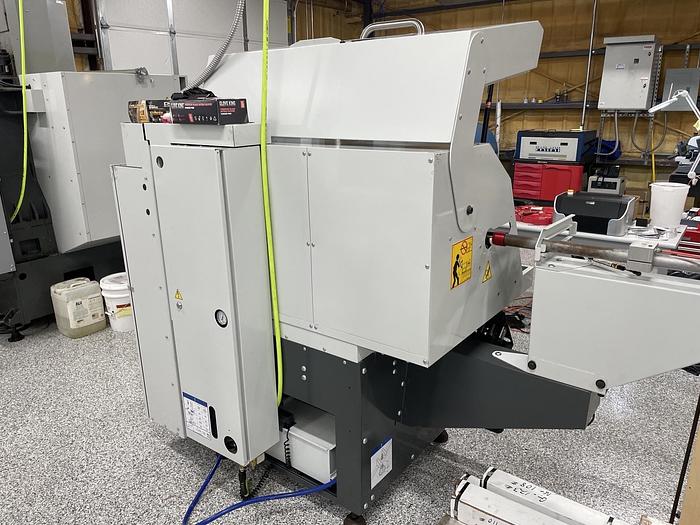

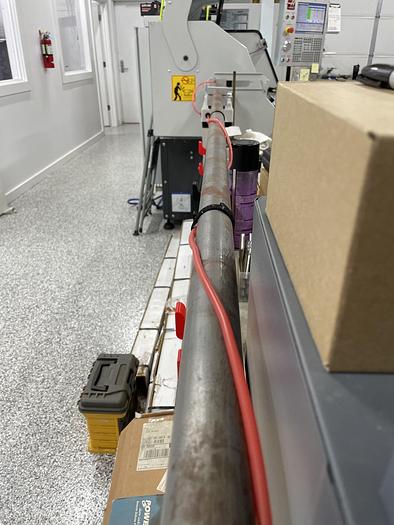

6-Foot Bar Feeder

Swing 11"

Chuck Size 4"

Bar Capacity 1"

Rigid Tapping

Uses gang-style tooling with 1/2" (12.7 mm) centers

5 HP

Belt Drive

0.25" to 1.0" (6.4 – 25.4 mm) diameter bar by72" Parts Catcher System

rotates into position to catch a finished part as it is cut off; allows for unattended machining

4" 3-Jaw Manual Scroll Chuck

6K-5HP-5C spindle

1 GB Memory

8-Station Tool Turret; uses gang-style tooling with 1/2" (12.7 mm) centers.

Standard toolholder kit included.

13 Gallon Coolant Pump

Ethernet

Haas Connect

Rigid Tapping

Spindle Orientation

OD and ID clamping Spindle Orientation

Dimensions 78" X 62" X 80" Weight 1940

Runs on (1 Phase) 220 VAC or (3 Phase) 220VAC
