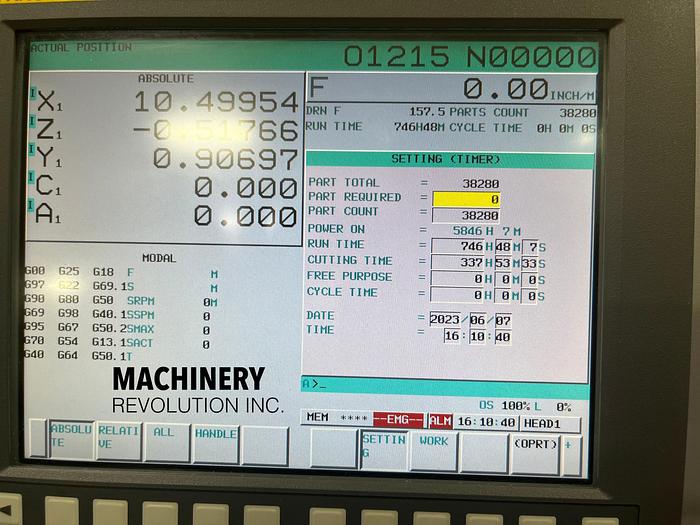

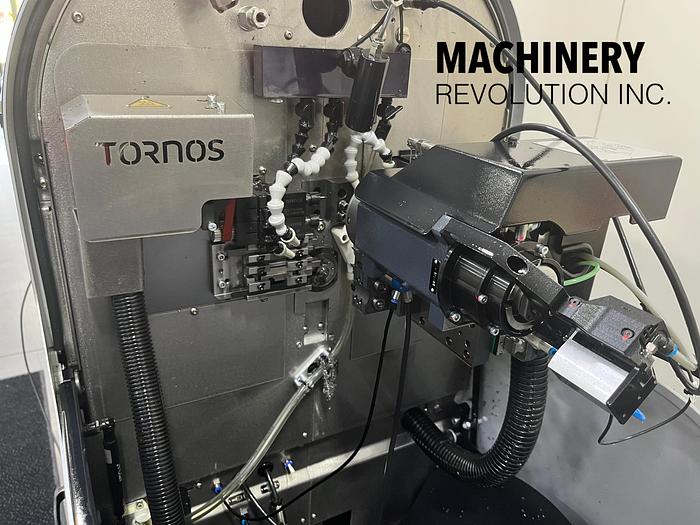

2019 TORNOS SWISS NANO 4 ***Only 337 Cutting Hours***

Excellent Condition Like Brand New ***357 Cutting Hours***

16,000 RPM Main Spindle (Z1/S1/C1)

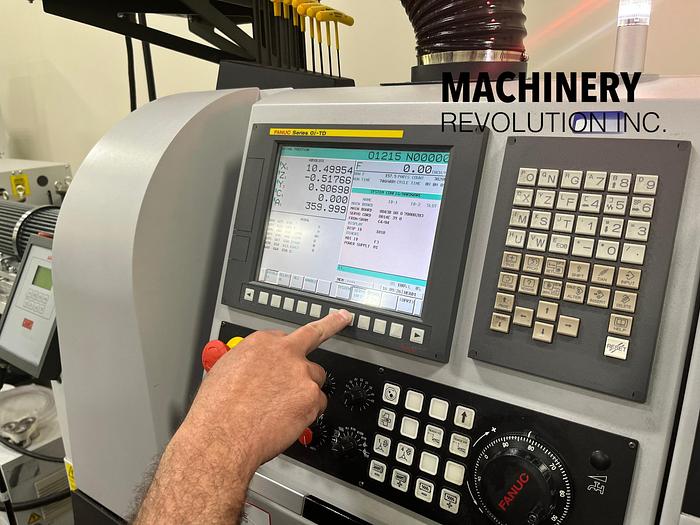

Fanuc Oi TF Plus Control

4 mm Bar Capacity

28 mm Max Work Piece Length

Main Gang (X1/Y1/S11)

8 Tool Positions on Guide Bush

8x8 Turning Tool Section

3 Positions for Radial Rotation Tools

10,000 RPM Tool Speed

M3x5 Rotating Tool/Steel Tapping Capacity

Ø 2.5, f=0.15 mm/rev Steel Drilling/Rotating Tool Capacity

End attachment and counter spindle (X4 / Y4 / Z4 / S4)

3 x Ø 16 Number of Tool Positions

4 mm Max Counter Spindle Capacity

26 mm Insertion Length

16,000 RPM Counter Spindle Speed

M3x5 Rotating Tool/Steel Tapping Capacity

Ø 2.5, f=0.15 mm/rev Steel Drilling/Rotating Tool Capacity

Counter-Operation

2 x Ø 16 Number of Tool Positions

2 Position Rotating Tools

10,000 RPM Tool Speed

Equipped With:

Support Block for Collet Holders with 4 Bores

Support Block for Collet Holders with 3 Bores (12mm) for Counter OPS

Synchronous Rotating Guide Bushing

Kit for Machining without a Guide Bushing

Tisis Software

Venturi Parts Catcher

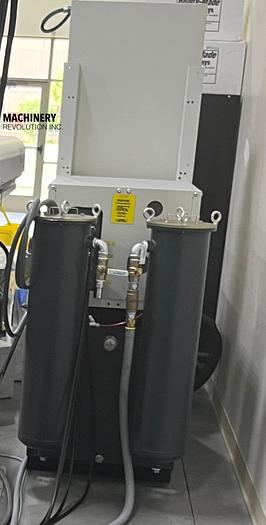

Oil Mist Extraction Device

Probe for Tool Breakage control BK-Micro

Chip Blaster High Pressure 8 Port Coolant Injector

Support Block H.F Spindle

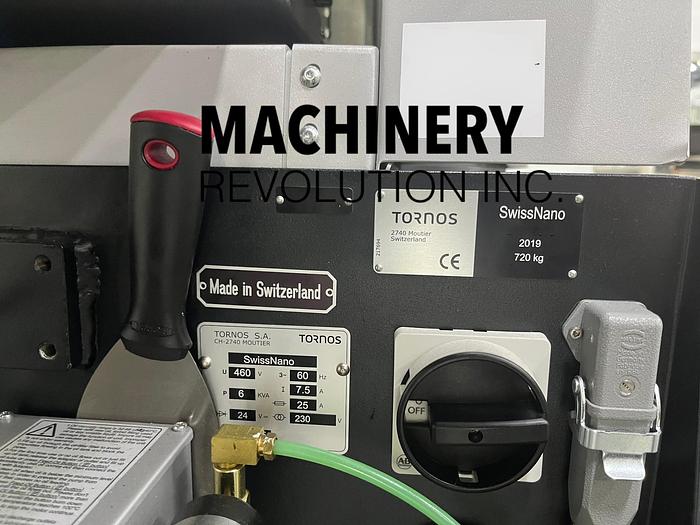

Voltage 220-240 V 60 Hz +/- 5%

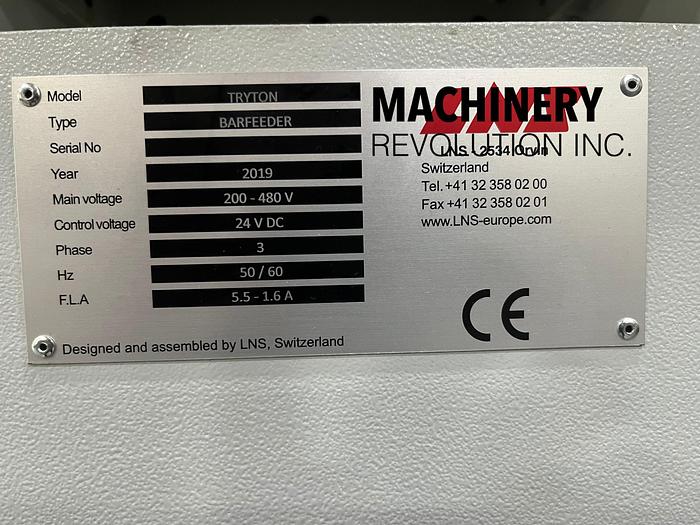

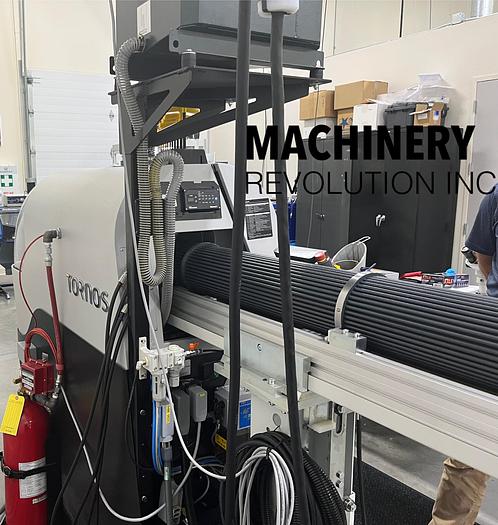

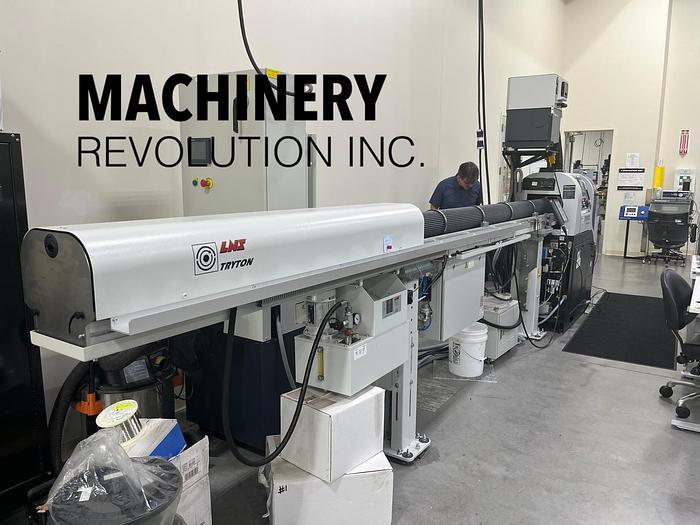

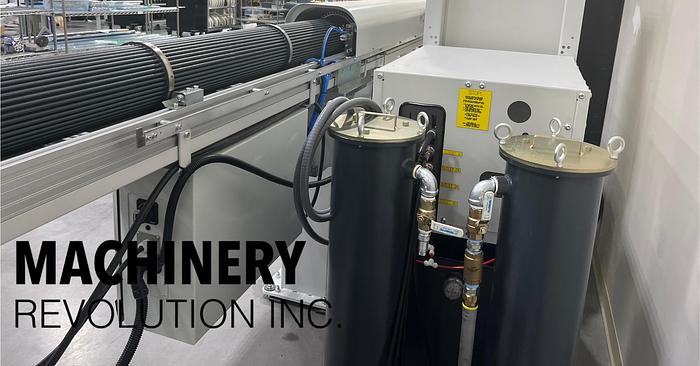

LNS Tryton 12' Automatic Bar Loader

NSK Control Unit NE273 for 2 Spindles

NSK Airline Kit

2 Motor Cord EMCD-BM3

2 NSK Sensorless Spindles

Module for 2 cross rotating spindles

Spindle Centering System Mowidec

Turn Key P/N Container G2TR Extended; Cycle Time 45 sec. MAX

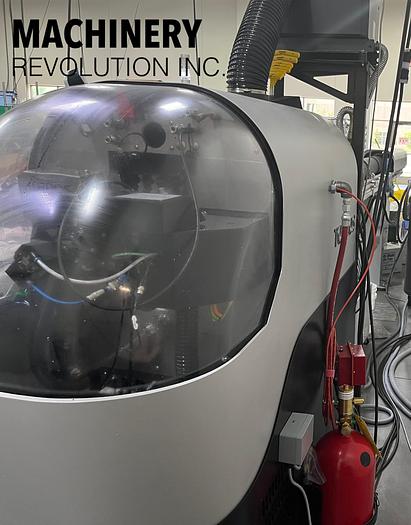

Nardini Fire Extinguisher
