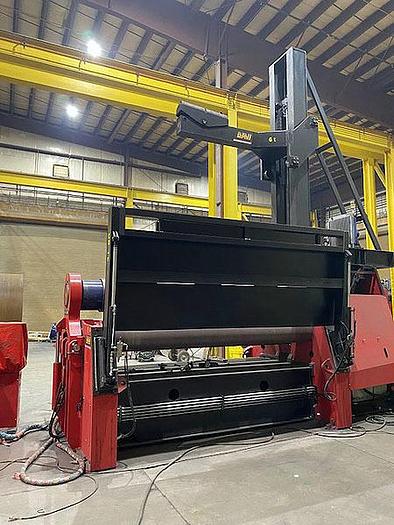

2021 DAVI MCB I30 PLATE ROLL

LENGTH OF ROLLS 10' and NEW EXTRA ROLL 13'

MAX THICKNESS 1.6"

# ROLLS 4

HYD POWER REAR ROLL

POWER 60 hp

ROLL DIAMETER 18"

CNC CONTROL

UP TO 13, 200 LBS CAPACITY, 135 MAX. DIAMETER HYDRAULIC OVERHEAD SUPPORT

UP TO 6,600LBS FRONT / REAR

16.1" CROWNED FOR .500:" MATERIAL IN A516

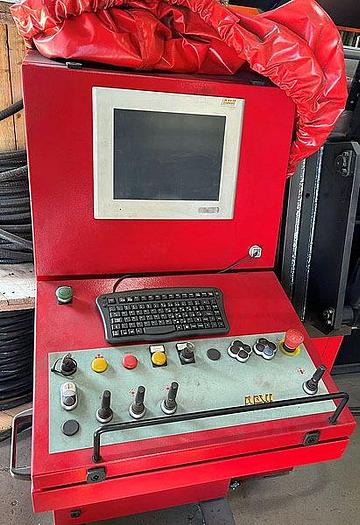

Davi iRoll-Aided" CNC Control

Rolls Crowning Top and lower

Rolls guiding Friction-free, mill-scale-proof, lubrication-less planetary guides

Roll position Linear transducer with an accuracy of 0.004”

Rolls Tilting for cone bending

CAPACITY:

Roll Length .......................... 122"

Top Roll Diameter .................... 18.2"

Bottom Roll Diameter ................. 16.6"

Side Rolls Diameter .................. 14.2"

Rolling Speed ........................ 20 FPM

Main Drive Motor ..................... 72 HP

Approximate Dimensions ............... 248" x 91" x 95"

Approximate Weight ................... 48,500 Lbs

EQUIPPED WITH:

Davi iRoll-Aided" CNC Control

Rolls material High resistance, heat treated, tested & certified Carbon Steel

Rolls Crowning Top and lower

Rolls guiding Friction-free, mill-scale-proof, lubrication-less planetary guides

Roll position Linear transducer with an accuracy of 0.004”

Type of bearing on rolls Self-aligning heavy duty double crown spherical roller bearings

Servo-Tronic (Davi patent)

Rolls rotation Drive (Davi Exclusive) Both Clamping rolls are driven in rotation as standard feature

RE-Rolling drive system High speed top roll rotation during re-rolling as standard feature

Wiring System (Davi Exclusive) Roll-by-wire digital technology: faster, more accurate and reliable

Rolls Tilting for cone bending

Plate Clamping hydraulic pressure Electronically Pre-settable for any thickness

Actuation of yoke & top roll tilting Hydraulic wide opening, for easier remove of closed shapes

Rolls rotation hydraulic brake Included

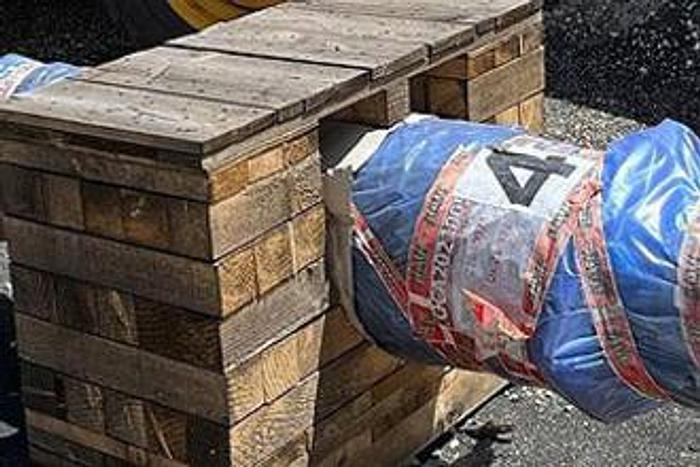

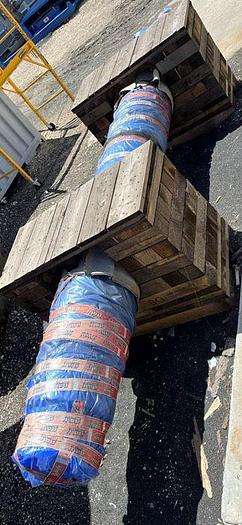

New Extra Roll Included
