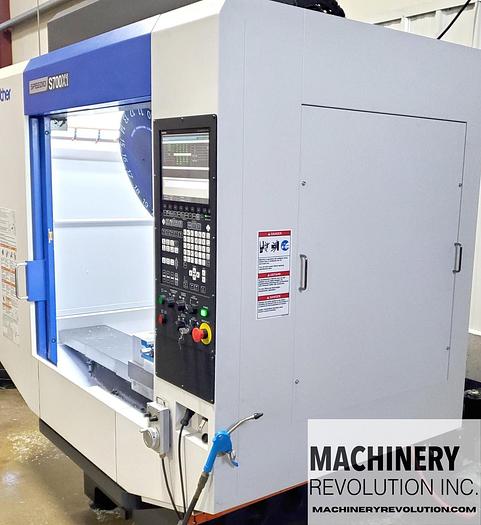

2018 Brother Speedio S 700 X1 16,000RPM Vertical Machining Center with 4th-Axis Rotary ***420 Hours***

Sold

2018 Brother Speedio S 700 X1 16,000RPM Vertical Machining Center with 4th-Axis Rotary ***420 Hours***

Description

2018 Brother Speedio S 700 X1 16,000RPM Vertical Machining Center with 4th-Axis Rotary ***420 Hours***

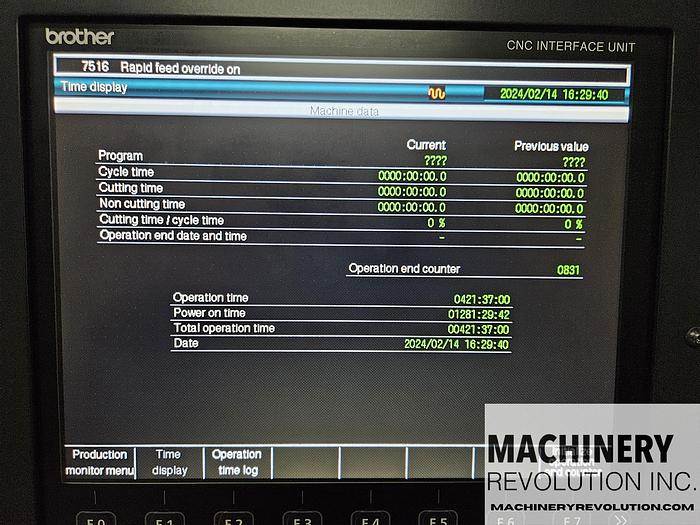

Excellent Condition Under 420 Cutting Hours

16,000 RPM

BT-30 Spindle

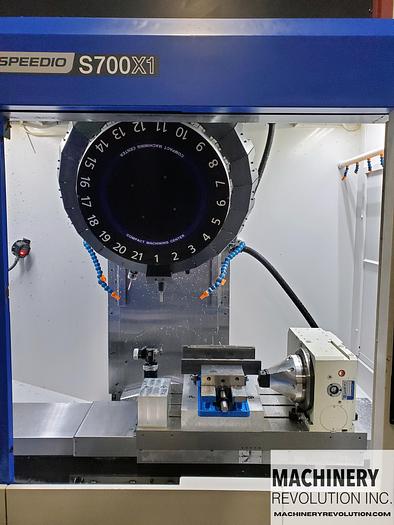

Sankyo 4th Axis Rotary Table

21 Station High Speed Automatic Tool Changer

Renishaw OMP Spindle Probe

Renishaw OTS Tool Setter and Breakage Detector

Though Spindle Coolant Ready: Larger Coolant Tank and Lines,Ready for High Pressure Pump

High-speed Machining Mode

Remote Jog Handle

Feed / Spindle / Rapid Override Knobs

High-intensity LED Lighting

Chip Wash Down

27.6" X-Axis Travel

15.7" Y-Axis Travel

11.8" Z-Axis Travel

31.5" x 15.7" Table Size

7.1" ~ 18.9" Distance between table top and spindle nose end

1,969 x 1,969 x 2,205 Rapid traverse rate XYZ (inch/min)

( 0.04 ~ 1,181)*7  Cutting feed rate (inch/min)

Tool To Tool: 0.8 sec / Chip To Chip: 1.4 sec / Cut To Cut: 1.2 sec

45 Gallon Coolant Tank And Pump

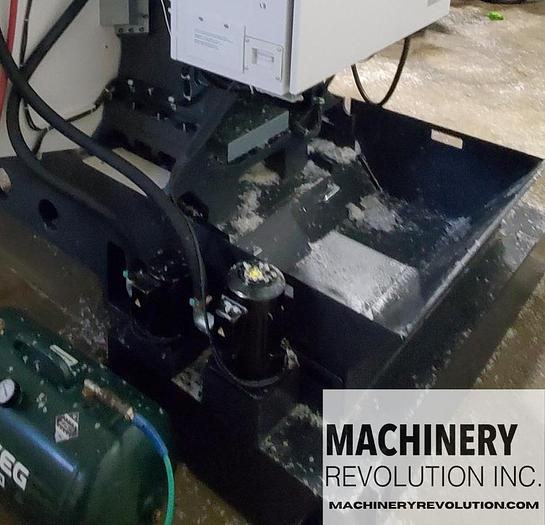

Chip Box

Side Door Opening

*** Also Availablefor Sale Power Conversion Unit:

240 Single Phase to 220V Three Phase 20HP Converter

with buck boost transformers / 50A circuit breaker / subpanel circut shut off ***

Specifications

ManufacturerBrother
ModelSpeedio S 700 X1 16,000RPM Vertical Machining Center with 4th-Axis Rotary ***420 Hours***
Year2018
ConditionUsed
