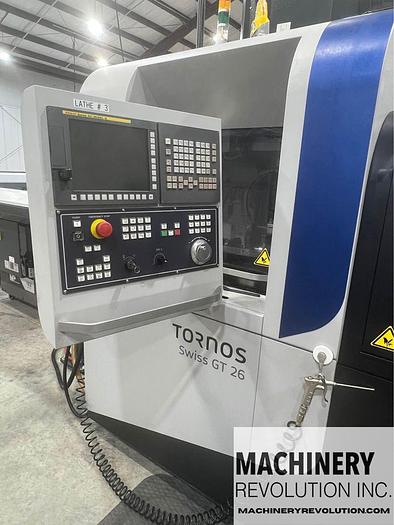

2021 TORNOS Swiss GT 26 6-Axis CNC Swiss Lathe 12' Bar Feeder / Live Tooling / C-Axis ***Like New***

10,000 RPM Liquid Cooled Main Spindle

40 Tool Capacity

14 Live Tool Capacity

5,000 RPM Live Tooling

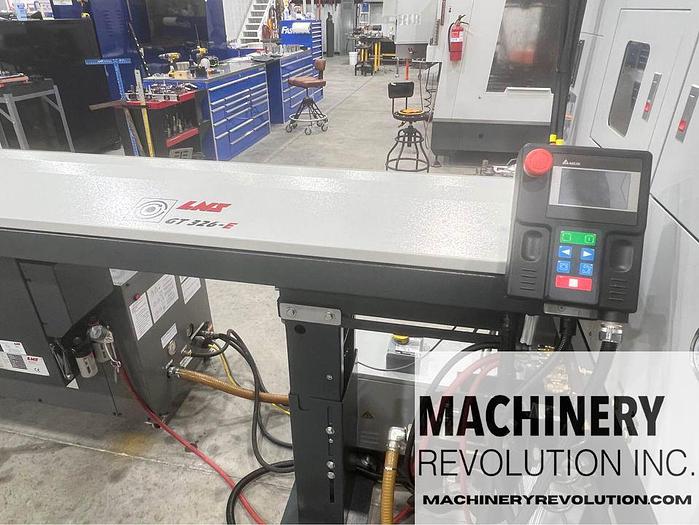

12' LNS GT 326 Bar Feeder

25.4 mm Maximum diameter

23mm Max Bar Capacity

220mm Standard Workpiece Length

6 Linear Axes

2 C Axis

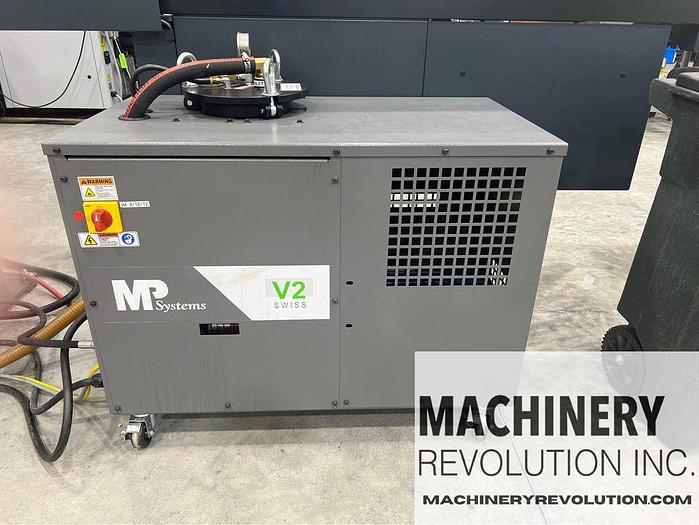

MP Systems High Pressure Through Spindle Coolant Pump

Fox WS 2-700 Mist Collector

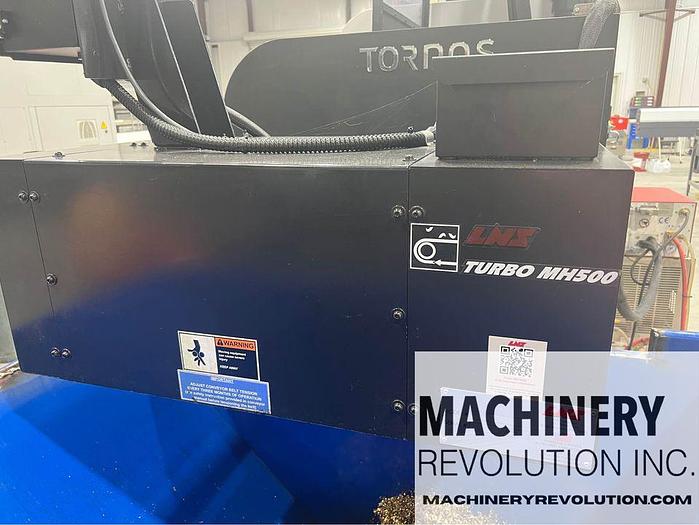

LNS Turbo MH 500 chip conveyor

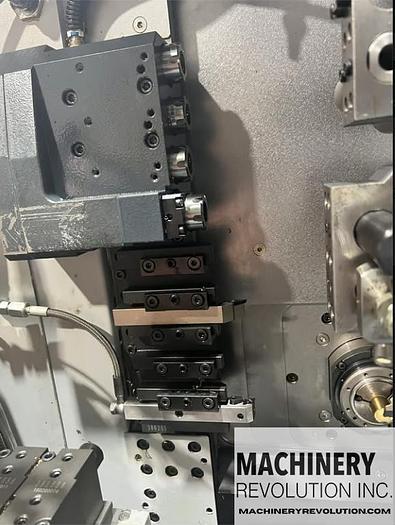

Tool System

Tool Plate for 5 turning tools 16x16m on the front side of platen

Tool plate for 4 turning tools 16x16m on the rear side of platen

S11 motorization (6,000 RPM) for rotating tools mounted on the front side of platen X1/Y1

1 rotating module for cross machining with 4 spindles for ESX20 Collet (3x6,000RPM and 1x4,000RPM)

S21 Motorization (6,000RPM) for up to 3 rotating units mounted on the rear side of platen X1/y1

Tool block woth 5 bores -22mm for steady end working tools to work in main/counter Ops

Tool Block with 2-22mm for steady end working tools located next to counter spindle

Includes

Basic machine with 6 linear axes

Independent main & counter spindles

synchronous rotating bushing

adaptation kit with work without a guide bushing

C Axis for main and counter spindle

adjustable pneumatic part ejector including counter spindle collet cleaning with coolant

3 colors light tower

central lubrication system

electrical interface for Tornos loader

Interface for an oilmist extractor, fire fighting device, customers M functions (6 inputs and 6 outputs)

conformity to EC and CEM norms

Counter Spindle

• Max RPM of counter spindle 10,000
• Adaptation for a F30 Collet
• C4 axis function

Tool system for counter Operations

• Support block for 8 back working tools with 4 upper positions open to receive steady and /or rotating tools
• on the lower position we have 4 steady holders with 20mm shank for ESX16 Collet
• 2 steady holders for 22mm zero bore (for upper position)
• S51 motorization (5,000RPM to drive the back working tools

Counter Spindle

Max RPM of counter spindle 10,000

Adaptation for a F30 Collet

C4 axis fuction

Tool system for counter Operations

Support block for 8 back working tools with 4 upper positions open to receive steady and /or rotating tools

on the lower position we have 4 steady holders with 20mm shank for ESX16 Collet

2 steady holders for 22mm zero bore (for upper position)

S51 motorization (5,000RPM to drive the back working tools

Misc

Pneumatic part ejector including the colect cleaning with coolant

part chute

central lubrication system

high pressure pump

coolant tank

coolant flow detector
