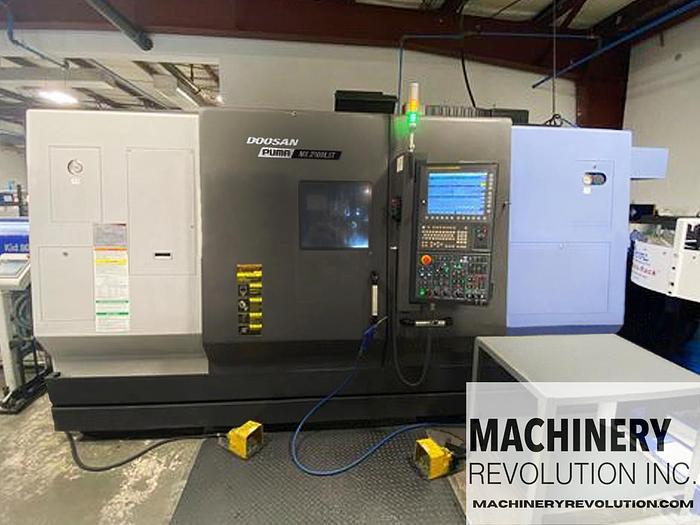

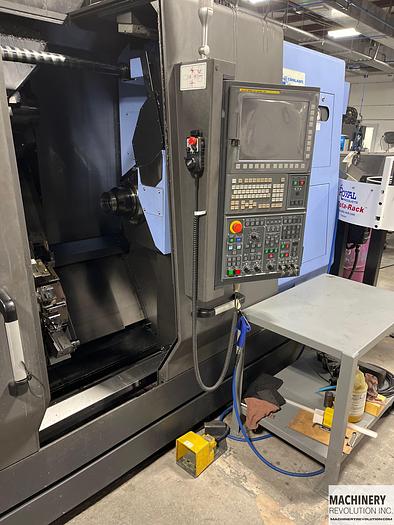

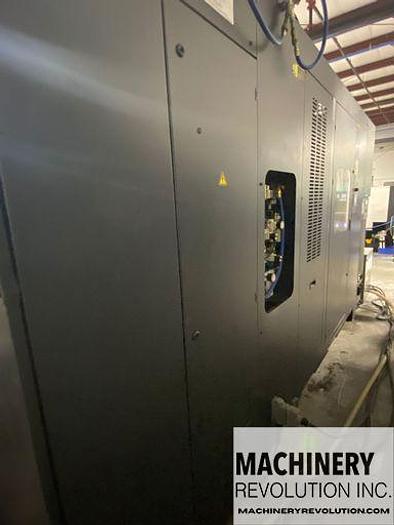

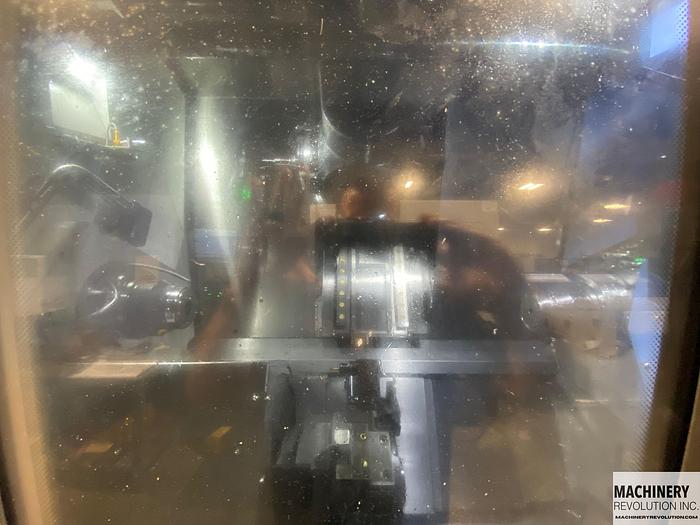

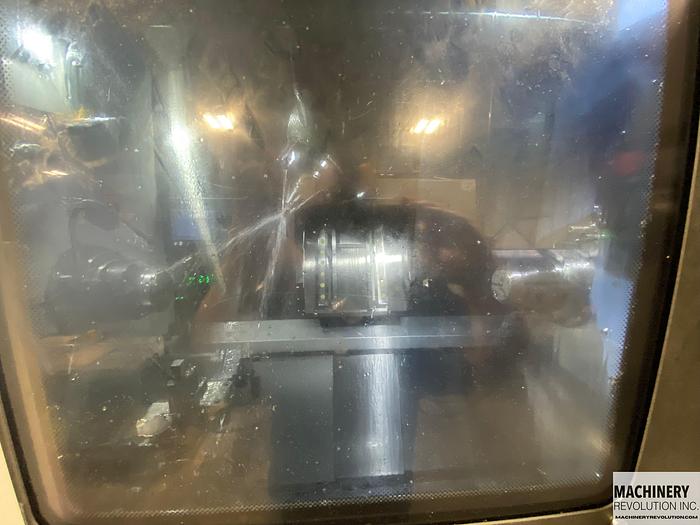

2020 DOOSAN PUMA MX 2100 ST 10-Axis CNC Mill Turn ***Fully Loaded Low Hours***

Excellent Condition Low Hours

Y / X1 / X2 / Z1 / B / C1 / A / C2 / X2 / Z2 / T Programmable AXIS

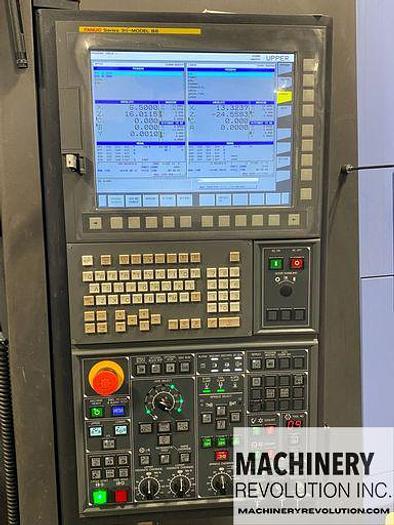

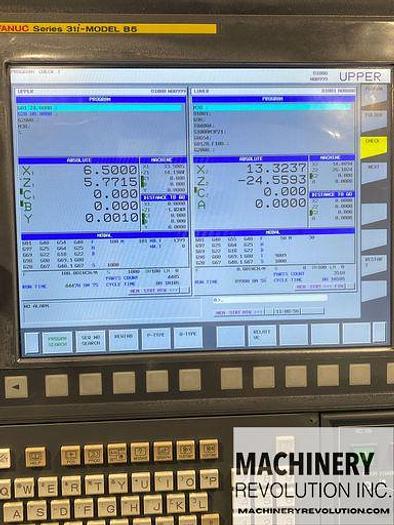

FANUC 31i-B5 CNC Control

Automatic Tool PreSetter

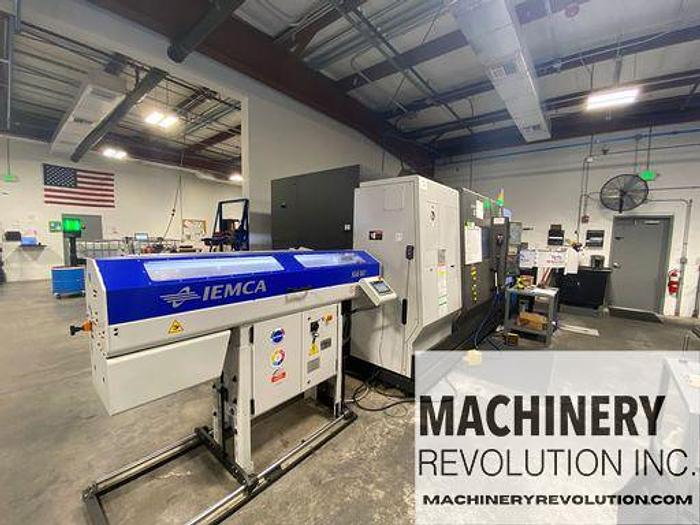

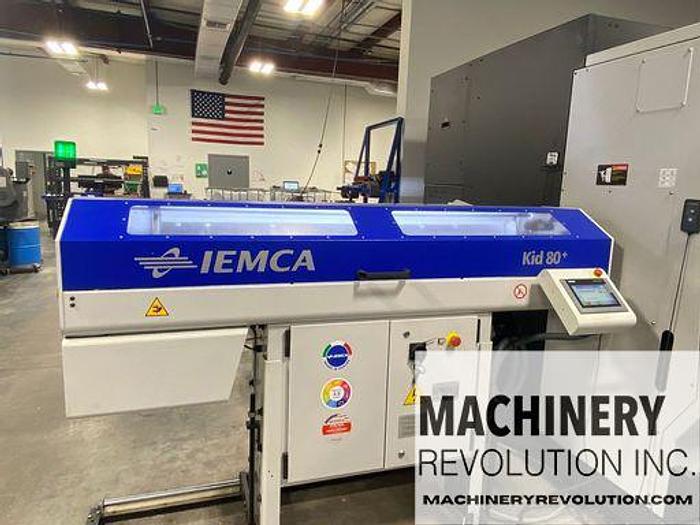

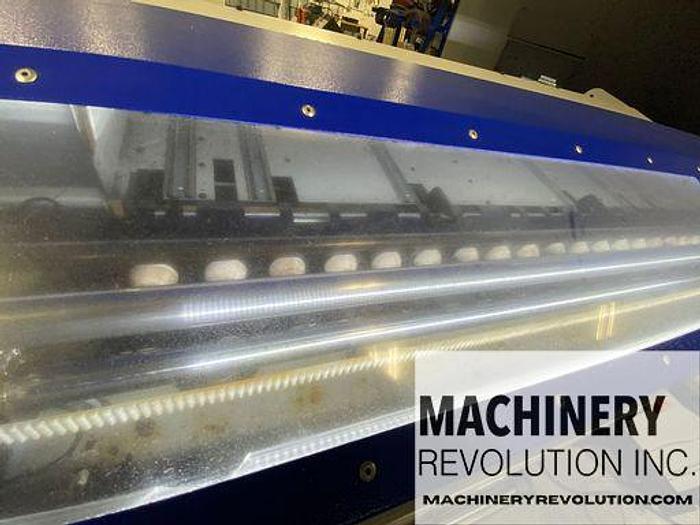

5.3' Imeca KID 80 Barfeeder 1,615 mm

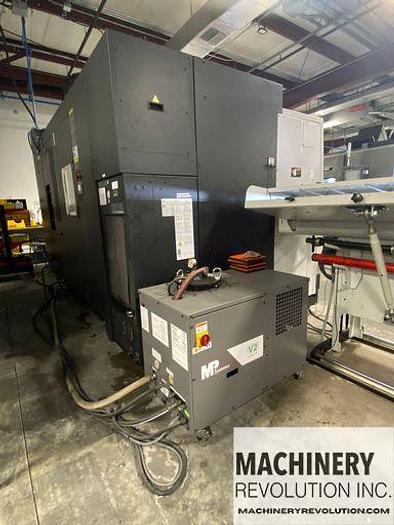

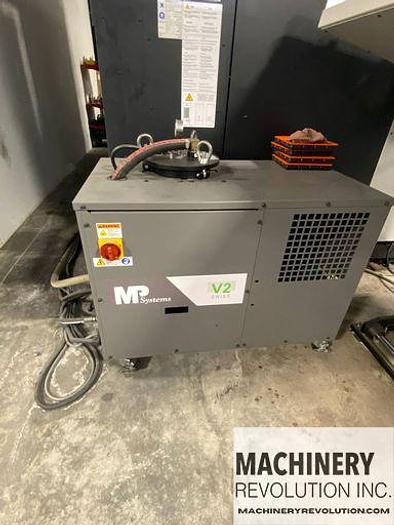

1,000PSI MP Systems V2 High Pressure Coolant Pump

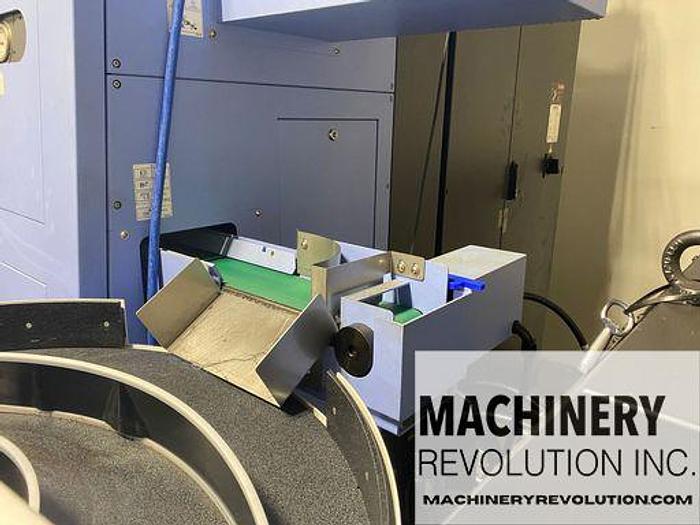

Parts Catcher

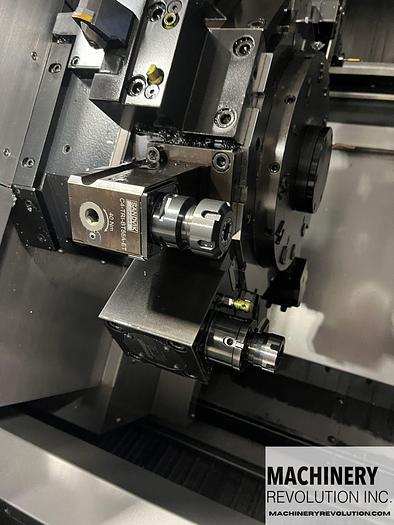

LiveTooling

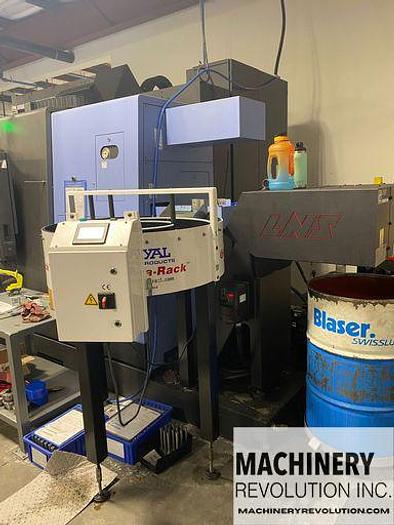

Royal Roto Rack Parts Collector

Royal Collet Chucks: K QG65-AL-A6

Remote Jog Handle

Coolant Tank and Pump

LNS Chip Conveyor

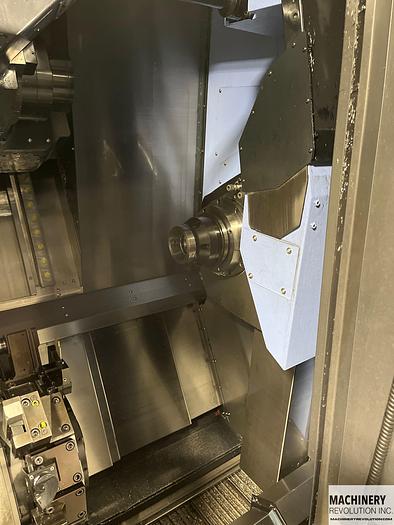

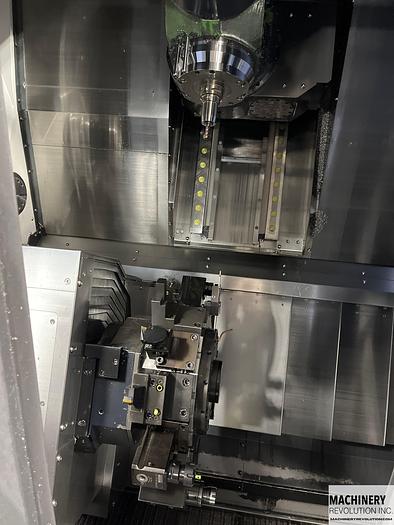

Twin Spindles

5,000RPM Main and Sub Spindle

8” Chuck

22 kW 30 HP

318 Nm 234 ft-lbs Torque

12,000RPM Indexing Milling Spindle

18.5 kW 25 Hp

81 Nm 60 ft-lbs Torque

40 Station Automatic Tool Changer

3.5/4.7” Max Tool Diameter 90/120 mm

11.8” Max Tool Length 300 mm

1.8 Seconds Tool Change Time

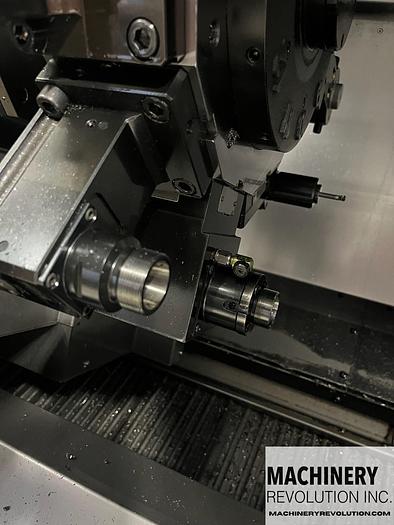

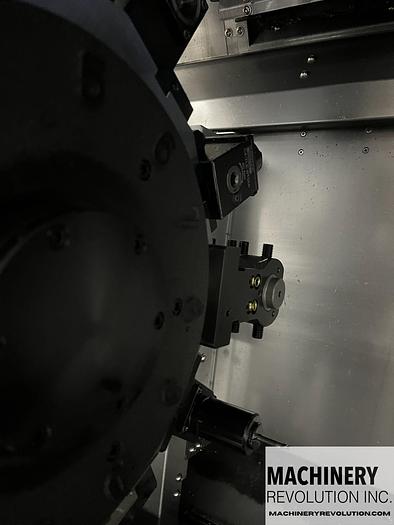

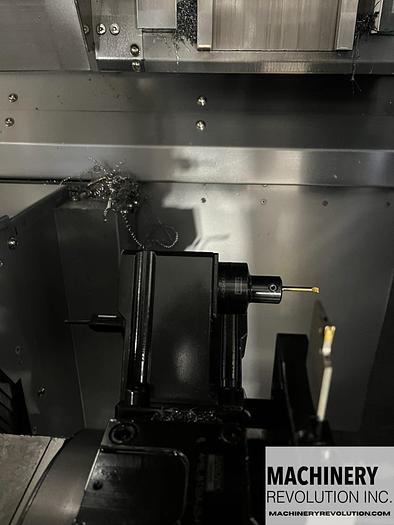

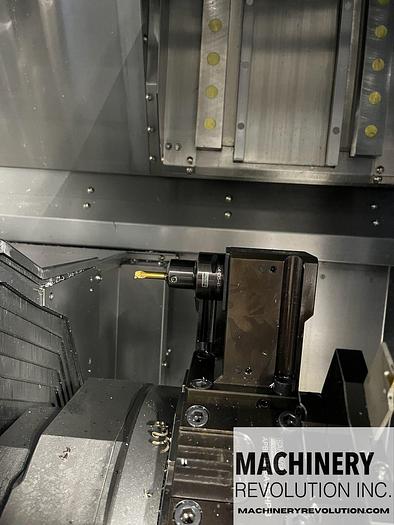

12 Station BMT-55 Lower Turret

1.5” Boring Bar Diameter 40 mm

5,000RPM Rotary Tool Speed

5.5 kW 7.5 Hp

47 Nm 34.7 ft-lbs

22.2” Travel Distance X1-axis 565 mm

41.3” Travel Distance Z1-axis 1,050 mm

7.4” Travel Distance X2-axis 187 mm

41.3” Travel Distance Z2-axis 1,050 mm

6.7±3.4” Travel Distance Y-axis 170±85 mm

240°±120° Travel Distance B-axis

1417 in/min Rapid Traverse X1-axis 36 m/min

1417 in/min Rapid Traverse Z1-axis 36 m/min

1024 in/min Rapid Traverse Y-axis 26 m/min

21.3” Max Turning Diameter Main Spindle 540 mm

40.2” Max Turning Length 1020 mm

2.7” Through Hole Diameter Left Spindle 68 mm

2.6” Through Hole Diameter Right Spindle 65 mm

191” Length 4,850 mm

110.5” Width 2,805 mm

99.5” Height2,525 mm

26,455 lbs Weight 12,000 kg
