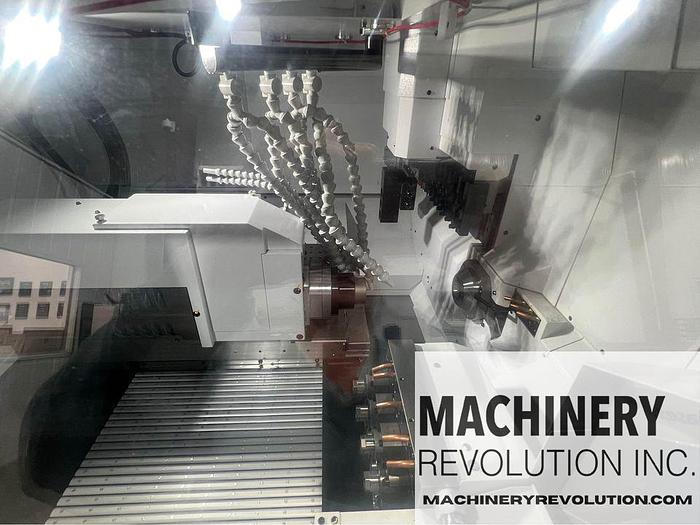

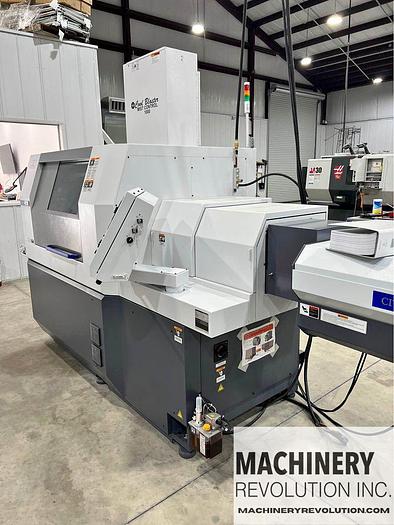

2023 Citizen CINCOM L 32 X 7-Axis Swiss Screw CNC Lathe ***Like New*** Y Axis / Sub Spindle / 12' Bar Feeder

Excellent Condition Never Used

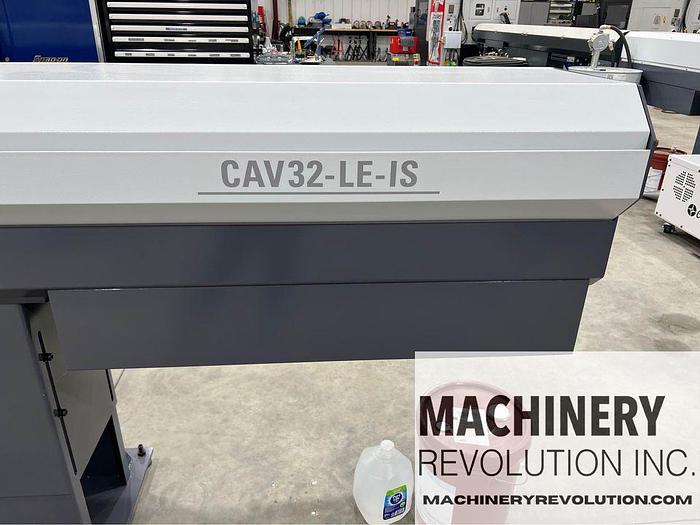

CA V32L 12' Bar Feeder

Mist Con Cool Blaster 1000 Mist Collector

Cut-off Tool Breakage Detector

Work Piece Part Conveyor

3-Color Patrol Light

Low Frequency Vibraton (LFV)

3-Station Sleeve Holder 3/4" Sleeve (2units)

20MM Small Bar Adapter

Fire Suppression FireTrace System

32mm Dia. Maximum machining diameter

320mm/chuck Maximum machining length

Workpiece diameterx2.5/chuck

12mm Dia. Maximum drilling diameter for main spindle

M12(Cut tap) Maximum tapping diameter for main spindle(tap, die)

39mm Dia. Spindle through-hole diameter

Max.8,000min-1 Spindle speed

32mm Dia. Maximum chuck diameter of back spindle

10mm Dia. Maximum drilling diameter in back machining process

M10(Cut tap) Maximum tapping diameter in back machining process

Max.8,000min-1 Back spindle speed

8mm Dia. Maximum drilling diameter for gang rotary tool

M6(Cut tap) Maximum tapping diameter for gang rotary tool

Max.6,000min-1 Gang rotary tool spindle speed

8mm Dia. Maximum drilling diameter for rotary tool of the opposed tool post

M6(Cut tap) Maximum tapping diameter for rotary tool of the opposed tool post

Max.6,000min-1 Rotary tool spindle speed of the opposed tool post

8mm Dia. Maximum drilling diameter for back tool post rotary tool

M6(Cut tap) Maximum tapping diameter for back tool post rotary tool

Max.6,000min-1 Rotary tool spindle speed of back tool post

Max.44 Number of tools to be mounted

16mm Sq. Tool size Turning tool

Rapid feed rate

32m/min X1 axis

32m/min X2 axis

32m/min Y1 axis

24m/min Y2 axis

32m/min Z1 axis

32m/min Z2 axis

3.7/7.5kW Motors For spindle drive

1.0kW For tool spindle drive(gang rotary tool post)

2.2/3.7kW For back spindle drive
