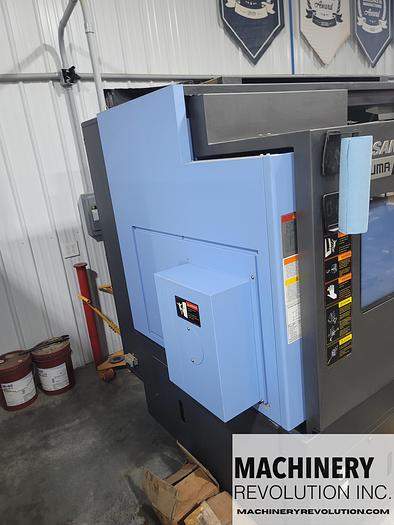

2021 DOOSAN PUMA 2600 SY II CNC Lathe Turning Center with Sub-Spindle / Y-Axis / Live Tooling / 250 Hours

Excellent Condition Under 300 Hours

4,000 rpm Main Spindle 10" Chuck Size

6,000RPM Sub Spindle 8" Chuck Size

5,000RPM Live Tooling Speed

BMT-65 Shank

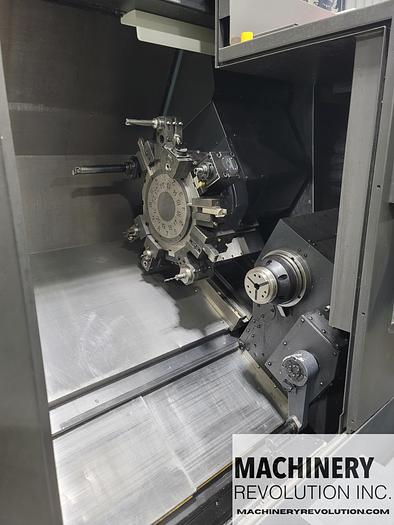

12 Turret Station

Box Guideway Structure

460 PSI High Pressure Coolant Unit

Includes Royal Collet Chucks Main and Sub Spindle, Tooling Package, SamChully Chucks for Main and SubSpindle

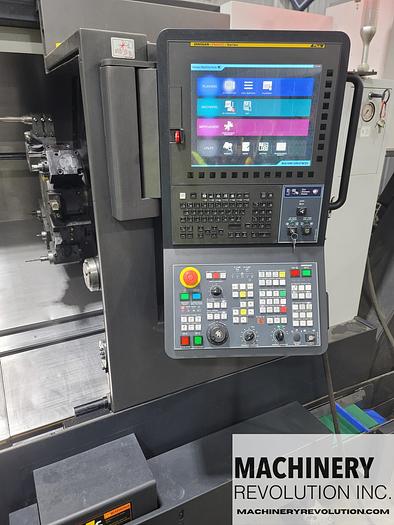

Fanuc I series Plus Control

Automatic Tool PreSetter

Mist Fit MF 550 Mist Collector

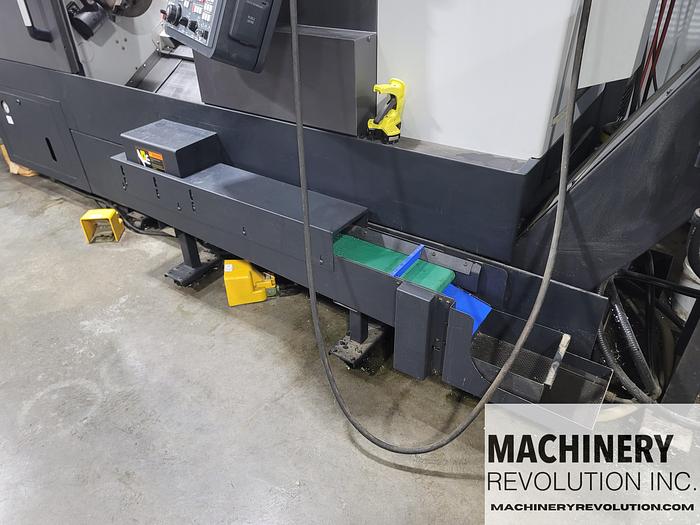

Parts Conveyor

Turbo LNS Chip Conveyor

Bar Feeder Interface

10.2" Travel Distance X-axis 260 mm

4.1±2.1"Travel Distance Y-axis 105±52.5 mm

32.7" Travel Distance Z-axis 830 mm

32.7" Travel Distance B-axis 830 mm

14.8" Max Turning Diameter ⌀376 mm

29.9" Max Turning Length 760 mm

3.2" Through Hole Diameter ⌀82 mm

1181 in/min Rapid Traverse X-axis 30 m/min

394 in/min Rapid Traverse Y-axis 10 m/min

1181 in/min Rapid Traverse Z-axis 30 m/min

200rpm Rapid Traverse C-axis

2" Boring Bar Diameter ⌀50 mm

Main Spindle: 30 Hp Power, 22 kW 442 ft-lbs Torque 599 Nm

Sub Spindle: 20 Hp Power 15 kW 134 Nm 98 ft-lbs Torque

Rotary Tool: 10 Hp Rotary Tool Power 7.5 kW 70 ft-lbs Rotary Tool Torque 95.5 Nm

MACHINE SIZE & WEIGHT

142" Length 3,600 mm

85" Height 2,163 mm

75" Width 1,905 mm

14,440 lbs. Weight 6,550 kg
