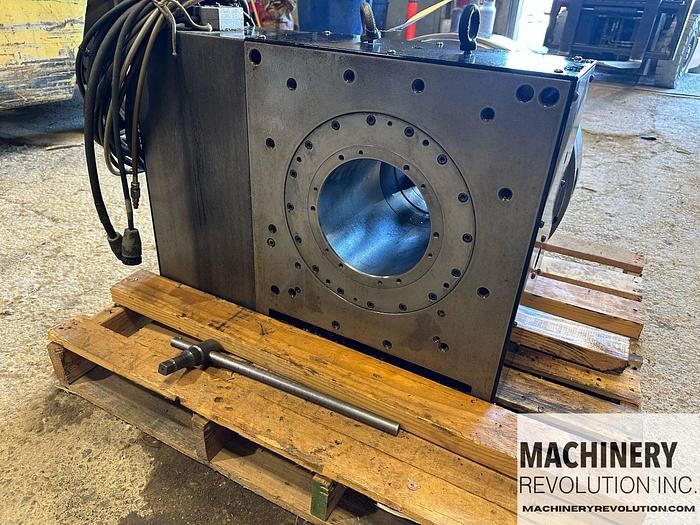

2015 HAAS HRT-450 4th Axis Rotary Table with 19" Bison 4-Jaw Chuck and 11.5" Manual Tailstock

Excellent Condition Low Hours

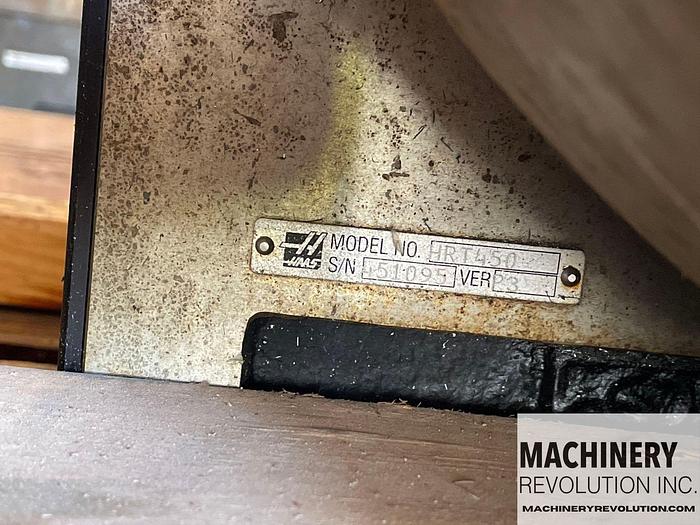

Serial Number: 51095

Version: P3

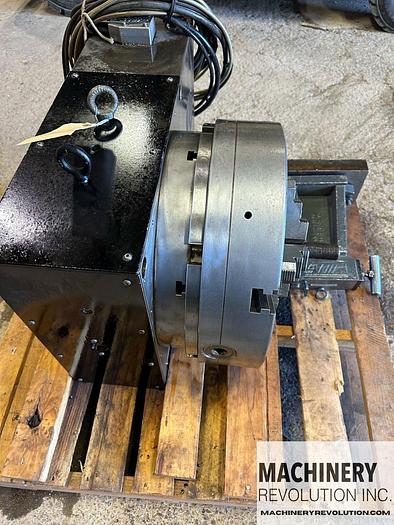

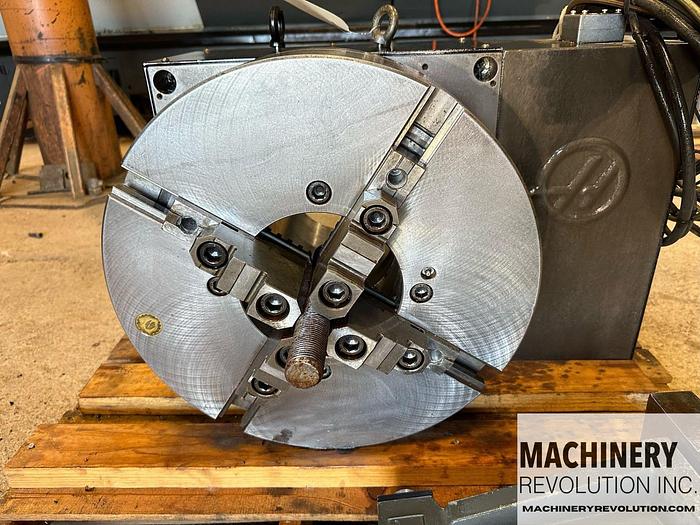

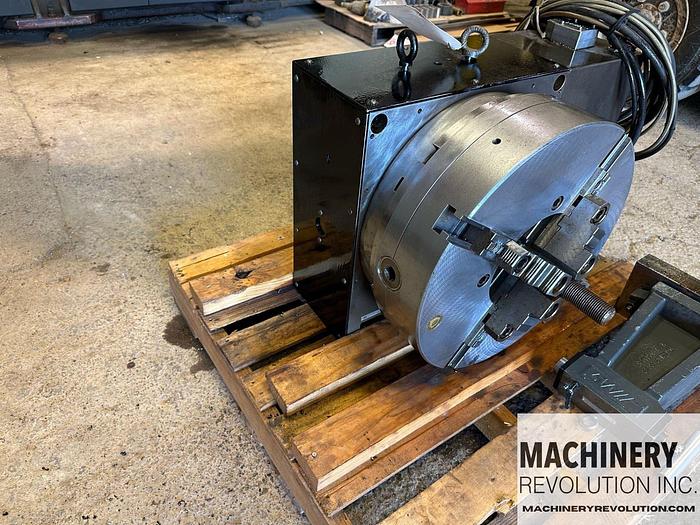

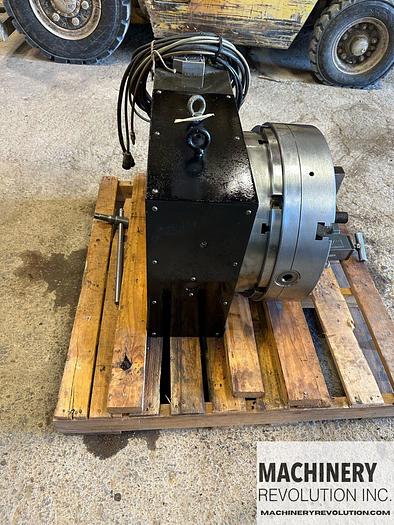

Includes: 19" Bison 4-Jaw Chuck with Adapter and 11.5" Manual Tailstock

PLATTER S.A.E METRIC

Platter Diameter 17.70 in 450 mm

Max Weight on Platter (w/support) 850 lb 385.6 kg

Max Weight on Platter (unsupported) 425 lb 192.8 kg

Number of Std T-Slots 6 @ 60° 6 @ 60°

SPINDLE S.A.E METRIC

Max Speed 50 °/sec 50 °/sec

Max Torque 400 ft-lbf 542 Nm

Runout Max 0.0015 in 0.038 mm

Center Height 11.500 in 292.10 mm

Backlash 30 arc-sec 30 arc-sec

Brake Torque @ 100 psi/6.9 bar 1350 ft-lbf 1830 Nm

Gear Ratio 72:1 72:1

Timing 3:1 3:1

INDEXING S.A.E METRIC

Accuracy (±) ± 15 arc-sec ± 15 arc-sec

Repeatability 10 arc-sec 10 arc-sec

Resolution 0.001 ° 0.001 °

Worm Gear Dia 13.5 in 343 mm

Max Rotation/Step (with rotary control) 999.999 ° 999.999 °

Power Requirement 115 VAC ±10% @ 15 A 115 VAC ±10% @ 15 A

Operating Temp (max ambient) 100 °F 38 °C

AIR REQUIREMENTS S.A.E METRIC

Air Pressure Max 150 psi 10.3 bar
