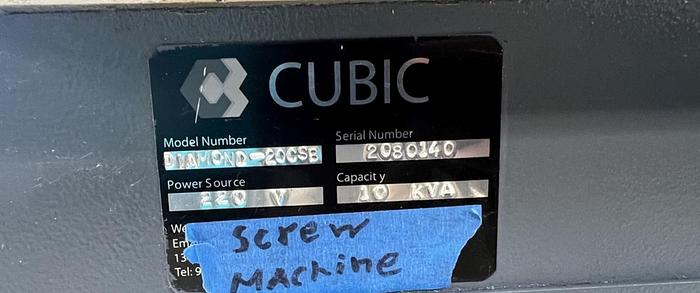

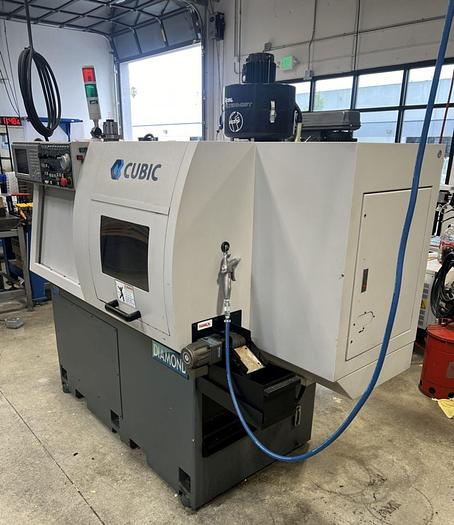

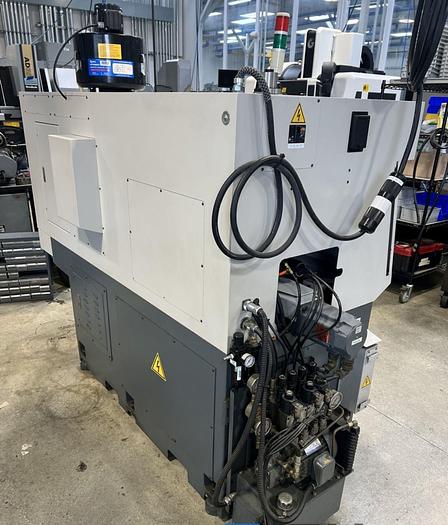

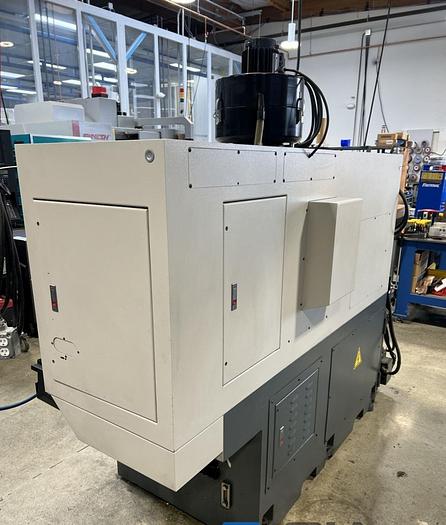

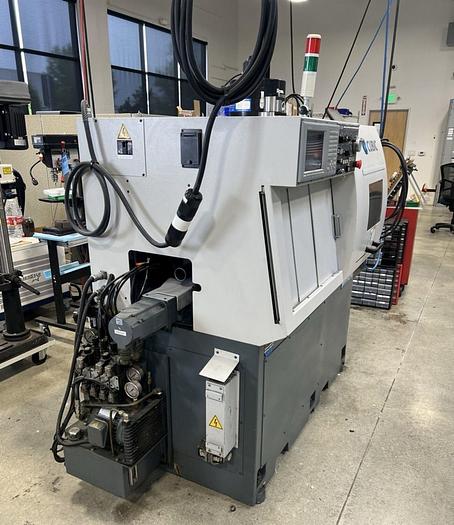

2006 PO LY GIM Cubic Diamond 20 CSB CNC Swiss CNC Type Automatic Screw Machine

Excellent Condition

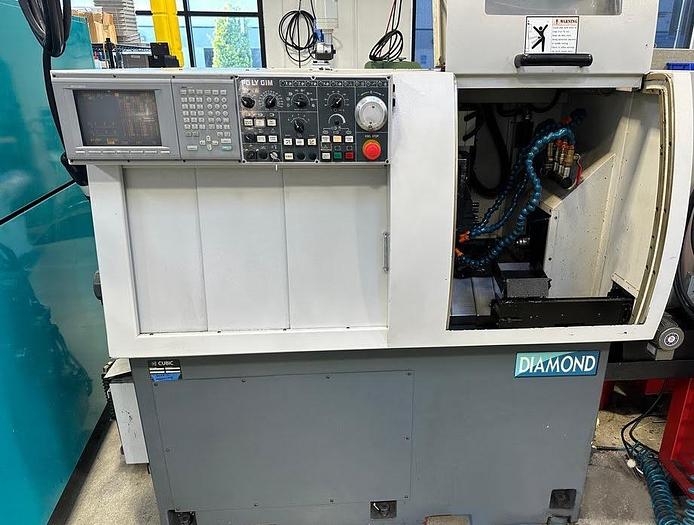

Mitsubishi CNC Control

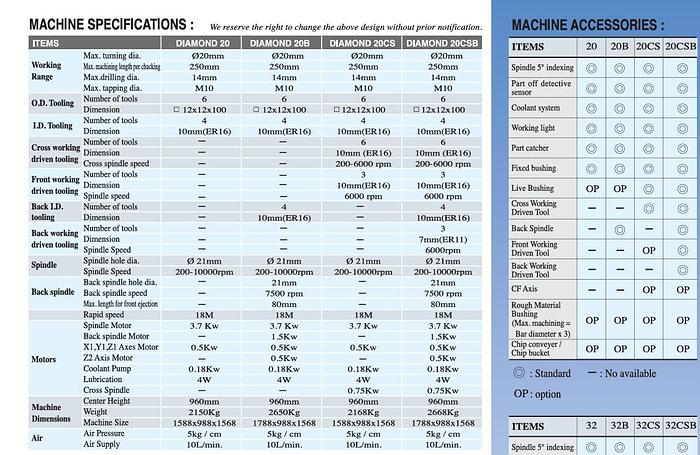

10,000 rpm Spindle 21mm Spindle Bore

7,500 rpm Sub Spindle 21mm Spindle Bore

20mm Max Turning Diameter

250mm Max Machining Length

14mm Max Drilling Diameter

M10 Max Tapping Diameter

X1, Y1, Z1, Z2 Axis

6 OD Tooling

4 ID Tooling 10mm (ER16)

6 Cross Working Live Tooling 6,000 rpm 10mm (ER16)

3 Front Working Live Tooling 6,000 rpm 10mm (ER16)

4 Back ID Tooling 10mm (ER16)

3 Back Working Live Tooling 6,000 rpm 10mm (ER16)

Part Off Detection

Royal Mist Collector

Coolant System

Work Light

Part Catcher

Fixed Bushing

Live Bushing

All Available Tooling

All Available Manuals
