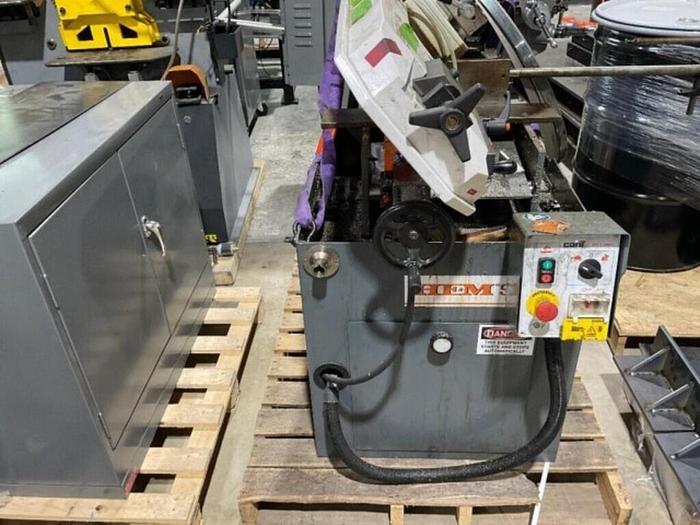

2016 Hem Saw Carif 260BSA Dual Mitering Semi-Automatic Band Saw

2016 HEM Carif 260BSA Dual Mitering Semi-Automatic Band Saw

1.8 HP motor 220V 3 PH 2 Speed

8.7 inch capacity

One-way 60 degree miter

Dual 45 degree mitering

Hydraulic feed rate & cutting pressure

Flood coolant system

Hydraulic system operates the vise, feed rate, and cutting pressure. The saw will miter either direction up to 45 degrees and all the way to 60 degrees to the left.

Hydraulic system

Measuring Device

Hydraulic Adjustable Cutting Pressure

Hydraulic Adjustable Vise

Flood Coolant System

Movable Control Cabinet

Motor: 1.8 hp, 220 volt / 3PH

Blade Width (inches): 1

Blade Length (inch): 96.5

Blade Thickness (inches): .035

Number of Speeds: 2

Mitering Range: 60

Round Tube Capacity 90 Deg (inches): 8.7

Round Tube Capacity 45 Deg (inches): 3.9 Right / 5.9 Left

Rectangle Tube Capacity 90 Deg (inches): 10.2 x 5.9

Rectangle Tube Capacity 45 Deg (inches): 4.7 x 3.9 Right / 5.9 x 5.9 Left

Weight: 750 pounds
