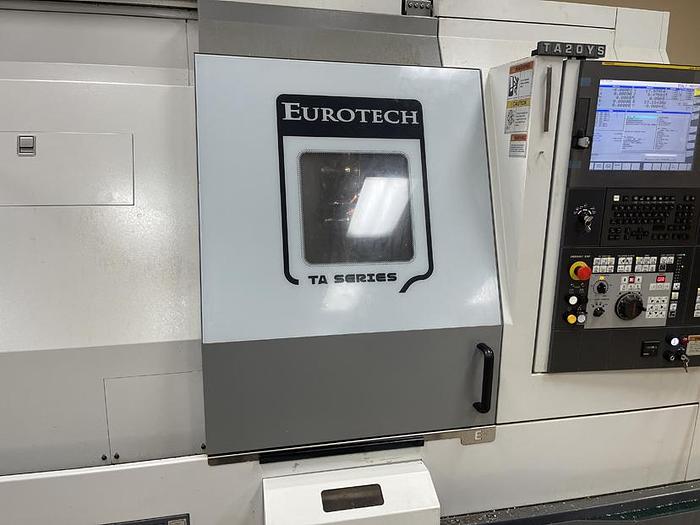

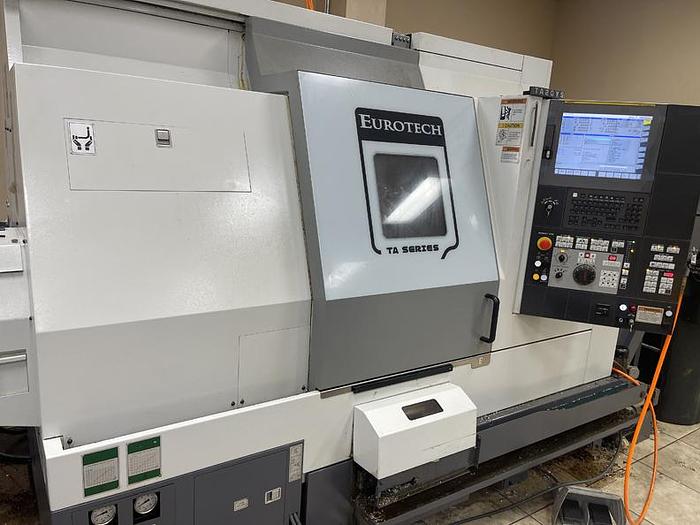

2020 EUROTECH CMZ TA-20YS 640 Y-Axis Live Tooling Sub Spindle CNC Lathe

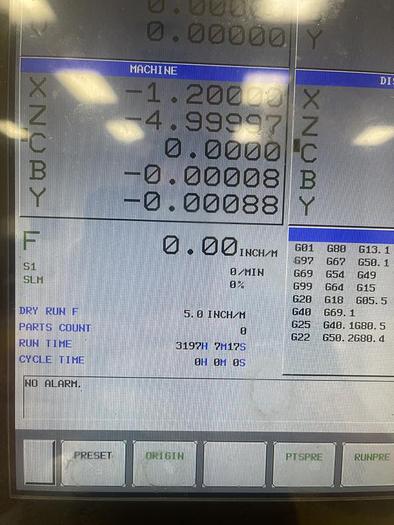

Fanuc 32iTB CNC Control

29.92" Swing Over Bed

18.11" Turning Diameter

25.2" Turning Length

24.6"Distance Between Spindles

Collet Chuck Main Spindle and Sub Spindle

3,2" Spindle Bore Main & Sub

2.6" Bar Capacity Main & Sub

4,000 RPM Main Spindle

4,500 RPM Sub Spindle

30 HP Main Spindle / 18.8 HP Sub Spindle

12.2" X - Axis Travel X1, X2, X3

25.1" Z - Axis Travel Z1, Z2, Z3

4.73" Y - Axis Travel Y1, Y2, Y3

.001 Degrees C - Axis Indexing

15 Station Live Tooling Turret

12,000 RPM Live Tooling Speeds

ALL AVAILABLE TOOLING PICTURED (Live Tools Rated For 12,000 RPM)

(4) Straight Axial Live Tools

(4) Radial 90* live tools (1 Brand New)

(1) Double Forward and Back Facing Radial 90* Tool

15.5 HP Turret Rotary Tool

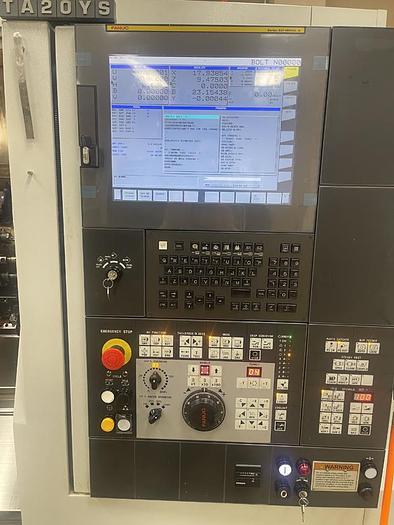

15" Touchscreen with IHMI

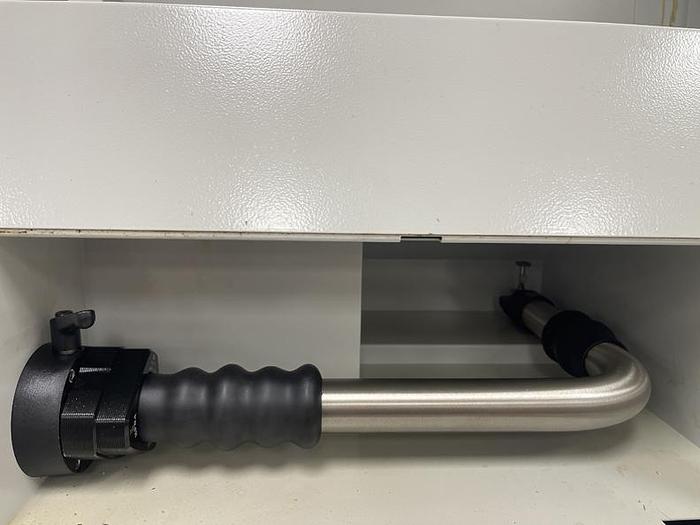

Tool Pre-Setter Removable

Programmable Automatic Parts Catcher with Conveyor

Parts Ejector for Sub Spindle (Pneumatic)

Air Blower Over Main Spindle

Coolant Through Sub Spindle

BOX Ways

1,600 ipm Rapids

Bar Feeder Interface

Tool Life Management Function

Tool Load Monitoring Function

Machine Status Indicator Light

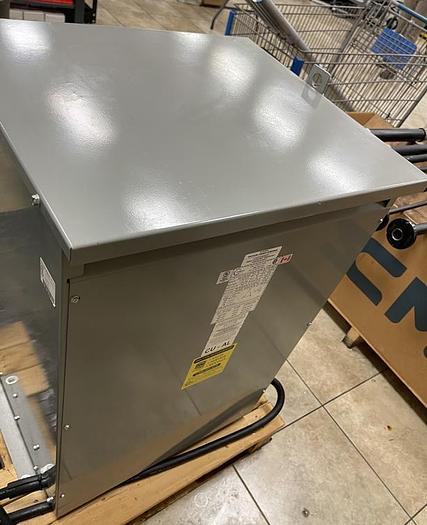

Transformer

Chip Conveyor

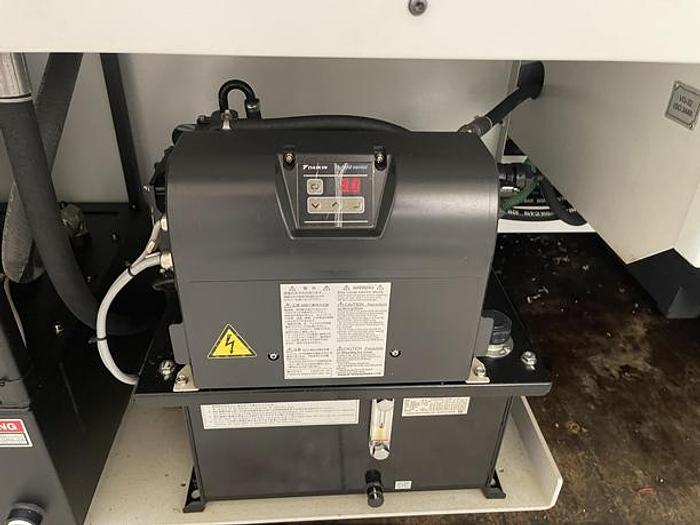

Coolant Tank and High-Pressure Pumps

Coolant Filter with Scraper Type Cleaning System
