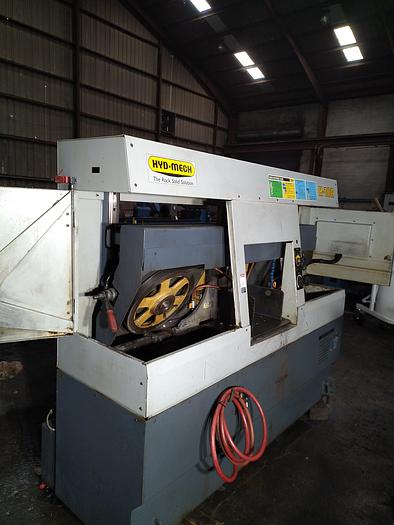

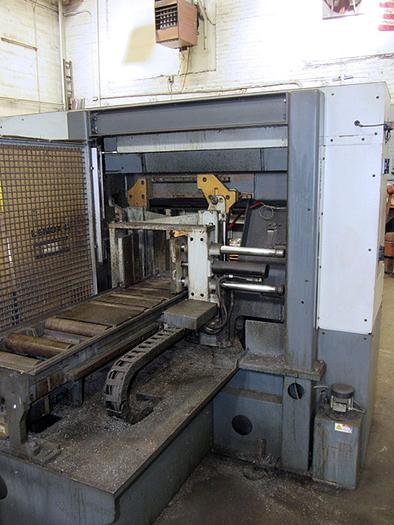

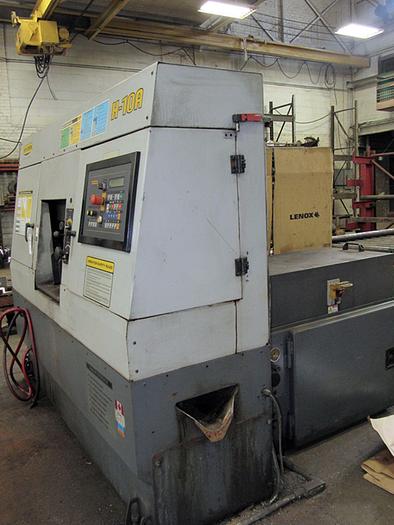

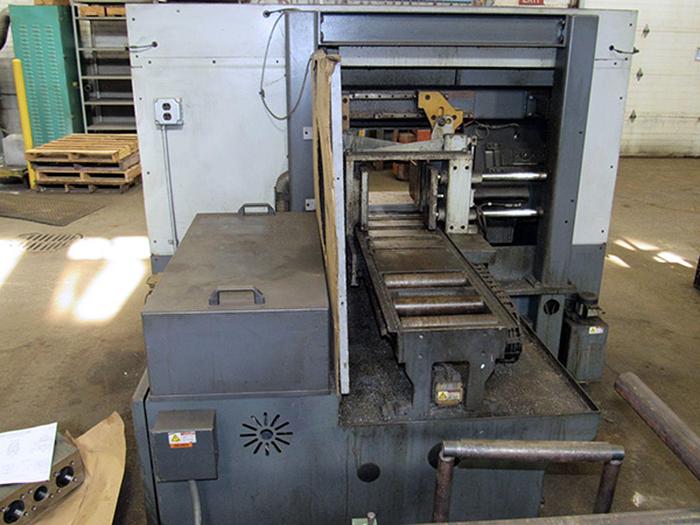

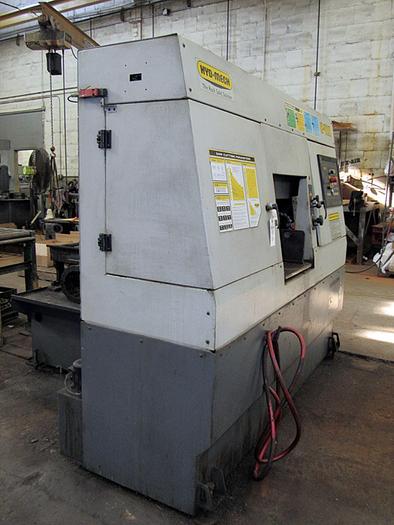

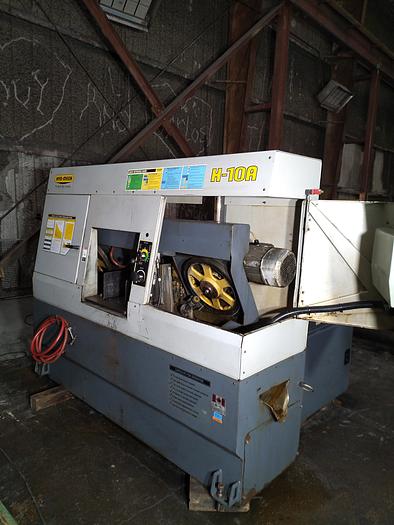

2014 Hydmech H-10A CNC Horizontal Automatic Band Saw

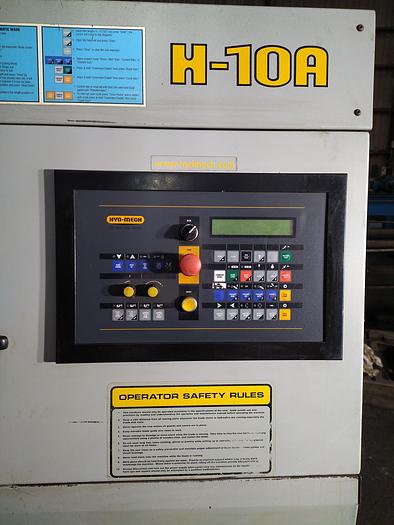

This Hydmech H-10A is a late model dual post horizontal band saw with a heavy-duty motor and shuttle-feed. The user-friendly control offers many helpful options for quality operations.

The H-10A's automatic shuttle vise and multi-indexing capability optimize material utilization, reducing waste and maximizing productivity. Additionally, its user-friendly interface simplifies operation, making it accessible to operators of varying skill levels. Overall, the Hyd-Mech H-10A combines advanced technology with robust design to deliver accurate, reliable, and efficient cutting solutions.

CAPACITY: 10" X 10"

BLADE: 1-1/4" X 12'6" X .042"

BLADE SPEED: 50 - 350 FPM (VARIABLE FREQUENCY DRIVE)

BLADE GUIDES: CARBIDE

BLADE WHEEL DIAMETER: 16"

GUIDE ARM AUTOMATIC (VISE DRIVEN MOUNTED ON LINEAR BEARINGS)

BLADE MOTOR: 5 HP

HYDRAULIC MOTOR: 1 HP

HYDRAULIC TANK CAPACITY: 4 GALLONS

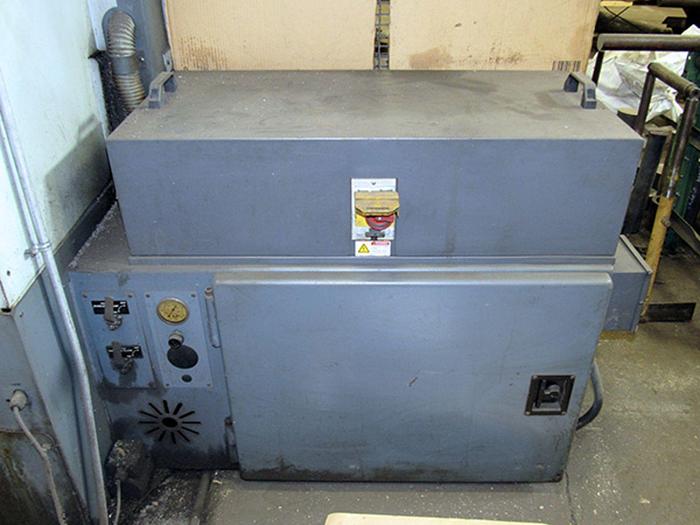

COOLANT TANK CAPACITY: 15 GALLONS

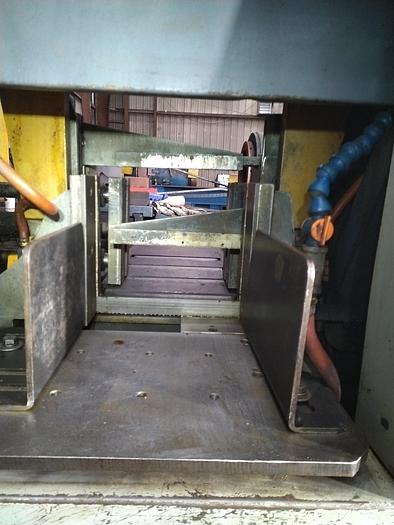

VISE CONTROL: HYDRAULIC FULL STROKING

SHUTTLE STROKE: 0-24" (MULTI INDEX CAPABLE)

DISCHARGE TABLE: 10"

TABLE HEIGHT: 31"

COOLANT TYPE: FLOOD

480 VOLT 3 PHASE

APPROX. DIMENSIONS: 83" X 68" X 67"

APPROX. WEIGHT: 3,500 LBS.
