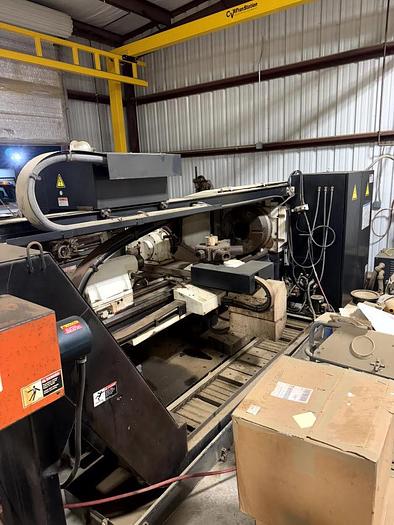

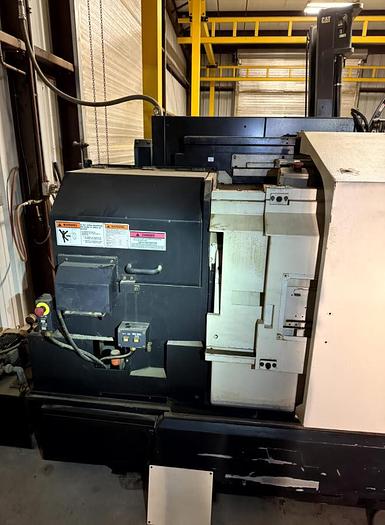

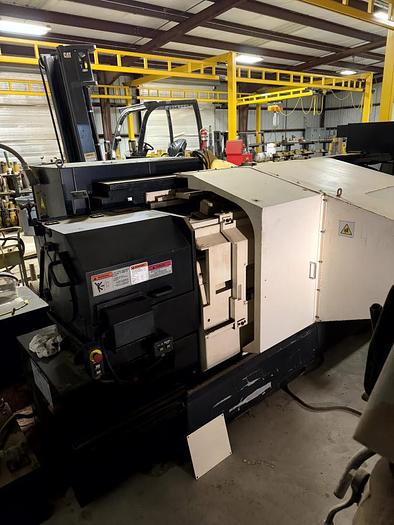

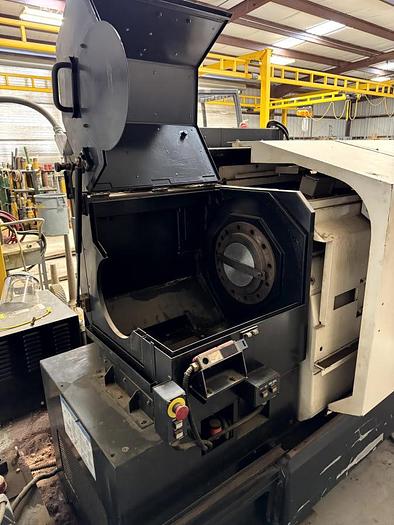

2011 MAZAK M-5N x 2000 CNC Flat-Bed Lathe

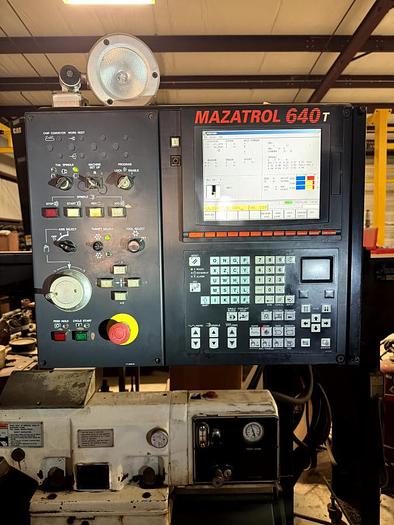

Mazak Fusion 640T Control

10.4” Color LCD

EIA/ISO Option Package

Maximum Swing 24”

Maximum Swing Over Cross Slide 13”

Maximum Cutting Diameter 22.8”

Distance Between Centers (80”/120” bed) 82”

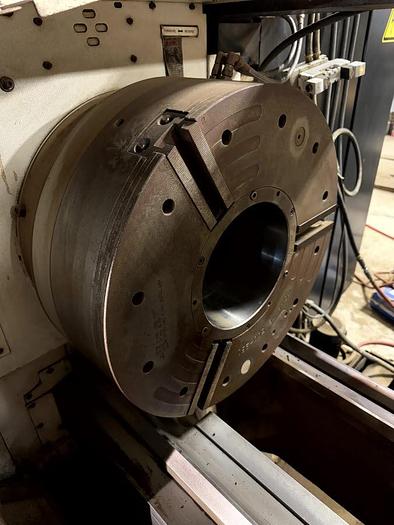

Spindle Nose A2-15

Spindle Bore 7.1”

Spindle Speed 1,000 RPM

Number of Speed Ranges 3

Spindle Motor (30min/Cont) 30/25 HP

Turret Type (Front/Rear) Vertical Disc / Hexagon

Number of Tools (Front/Rear) 8 / 6

Tool Size Turning & Facing 1” x 1” x 6”

Boring Bar Max Diameter 2”

Turret Index Time (1step/full step 1.8 sec Front / 2.7 sec Rear

X-Axis Travel 21.25”

Z-Axis Travel (80” bed) 81”

Rapid Traverse (X-axis/ Z-axis) 472 / 551 IPM

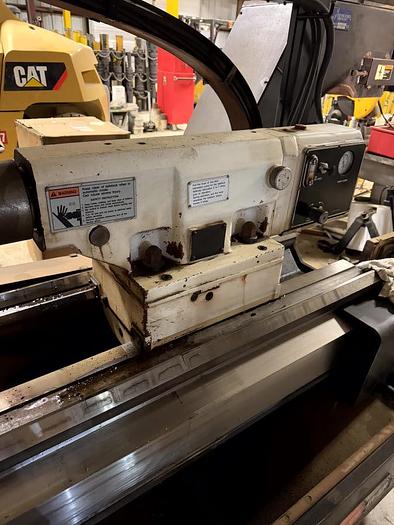

Tailstock Spindle Center MT No. 5

Tailstock Spindle Diameter 3.9”

Tailstock Spindle Travel 5.12”

Machine Height 86”

Floor Space (80” bed) 94.5” x 203”

Machine Weight (80”” bed) 14,740 Lbs.
