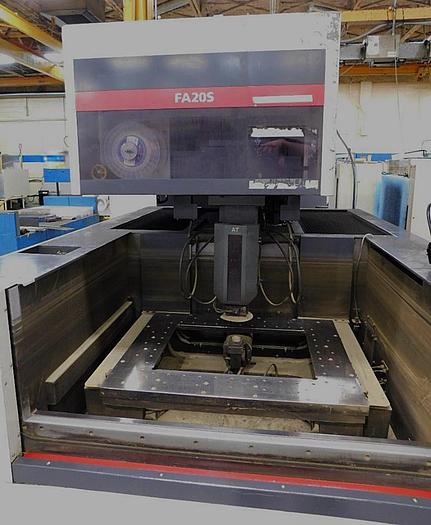

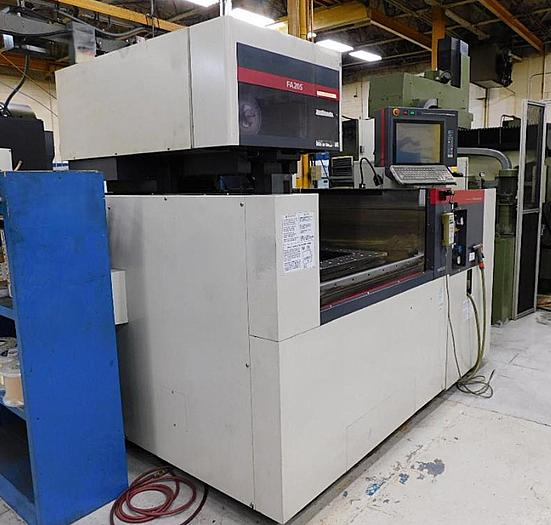

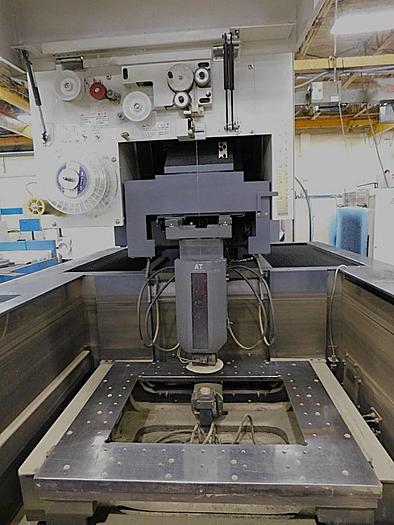

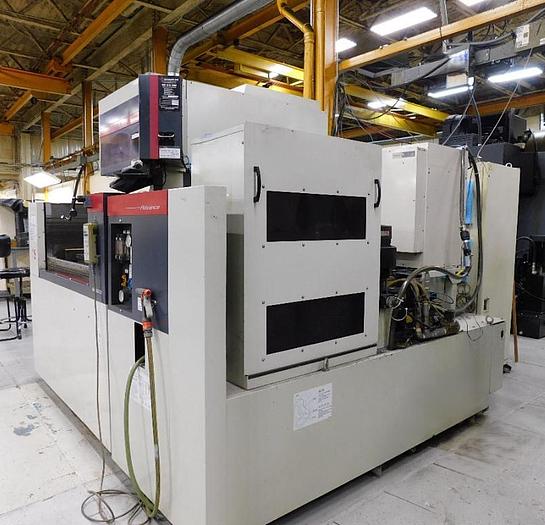

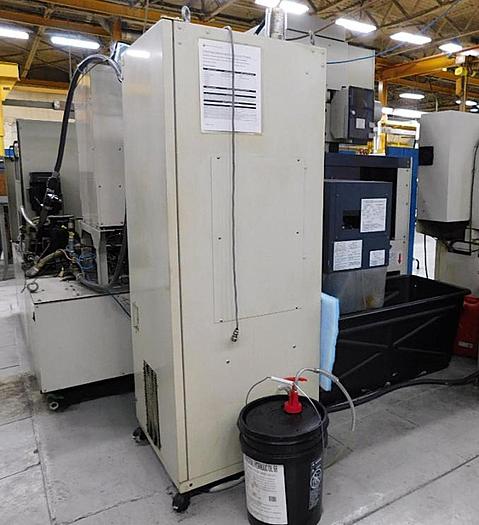

2009 Mitsubishi FA20S ADVANCE CNC Wire EDM

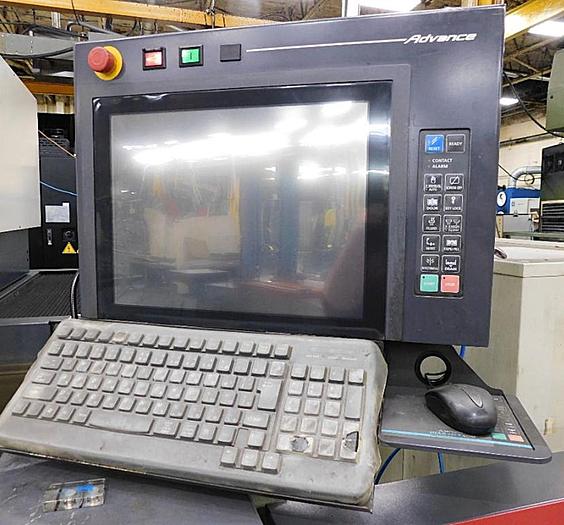

15" Toch Screen Control

3-D Advance

19.7 X-Axis Travel

13.8" Y-Axis Travel

11.8" Z-Axis Travel

3" U-Axis Travel

3" V-Axis Travel

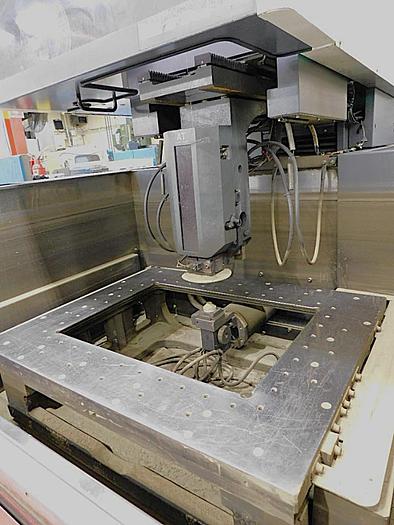

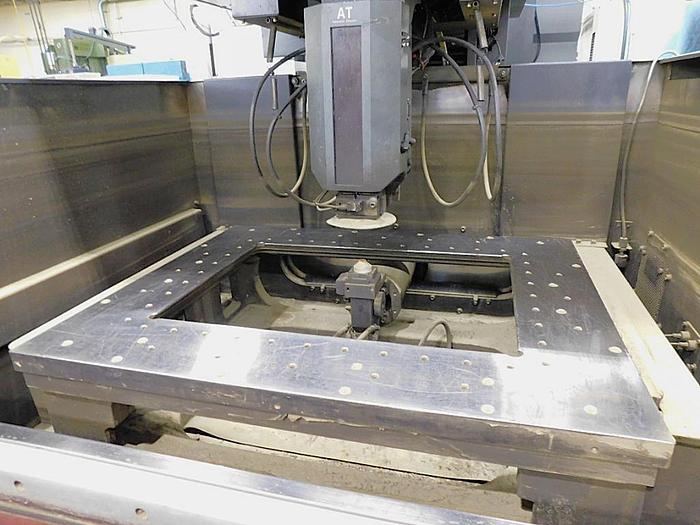

30.71" x 24.8" Table Dimensions

41.34" x 31.50" Inside Tank Dimensions

+3" Long Stroke Taper Unit

41.34" W x 31.5" D x 11.61" H Max Workpiece Dimensions

3,300 lbs. Max Workpiece Weight

15 degrees @ 10.25" Degree Tapering Cut

195 Gallons Tank Capacity

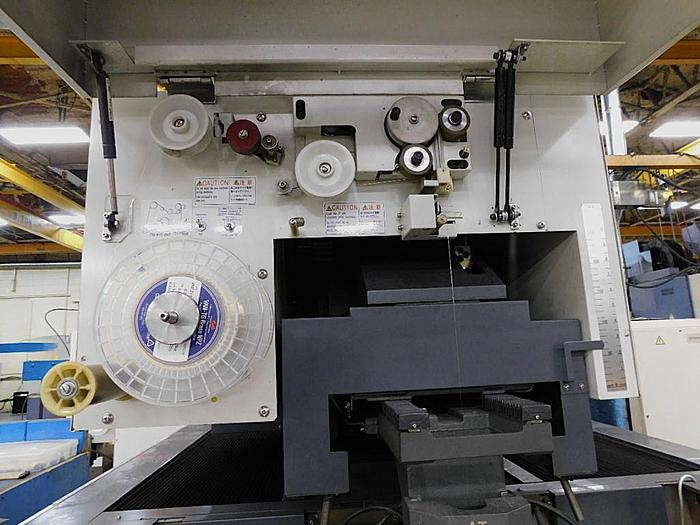

.004" - .006" Auto Threading Wire Diameter

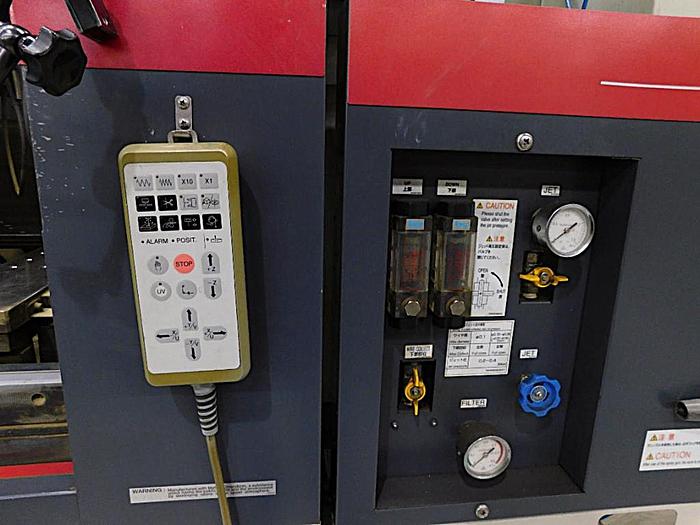

Remote Pendant Control

Fine Machining System

Tank Door Auto Lock

Wire Alignment Device

X /Y Linear Scales

Angle Master S / W

Precision Type 7/3 Micro Filter

Unit Cooler

Expandable Interface USB

Machining Adaptive Control

High Speed Anti Electrolysis Power Supply
